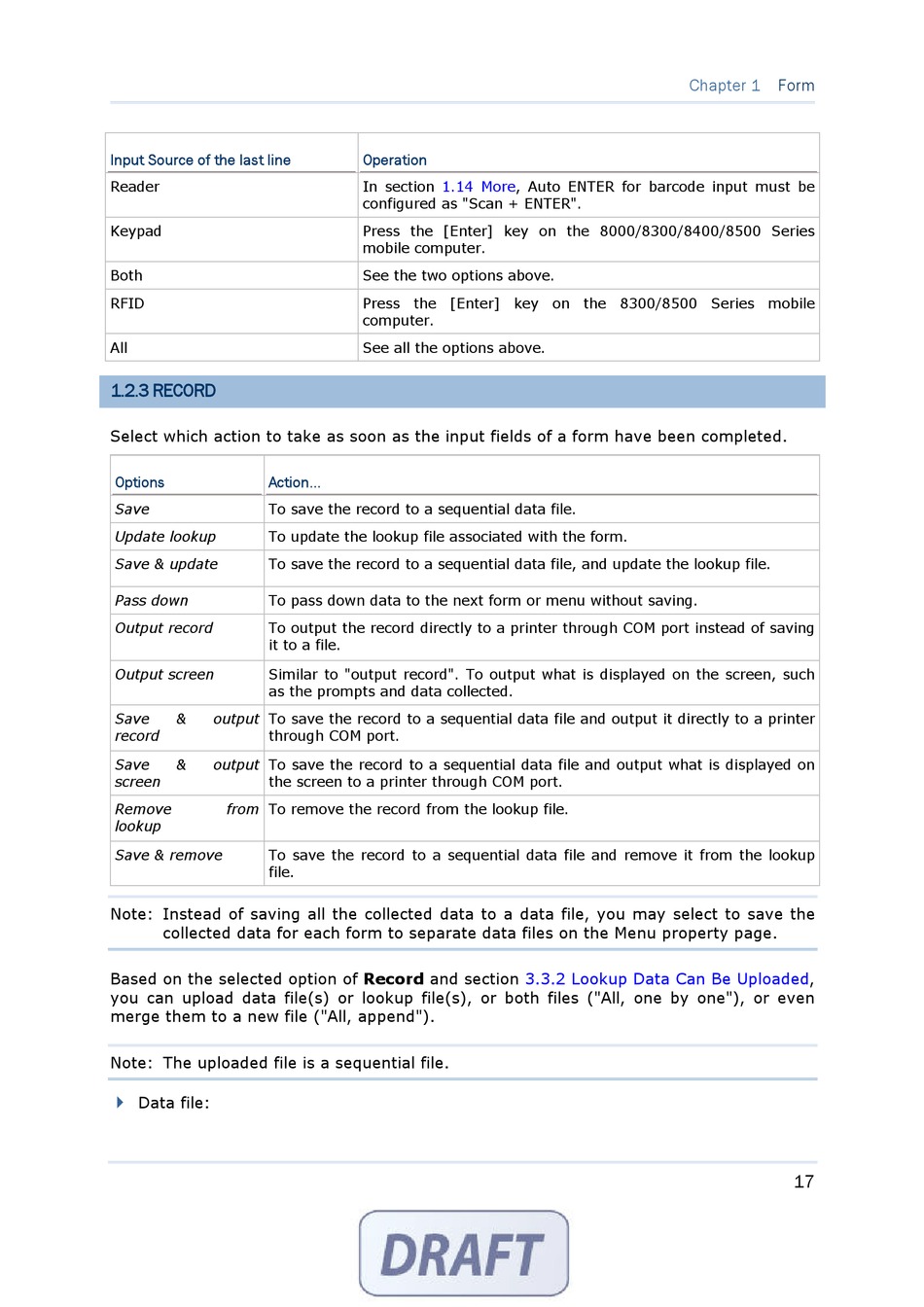

Record - CipherLab 8000 Series User Manual

Input Source of the last line
Reader
Keypad
Both
RFID
All

1.2.3 RECORD

Select which action to take as soon as the input fields of a form have been completed.
Options Action...
Save To save the record to a sequential data file.
Update lookup To update the lookup file associated with the form.
Save & update To save the record to a sequential data file, and update the lookup file.
Pass down To pass down data to the next form or menu without saving.
Output record To output the record directly to a printer through COM port instead of saving
it to a file.
Output screen Similar to "output record". To output what is displayed on the screen, such
as the prompts and data collected.
Save & output To save the record to a sequential data file and output it directly to a printer
record through COM port.
Save & output To save the record to a sequential data file and output what is displayed on
screen the screen to a printer through COM port.
Remove from To remove the record from the lookup file.
lookup
Save & remove To save the record to a sequential data file and remove it from the lookup
file.
Note: Instead of saving all the collected data to a data file, you may select to save the
collected data for each form to separate data files on the Menu property page.
Based on the selected option of Record and section
you can upload data file(s) or lookup file(s), or both files ("All, one by one"), or even
merge them to a new file ("All, append").
Note: The uploaded file is a sequential file.
Data file:
Operation
In section 1 .14 More, Auto ENTER for barcode input must be
2
configured as "Scan + ENTER".
Press the [Enter] key on the 8000/8300/8400/8500 Series
mobile computer.
See the two options above.
Press the [Enter] key on the 8300/8500 Series mobile
computer.
See all the options above.
3.3.2 Lookup Data Can Be
Chapter 1 Form
Uploaded,
17
