CipherLab 80x0/80x1 Series
Portable Terminals
Copyright © 2003 Syntech Information Co., Ltd.
SYNTECH INFORMATION CO., LTD.
Head Office: 8F, No.210, Ta-Tung Rd., Sec.3, Hsi-Chih, Taipei Hsien, Taiwan
Tel: +886-2-8647-1166
e-mail:
support@cipherlab.com.tw
User's Guide
Version 1.10
Fax: +886-2-8647-1100
http://www.cipherlab.com.tw
i
Advertisement
Table of Contents
Related Manuals for CipherLab 80 0 Series
Summary of Contents for CipherLab 80 0 Series
- Page 1 CipherLab 80x0/80x1 Series Portable Terminals User's Guide Version 1.10 Copyright © 2003 Syntech Information Co., Ltd. SYNTECH INFORMATION CO., LTD. Head Office: 8F, No.210, Ta-Tung Rd., Sec.3, Hsi-Chih, Taipei Hsien, Taiwan Tel: +886-2-8647-1166 Fax: +886-2-8647-1100 e-mail: http://www.cipherlab.com.tw support@cipherlab.com.tw...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........................ii Introduction ........................1 General Features and Characteristics ...............2 Electrical ........................2 Environmental ......................2 Physical ........................2 ..........................2 Memory ........................2 Reader ........................2 Display ........................3 Keypad ........................3 Indicator ........................3 2.10 Communication ......................3 2.11 Software ........................3 2.12 Accessories .......................3 Software Architecture ....................4 Kernel &... -
Page 3: Introduction

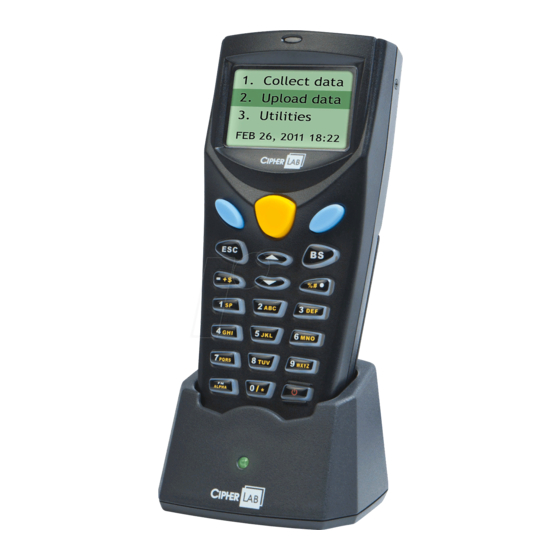

1. Introduction The 80x0/80x1 Series Portable Terminals are compact, high performance data terminals designed for all-day, everyday use. They are powered by either two AAA-size batteries or a rechargeable Li-ion battery pack. They are supported by a rich set of development tools, including a Windows-based application generator, “C” and “Basic”... -
Page 4: General Features And Characteristics
2. General Features and Characteristics Basic characteristics of the 80x0/80x1 Series Portable Terminals are listed below, 2.1 Electrical Operation battery (80x0 Series): two AAA-size batteries Operation battery (80x1 Series): Li-ion rechargeable battery Backup battery: 3.0V, 7mAH rechargeable Lithium battery for SRAM & calendar Working hour: over 100 hours 2.2 Environmental Operating Humidity: non-condensed 10% to 90%... -
Page 5: Display
Bell202 / FSK Sound Frequency: 1.2KHz ± 5%, 2.2KHz ± 5% Data Rate: 1200 bps 2.11 Software Operating System: CipherLab proprietary OS Programming Tools: “C” compiler, BASIC compiler and a Windows-based Application Generator 2.12 Accessories IR Communication Cradle Modem Cradle Charging &... -
Page 6: Software Architecture
3. Software Architecture The system software of 80x0/80x1 Series Portable Terminal consists of three modules: the kernel & Application Manager module, the System module and the Application module. 3.1 Kernel & Application Manager The kernel is the innermost core of the system. It has the highest security and is always protected by the system. -
Page 7: System
terminal to be cloned without going through a PC. 3.2 System The system module provides the following services: 1. Information The system information includes hardware version (H/W), serial number (S/N), manufacturing date (M/D), kernel version (KNL), C library (LIB) or BASIC run-time version (BAS), application program version (USR) and hardware configurations (DEV). - Page 8 Code 128 UPCE UPCE with ADDON 2 UPCE with ADDON 5 EAN8 EAN8 with ADDON 2 EAN8 with ADDON 5 EAN13 EAN13 with ADDON 2 EAN13 with ADDON 5 Other barcodes must be enabled through programming. 2. Buzzer To test the buzzer with different Frequency/Duration. Press ENTER key to start and then press any key to stop the test.
-
Page 9: Application
5. Echo Tests 6. Inquiry 3.3 Application The Application module runs on top of the System module. The 80x0/80x1 Series Portable Terminal is preloaded with the Application Generator’s run-time program and the following menu will be shown upon powering the unit up: For batch models (8000 / 8001 / 8020 / 8021): 1. -
Page 10: Operations
4. Operations Batteries must be fresh and properly loaded before start operation. Keyboard Operations The keypad of the 8000 Portable Data Terminal has 21 keys. The functions of some special keys are as follows: SCAN Scan a barcode. Press this button will trigger the scanner to read a barcode if the scanner port is enabled. -
Page 11: System Mode
4.3 System mode To enter the system menu, you need to press the 7, 9 and POWER keys simultaneously upon power up the terminal. For details of the services provided by the system, please refer to section 3.2. 4.4 Kernel mode To enter the kernel menu, you need to press 7, 9 and POWER keys simultaneously to enter the system menu first, then power off the unit and press 1, 7 and POWER key simultaneously. -
Page 12: Troubleshooting
5. Troubleshooting Does not power up after pressing POWER key. Make sure the batteries are loaded and check if the batteries are properly installed with battery cap firmly closed. If it doesn’t help, change the batteries and try again. Call for service if problem persists. Cannot transmit data or programs via the terminal’s communication port.
