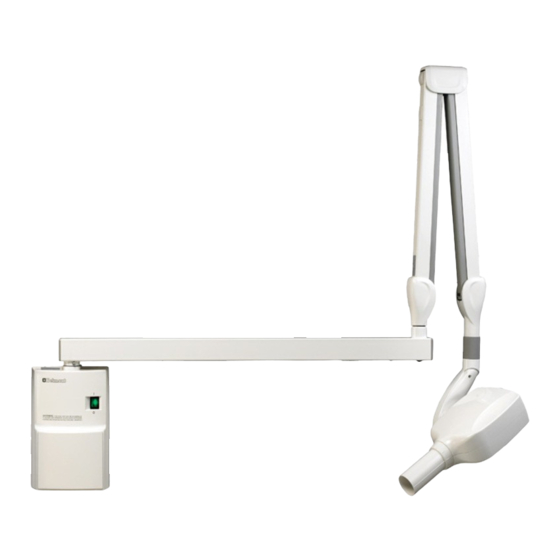

Belmont BELRAY II 097 Operator Instructions Manual
Dental x-ray
Hide thumbs
Also See for BELRAY II 097:
- Installation instructions manual (36 pages) ,
- Service manual (37 pages) ,
- Operator instructions manual (24 pages)
Subscribe to Our Youtube Channel
Related Manuals for Belmont BELRAY II 097
Summary of Contents for Belmont BELRAY II 097
- Page 1 MODEL 097 DENTAL X-RAY OPERATOR'S INSTRUCTIONS (for USA & Canada) WARNING This X-ray unit may be dangerous to patient and operator unless safe exposure factors, operating instructions and maintenance schedules are observed.
-
Page 2: Table Of Contents
INDEX PAGE [ 1 ] INTRODUCTION --------------------------------------------------- 1 [ 2 ] LAYOUT OF CONTROLS ----------------------------------------- 3 [ 3 ] FUNCTION OF CONTROLS -------------------------------------- 4 [ 4 ] OPERATING PROCEDURES ------------------------------------- 7 [ 5 ] ESTIMATED AIR KERMA --------------------------------------- 7 [ 6 ] OPTIONAL HAND EXPOSURE SWITCH --------------------- 7 [ 7 ] DIGITAL IMAGING SYSTEM ----------------------------------- 8 [ 8 ] DISINFECTION AND CLEANING ----------------------------- 8 [ 9 ] ERROR CODES ---------------------------------------------------- 9... -
Page 3: 1 ] Introduction
BELMONT BELRAY II MODEL 097 is classified as CLASS II Medical Device. 5-2. According to IEC60601-1, the BELMONT BELRAY II MODEL 097 is classified as follows. a. Protection against electric shock : Class I Equipment, Type B Applied Parts b. - Page 4 6. SYMBOL In this book, on the labels or on the control panel of the BELRAY II MODEL 097, following symbols are used. Confirm the meaning of each symbol. Consult written Protection Instructions in against electric ON (POWER) OFF (POWER)
-
Page 5: 2 ] Layout Of Controls
[ 2 ] LAYOUT OF CONTROLS 1 Main Power Switch 10 Cone Type Selection Switch 2 Ready Light 11 Film Speed Selection Switch 3 Exposure Time Adjusting Switch (Down) 12 Digital Imaging Switch 4 Exposure Time Adjusting Switch (Up) 13 4 mA Selction Switch 5 Tooth Selection Switch (T1) 14 7 mA Selection Switch 6 Tooth Selection Switch (T2) -
Page 6: 3 ] Function Of Controls
4 mA 7 20 0.25, 0.32, 0.40 .50, 0.63, 0.80, 1.00, 1.25, 1.60, 2.00, 2.50, 3.20 (sec) The BELRAY Including these two speeds, the BELRAY II Model 097 x-ray can provide 16 different film speeds (F.00 ~ F.15) and any two of them can be programmed for easy selection. If doctor uses a different film speed, or prefers darker (or lighter) radiographs, the new speed can be programmed as follows. - Page 7 2. Push F switch momentarily until the "a" light above the F switch illuminates. The exposure time display window shows the present film speed for "a" setting. (The factory default setting, F.09 should be displayed.) By depressing switch, increase or decrease film speed number until desired number for "a"...
- Page 8 TABLE 1. Speed Setting and Exposure Time (Regular Cone) [unit : sec.] Child Adult Large Adult Speed Setting 0.20 0.32 0.40 0.50 0.80 0.32 0.50 0.63 0.80 1.25 0.40 0.63 0.80 1.00 1.60 F.09 0.10 0.20 0.20 0.32 0.40 0.20 0.32 0.40 0.50...
-
Page 9: 4 ] Operating Procedures
NOTE : The ready light will not illuminate unless the incoming line voltage is correct and within the x-ray's operable range (108 ~ 132V AC). NOTE : To manually set the exposure time, depress either of the Manual Exposure Time exposures when the unit is not in and Cone type... -
Page 10: 7 ] Digital Imaging System
BERAY BELRAY WARNING the BELRAY CAUTION... -
Page 11: 9 ] Error Codes
[ 9 ] ERROR CODES If an abnormal condition exists in the unit, or a malfunction occurs, an error code is displayed in the Exposure Time Display Window 16 . Please refer to the Table below. Error Condition Possible Solution Step to be Taken Code All the tooth selection... -
Page 12: 10 ] Maintenance
Error Condition Possible Solution Step to be Taken Code Turn off the main power switch and wait for Contact customer Failure of electrical communication between approximately 2 min. E.22 service the power PCB and timer PCB. Turn on the main power switch again. Do not turn on the Any switch on the sub controller is depressed Release all the E.23 when the main power switch is turned on. power while other switches (Except the exposure switch) switch is depressed. -
Page 13: 12 ] Technical Data
[12] TECHNICAL DATA 1. X-ray tube ..............Toshiba D-0712 (Stationary Anode) a. Nominal focal spot value .......... 0.7 (IEC60366) b. Target material ............ Tungsten c. Target angle ............... 16° d. Maximum anode heat content ........4.3kJ (6kHU) 2. Maximum x-ray tube assembly heat content .... 1 50kJ (210kHU) 3. -
Page 14: 13 ] Electromagnetic Compatibility (Emc)
[ 13 ] ELECTROMAGNETIC COMPATIBILITY (EMC) This product conforms to EMC standard IEC60601-1-2:2014. 1. Caution to EMC and Compliance with information in attached document Medical electrical equipment requires special attention to EMC and it must be installed and used according to the EMC information provided in this instruction manual. - Page 15 EN 60601 Electromagnetic Immunity test Compliance level test level environment - dips dips Mains power quality should be that 0 %Ut: 0.5 cycle 0 %Ut: 0.5 cycle of a typical commercial or hospital (0,45,90,135,180,225,270 (0,45,90,135,180,225,270 environment.
- Page 16 BELMONT EQUIPMENT, Division of Takara Belmont, USA, Inc. 101 Belmont Drive Somerset, New Jersey 08873 U.S.A. TEL.:(732) 469-5000 / (800) 223-1192 Fax.:(732) 526-6322 / (800) 280-7504 www.belmontequip.com TAKARA COMPANY, CANADA, LTD. 2455 Meadowvale Boulevard, Mississauga, Ontario, L5N 5S2, Canada TEL.:(905) 816-8965 Fax.:(905) 816-8999...
