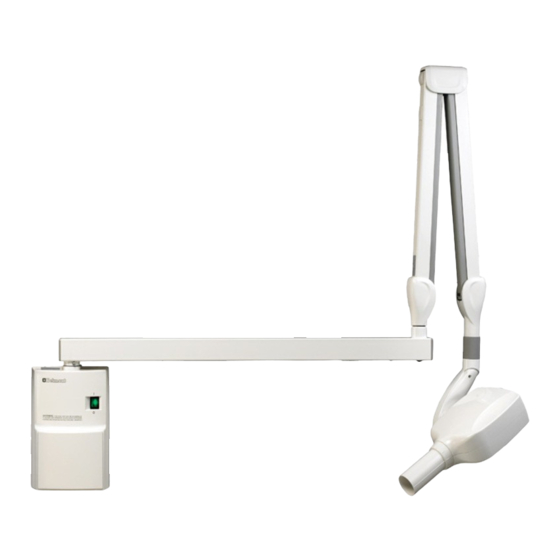

Belmont BELRAY II 097 Service Manual
  1. Manuals
  2. Brands
  3. Belmont Manuals
  4. Dental equipment
  5. BELRAY II 097
  6. Service manual

Belmont BELRAY II 097 Service Manual

Dental x-ray
Hide thumbs Also See for BELRAY II 097:
Table of Contents

Advertisement

Quick Links

MODEL 097

DENTAL X-RAY
SERVICE
MANUAL

(for USA & CANADA)
Ver. 1.1


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BELRAY II 097 and is the answer not in the manual?

Questions and answers

Related Manuals for Belmont BELRAY II 097

Summary of Contents for Belmont BELRAY II 097

  • Page 1 MODEL 097   DENTAL X-RAY  SERVICE MANUAL   (for USA & CANADA) Ver. 1.1  ...
  • Page 3 INDEX SECTION 1 : TECHNICAL DATA page [1] ELECTRICAL AND RADIATION DATA ･･････････････････････････････････････2 [2] PHYSICAL DIMENSIONS ･･････････････････････････････････････････････････3 [3] TUBE HEAD THERMAL CHARACTERISTICS ････････････････････････････････4 SECTION 2 : OPERATION INSTRUCTION [1] LAYOUT OF CONTROL BOX ･･････････････････････････････････････････････5 [2] FUNCTION OF CONTROLS ････････････････････････････････････････････････6 [3] OPERATING PROCEDURES ･･･････････････････････････････････････････8 [4] OPTIONAL HAND EXPOSURE SWITCH ･･････････････････････････････････････8 [5] ALTERATION OF SETTING ･･･････････････････････････････････････････････9...

  • Page 4: Section 1 : Technical Data [ 1 ] Electrical And Radiation Data

    SECTION 1 : TECHNICAL DATA [ 1 ] ELECTRICAL AND RADIATION DATA 1. X-ray tube ..............Toshiba D-0712 (Stationary Anode) a. Focal spot ..............0.7 mm b. Target material ............ Tungsten c. Target angle ............... 16° d. Maximum anode heat content ........4.3kJ (6kHU) 2. Maximum x-ray tube assembly heat content .... 1 50kJ (210kHU) 3. Rated peak tube potential .......... 70 kVp 4. Rated tube current ............4 mA / 7 mA selectable 5. Maximum rated peak tube potential ...... 70 kVp 6. Rated line voltage ............ 120 V AC, 60Hz , Single Phase, 12 VA (Long term rating) 0.8 kVA (Momentary rating) 7. Line voltage range ............ 108 V AC ~ 132 V AC 8. Range of line voltage regulation ........0 ~ 3 % 9. Rated line current............6.5 A at 70 kVp, 7 mA 10. Maximum line current ..........7.2 A at 70 kVp, 7 mA 11. Exposure time .............. 0.02 ~ 3.2 sec.(ON and OFF are zero crossed) 12. Inherent filtration ............1.7 mm Al Equivalent 13.
  • Page 5 [ 2 ] PHYSICAL DIMENSIONS 220° ( ) =mm 5-5/8"(142) 600° 2-1/4" 3-3/16" (58) (80) 31-1/2" (800) Max. 46-7/8" (1190) Stroke 43-5/16" (1100) Location for Wires 300° MAX 73-1/8" (1857) Cabinet Frame 6-3/16" (157) 7-15/16" (226) 38-5/16" (973) 39-3/16" (995) 10-1/4"...
  • Page 6 [ 3 ] TUBE HEAD THERMAL CHARACTERISTICS A. Interval between each exposure The temperature inside of the tube head rises when an exposure is made. The value of the heat generated is measured in Heat Units (HU), which is the product of tube potential, tube current and exposure time.

  • Page 7: Section 2 : Operation Instructions

    SECTION 2 : OPERATION INSTRUCTIONS [ 1 ] LAYOUT OF CONTROLLERS Fig.2 Major Components and Control Identification (1) Main Power Switch (10) Cone Type Selection Switch (2) Ready Light (11) Film Speed Selection Switch (3) Exposure Time Adjusting Switch (Down) (12) Digital Imaging Switch (4) Exposure Time Adjusting Switch (Up) (13) 4mA Selection Switch (5) Tooth Selection Switch (T1) (14) 7mA Selection Switch (6) Tooth Selection Switch (T2)
  • Page 8 [ 2 ] FUNCTION OF CONTROLS (1) Main Power Switch Pushing the upper side of this switch to the ON position energizes the x-ray unit. (Ready light and pre-select light for cone type, film or digital, mA, and patient size illuminate.) It is recommended to keep this switch OFF when the unit is not in use, in order to prevent an accidental exposure. IMPORTANT : To prevent the risk of an accidental exposure, push the lower side of this switch to the OFF position, when the unit is not in use.
  • Page 9 TABLE 1. Speed Setting and Exposure Time (Regular Cone) [unit : sec.] Child Adult Speed Obese Setting 0.20 0.32 0.40 0.50 0.80 0.32 0.50 0.63 0.80 1.25 0.40 0.63 0.80 1.00 1.60 F.09 0.10 0.20 0.20 0.32 0.40 0.20 0.32 0.40 0.50 0.63...
  • Page 10 [ 3 ] OPERATING PROCEDURES 1. Turn ON the Main Power Switch (1). 2. Confirm that Ready Light (2) is illuminated. NOTE : The ready light will not illuminate unless the incoming line voltage is correct and within the x-ray’s operable range (108 ~ 132VAC.). 3. Select the appropriate tooth type (5) ~ (9), and confirm the pre-selected conditions (cone type, film or digital, mA and patient size) are suitable for exposure.

  • Page 11: Film Speed

    [ 5 ] ALTERATION OF SETTINGS ( 1 ) SPEED SETTING FOR FILM AND DIGITAL IMAGING A. FILM SPEED Prior to shipment of the x-ray from the factory, the following two film speeds are programmed to be selected by the Film Speed Selection Switch. a = Film speed F.09 (equivalent to ISO speed group "D", or Kodak Ultra-speed Film) b = Film speed F.04 (equivalent to ISO speed group "F/E", or Kodak InSight Film) In addition to these two speeds, BELRAY II MODEL 097 x-ray can provide 16 different film speeds (F.00 ~ F.15) and any two of them can be programmed for easy selection. If the doctor...
  • Page 12 Table 3. Film number and exposure time in film mode (at 7mA with regular cone) (Unit : Sec.) patient Child Adult Obese teeth F.00 0.02 0.04 0.04 0.06 0.08 0.04 0.06 0.08 0.10 0.13 0.04 0.08 0.08 0.13 0.16 F.01 0.03 0.04 0.05 0.08 0.10 0.04 0.08 0.08 0.10 0.16...
  • Page 13 Table 5. Film number and exposure time in film mode (at 7mA with long cone) (Unit : Sec.) patient Child Adult Obese teeth F.00 0.05 0.08 0.10 0.13 0.20 0.08 0.13 0.16 0.20 0.32 0.10 0.16 0.20 0.25 0.40 F.01 0.06 0.10 0.10 0.16 0.20 0.10 0.16 0.20 0.25 0.32...
  • Page 14 Table 7. Sensor sensitivity number and exposure time in digital mode (at 7mA with regular cone) patient Child Adult Obese teeth d.00 0.02 0.02 0.03 0.04 0.02 0.03 0.04 0.05 0.06 0.02 0.04 0.04 0.06 0.08 d.01 0.02 0.03 0.04 0.05 0.02 0.04 0.04 0.06 0.08 0.03 0.04 0.05 0.08 0.10...
  • Page 15 Table 9. Sensor sensitivity number and exposure time in digital mode (at 7mA with long cone) patient Child Adult Obese teeth d.00 0.02 0.04 0.05 0.06 0.10 0.04 0.06 0.08 0.10 0.16 0.05 0.08 0.10 0.13 0.20 d.01 0.03 0.05 0.06 0.08 0.10 0.05 0.08 0.10 0.13 0.16 0.06 0.10 0.10 0.16...

  • Page 16: Section 3 : Description For Functions

    SECTION 3 : DESCRIPTION FOR FUNCTIONS   [1] GENERAL The Belmont Belray II model 097 is advanced 70 kVp intra-oral x-ray machine consisting of four major components: tube head, balance arm, main controller and sub controller. Because of its modular design, sub controller can be readily remotely located to accommodate room design and radiation control requirements.

  • Page 17: Automatic Voltage Regulator

    [2] AUTOMATIC VOLTAGE REGULATOR 1. Model 097 is equipped with the automatic voltage regulator (AVR) in the control box. Purpose for this function is as follows. a. As the line voltage fluctuation (including voltage drop during exposure) is absorbed, stabilized voltage is supplied to the high voltage transformer and filament transformer.

  • Page 18: Overcurrent Protection

    [4] PRIMARY CIRCUIT OF FILAMENT TRANSFORMER   (1) CIRCUIT AND OPERATIONAL TIMING 1. Parallel circuit of resistor and transistor is added in series to the AVR circuit and applied to the primary circuit of filament transformer. 2. As Triac is not inserted in this circuit, voltage is applied to the filament transformer if the relay mentioned above turns on.

  • Page 19: Section 4 : Adjustment

    SECTION 4 : ADJUSTMENT [1] AVR VOLTAGE Output voltage of Automatic Voltage Regulator circuit can be measured and adjusted as follows. If AVR voltage has been adjusted, tube current must be adjusted after that. 1. Prepare a digital multimeter capable to measure 100 Vac with 1 % or more accuracy. 2.
  • Page 20 Alternative method to adjust AVR voltage Adjusting method of AVR voltage on page 18 requires the tube head to be connected. If by any reason AVR voltage should be adjusted without head, following method can be used. In this method the reference voltage for AVR circuit is adjusted. 1.
  • Page 21 [2] INSPECTION OF TUBE CURRENT Model 097 has two types of self measuring function for tube current, i.e., auto mode manual mode. Tube current can also be measured directly by multimeter. In auto mode, both tube current at the beginning and stabilized period of exposure are checked and adjusted automatically, although the values of tube current are not displayed.
  • Page 22 c. Direct measurement 1. Prepare a multimeter capable to measure 5 Vdc with 1% accuracy within 1 second. 2. Turn off the main switch. 3. Open the front panel of main controller. 4. Set to the suitable range of multimeter to measure 5Vdc. 5.
  • Page 23 3. Keep depressing P (patient), C (cone), F (film) button until "e.XX" is displayed on the exposure time window. 4. Select the tube current that should be adjusted. 5. Press T2 switch then display changes to "e.XX". XX is the value presently memorized. 6.

  • Page 24: Section 5 : Periodic Inspection And Adjustment

    SECTION 5 : PERIODIC INSPECTION AND ADJUSTMENT Following inspections and adjustments should be performed after installation, when parts are changed, and once a year by a trained service technician to ensure that the x-ray unit is functioning with the manufacturer's specifications and remains in compliance with the standard. [1] ELECTRICAL INSPECTION AND ADJUSTMENT (1) POWER SUPPLY VOLTAGE Power supply voltage must be within the operable range...

  • Page 25: Mechanical Inspection

    [2] MECHANICAL INSPECTION (1) ARM ASSEMBLY 1. Incorrect leveling of the wall plate and wall bracket can cause arm drift. First, check leveling with horizontal arm in position #1. (FIGURE 5) If not correct, bracket must be adjusted by placing shims behind the wall plate.

  • Page 26: Section 6 : Error Code

    SECTION 6 : ERROR CODE When abnormal condition exists in the unit, or malfunction occurs, error code is displayed in exposure time display window. Possible causes, check points and solutions for each error code are described below. CODE MEANING POSSIBLE CAUSE CHECK POINT SOLUTION Exposure switch is released...
  • Page 27 CODE MEANING POSSIBLE CAUSE CHECK POINT SOLUTION E.04 Excess line current during a. Tube head is internally shorted. Disconnect the tube head and make If E.07 comes, the tube head may exposure. an exposure. be defective. Change the tube head. b.
  • Page 28 CODE MEANING POSSIBLE CAUSE CHECK POINT SOLUTION E.08 Tube current during a. AVR voltage is too high. Refer to CHECK POINT of E.05 Refer to SOLUTION of E.05 exposure is more than b. Cables between the control box Check each cables for continuity and Correct the cable.

  • Page 29: Section 7 : Trouble Shooting

    SECTION 7 : TROUBLE SHOOTING Error code is displayed in the exposure time display window for most troubles in daily usage. So the error code table in section 6 can be used as trouble shooting chart in most case. Some troubles that don't make error code displayed are listed in the following table with their possible causes, check points and solutions.

  • Page 30: Section 8 : Replacement Of Component

    SECTION 8 : REPLACEMENT OF COMPONENT [1] CONTROL BOX (1) POWER GENERATING PCB 1. If one or more results of verification checks are out of specification or trouble shooting chart indicates, power generating PCB should be replaced. 2. Since power MOS FETs and C-MOS micro computer chips are used, great care should be paid against electrostatic discharge (ESD).

  • Page 31: Section 9 : Circuit Diagram

    SECTION 9 : CIRCUIT DIAGRAM -29-...

  • Page 32: Section 10 : Parts Identification [ 1 ] Arm And Head Assembly

    SECTION 10 : PARTS IDENTIFICATION [ 1 ] ARM AND HEAD ASSEMBLY 10 (OPTION) Mats ID.No. Parts No. Description ID.No. Parts No. Description 1P01CBA0 X-RAY Head Assembly ECPE19F0 Left Cover for Joint No.3 Right Cover for Joint No.3 ECPE24C0 ECPE18F0 Yoke Inside Cover Joint No.3 1A037UA0...
  • Page 33 [ 2 ] CONTROLLER ASSEMBLY OPTION Mats Mats Mats Mats ID.No. Parts No. Description ID.No. Parts No. Description 1A04BYA0 Wall Plate --------- Stopper Screw(M6) ECPE34A0 Arm Mounting Bracket --------- Screw for Chassis(M4×10) 1A0389A0 Chassis ECNR24A0 Hole plug for End Cap 1A03Z6A0 Power PC Board ---------...
  • Page 34 NOTE...
  • Page 35 NOTE...
  • Page 36 BELMONT EQUIPMENT, Division of Takara Belmont, USA, Inc. 101 Belmont Drive Somerset, New Jersey 08873 U.S.A. TEL.:(732) 469-5000 / (800) 223-1192 Fax.:(732)356-1035 / (800) 280-7504 www.belmontequip.com TAKARA CO, CANADA LTD. 2076 S. Sheridan Way, Mississauga, Ont., L5J2M4, Can. TEL.:(905) 822-2755 Fax.:(905)822-6203...
