Introduction Dear users, Thanks for choose PEANUT Disinfection Robot. Before using your robot, please read this manual carefully and follow the instructions herein to gradually understand and use your PEANUT robot. @ Keenon Robotics...
Introduction to the Product Manual This manual mainly describes the functional characteristics, methods of installation and use of PEANUT Disinfection Robot, and matter that needs attention when using the robot. The manual includes the following contents: 1. About Robot: Give a short description on the basic functional characteristics of the robot and show the structure of the robot in detail.
Table of Contents PEANUT Disinfection Robot.......................1 Statement.............................. 1 Introduction............................2 Introduction to the Product Manual..................... 3 About Robots (Understand Robots)..................... 6 Main Structure of Robot........................6 Operating steps (Use robot)........................8 Installation............................ 8 Power on............................8 Charging............................. 11 Filling Disinfectant........................12 Description on state of indicator light..................12 Emergency treatment........................13...
Page 6

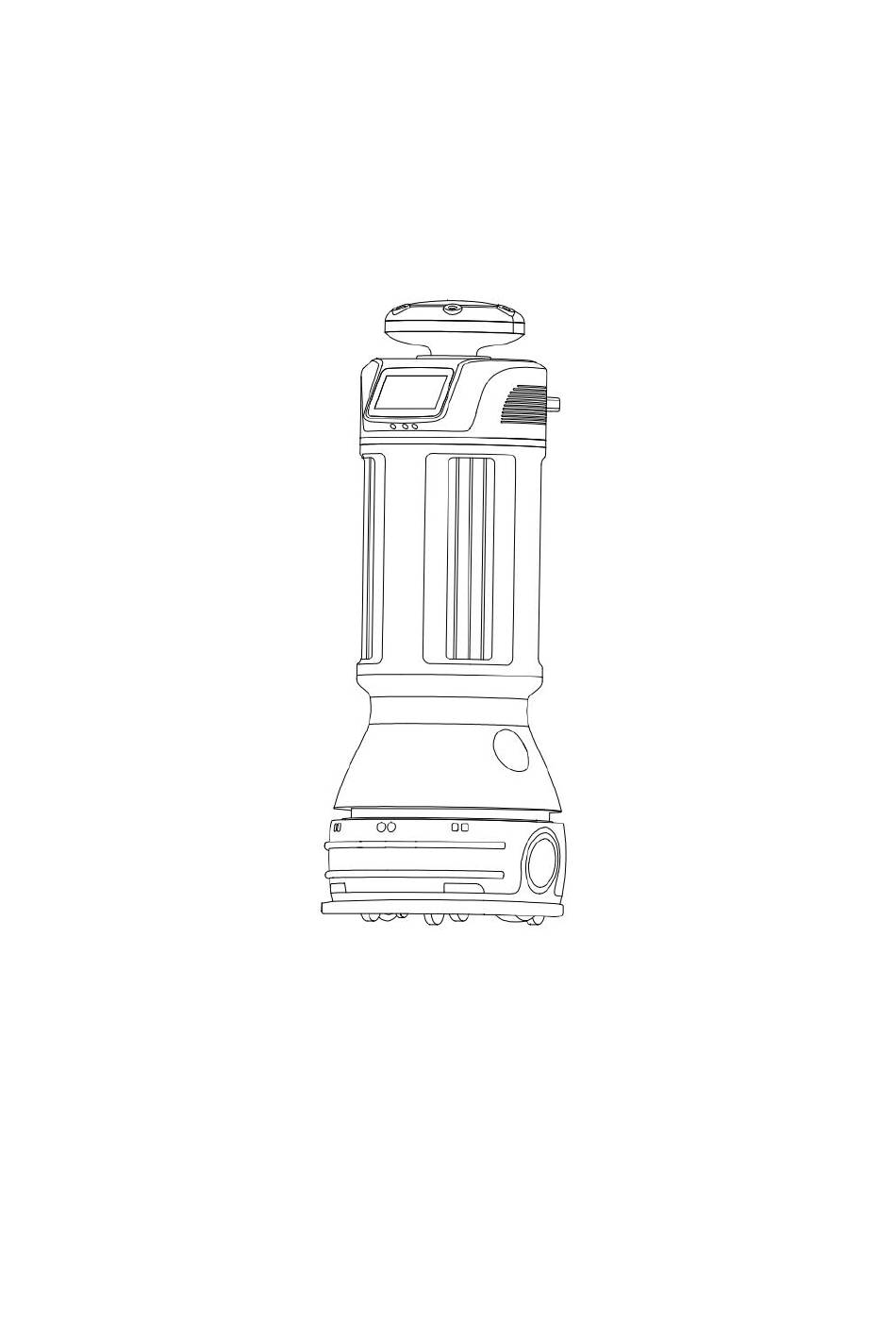

Front view Side view Rear view Fig. 1 Structure diagram of PEANUT Disinfection Robot Note: The above figure is for reference only. The appearance and color of specific products shall be subject to the actual products.
The product described herein is Disinfection Service Robot Model No. M2. Main Structure of Robot Fig. 1 shows the main structure of PEANUT Disinfection Robot. The robot chassis has a structure of two driving wheels and four driven wheels. Autonomous positioning is made through machine vision and laser radar.
Page 8
Fig. 2 Structure diagram of charging port...
Operating steps (Use robot) Please follow the following steps to operate your robot. Installation 1. Robot mapping Before moving, the robot needs to check the surrounding environment. It stores and identifies its operating environment in the form of a map. This step is called mapping. (Such step is completed by professional and technical personnel without user's operation) In case of significant changes in the indoor operation environment of the robot (such as redecorating, moving the robot to a new place for operation, or rearranging indoor items), please...
Page 10
Fig. 3 Schematic diagram of power switch position 2. Instructions for Use of Disinfection Robot APP 2.1 Introduction of functions The basic disinfection process is as follows: First, the user selects the disinfection mode. Second, the user selects the route to destination or moving point. Next, the robot will go to each destination one by one after departure;...
Page 11
Under the fixed-point mode, the user may select one or more routes (maximum 4 routes for the current version). Please press on the power switch to start the robot; when reaching the destination room, the robot will send a voice prompt. Then, it operates ultraviolet disinfection while sending a voice prompt every 2 minutes until the pre-set disinfection time is over.
Among these settings, the number of cycles for spraying disinfection: only available under on-the- way mode. It refers to the number of cycles for spraying disinfection by the robot on the given route. Users can set 1-5 times, or unlimited times for the number of cycles; Intensity level of spraying: refers to the speed of spraying of robot when spraying operation is started under the on-the-way mode and dual mode.
Filling Disinfectant The user should fill the robot with disinfectant if the robot indicates that the liquid level is too low. The filling port is located at the rear side of the machine body. Lift the silicone cover, press the blue knob, and then rotate counterclockwise to open the cover, as shown in fig.
Emergency treatment When the robot is moving, if the user needs to push and move the robot by hand, or the robot is in abnormal operation that may cause damage to the surrounding environment, other emergency event occurs, the user can stop the robot by pressing the red emergency stop button on the top of the robot. The position of the emergency stop button and how to operate the button are shown in fig.
Handling robot Robots are expensive equipment. Please strictly follow the instructions bellow when moving robots manually. As shown in fig. 6, the upper part of the robot laser layer gap (the surface indicated by the arrow) is the force-bearing part, through which you can lift the robot. Please hold the upper part of the laser layer with your hands when handling.
Appendix List of Exception and Troubleshooting Failure Problems Possible Causes and Solutions to the Problems The user cannot turn on the 1. The robot suffers electricity shortage; please energize the robot robot to charge through the adapter. 2. For other causes, please contact customer service personnel. Failure to charge normally.
Safety instructions Use restrictions: As a wheeled robot, the product shall only operate in indoor environment with flat ground (smooth ground; slope: < 5°; protrusion height: ≤ 1cm). Do not operate the robot in outdoor environment (such as open balcony) or rugged ground (such as stairs). Do not operate the robot in a suspended environment (e.g.
Page 19
Battery and charging: Do not use any battery or power adapter form the third party. Do not disassemble, repair or refit batteries or charging ports without permission. Do not place the charging port near the heat source (such as radiator, etc.). Do not wipe or clean the charging port contact piece with wet cloth or wet hands.
Certificate for "Three Guarantees" We provide the following after-sales three guarantees services for the product in strict accordance with "The Law of the People's Republic of China on the Protection of Consumer Rights and Interests" and "Product Quality Law of the People's Republic of China": Warranty period: 1.
Page 21
售后微信公众号:擎朗机器人技术支持中心 官网:http:/ /www.keenon.com Keenon Robotics Co., Ltd. 400-9651-808 pr@keenon.com 11/F, Bldg 56, City of Elite, No.1000, Jinhai Rd., Pudong New Area, Shanghai WeChat Subscription Number: Keenon WeChat Subscription Number for After-sale service: Keenon Robotics Technical Support Center Website: http:/ /www.keenon.com...
