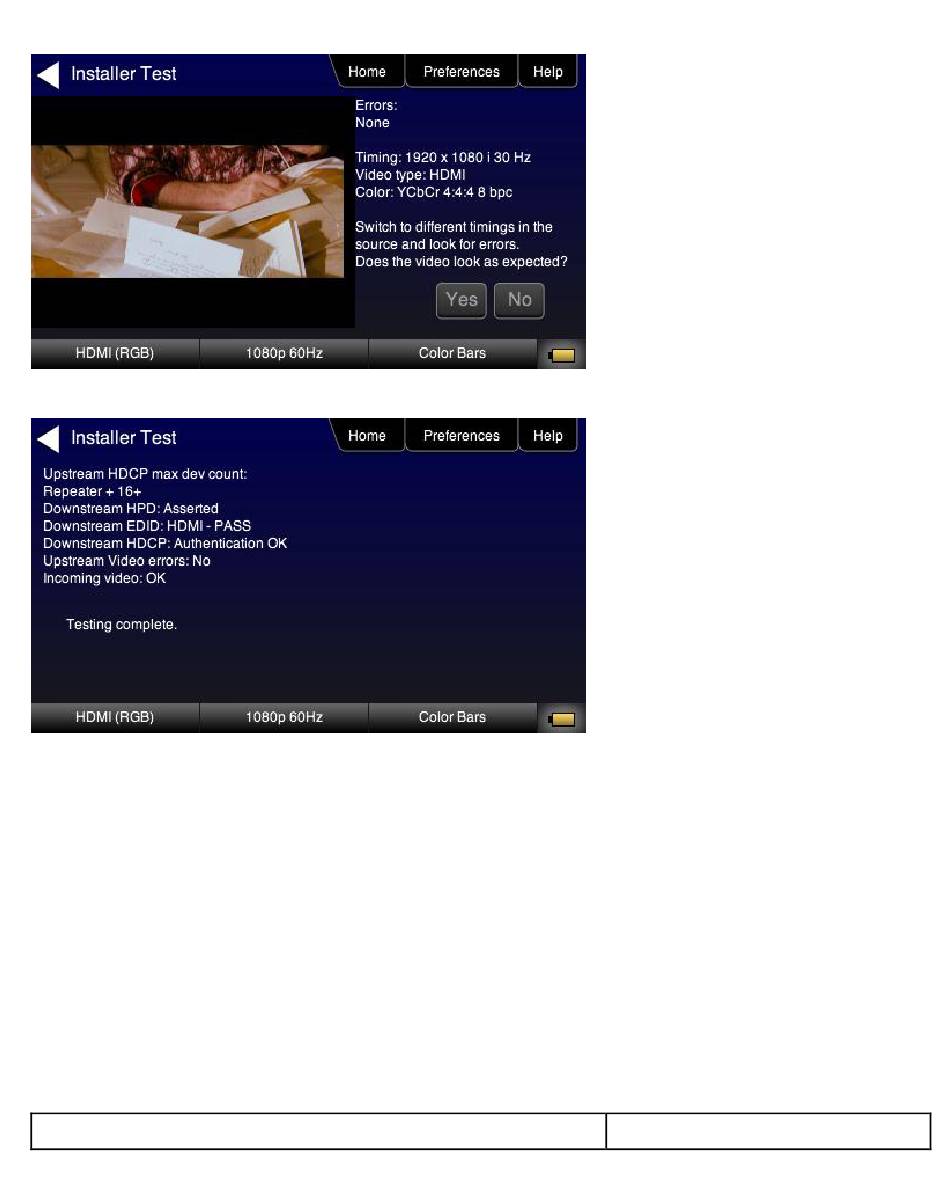

The results are presented for each timing (video resolution) tested. The following screen is a sample of these results.
7.4 Diagnosing HDMI Interoperability Problems in an HDMI Network
This subsection describes how to diagnose HDMI interoperability problems in an HDMI network (Link Test).
7.4.1 Connection Configurations for Testing HDMI Links
The 780's HDMI input port acts as a ―reference‖ HDMI source and sink device simultaneously. Therefore it enables you
to emulate both a known good HDMI source and sink device to conduct diagnostics on a source devices upstream and
sink devices downstream simultaneously. The following illustration shows the typical configuration.
