780 Handheld Test Instrument

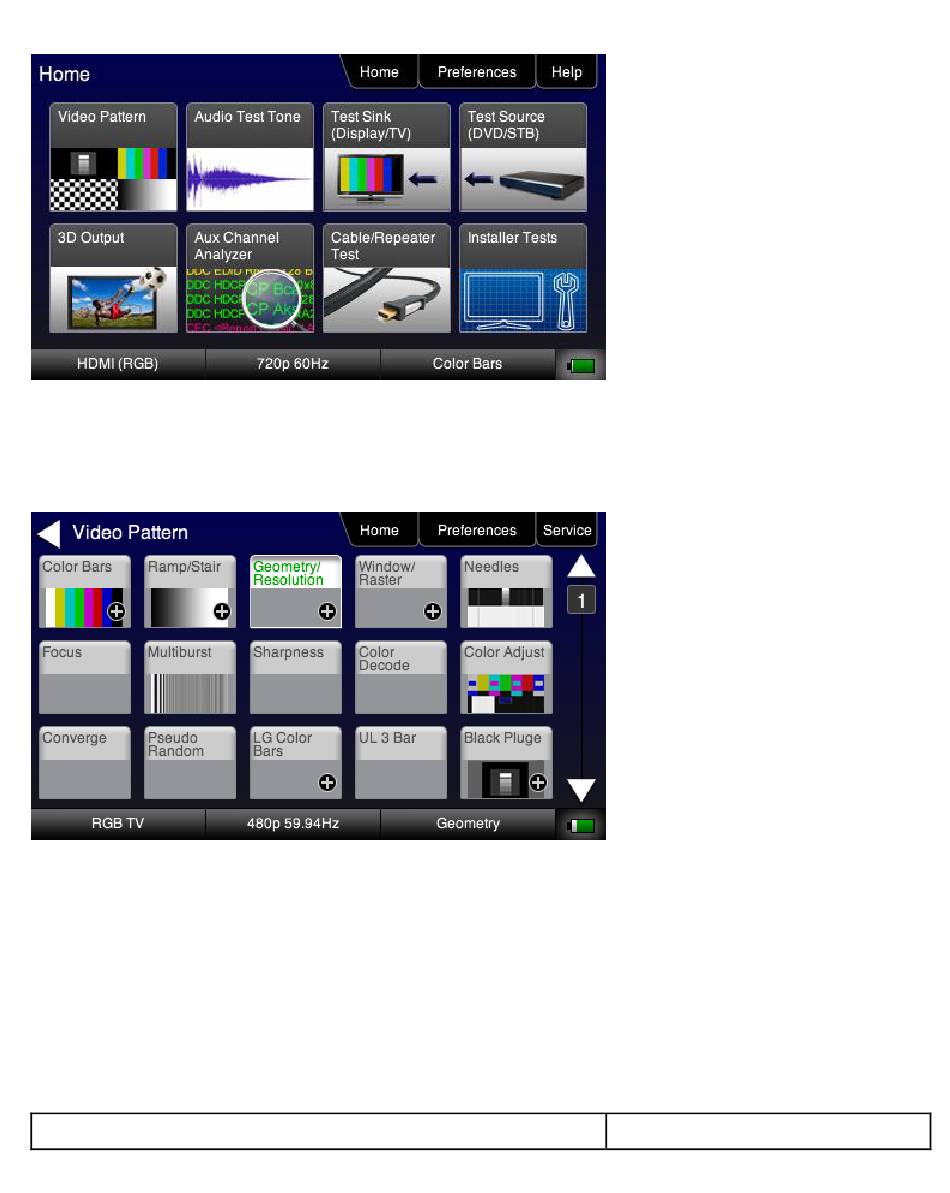

2. Touch select the desired test pattern from the menu shown below. You can select patterns that are standard with
the 780 or bitmaps that you have imported.
Note: A ―+‖ on the lower right portion of the pattern indicates that there are options related to the specific pattern. In
these cases you double touch select to access the lower level menu.
3. (If applicable) Specify the test pattern options.
4.4 Rendering 3D Test Patterns on an HDTV
This subsection describes how to render 3D test patterns and 3D bitmaps on an HDTV. The 780 supports Side-by-Side,
Top-and-Bottom and Frame Packing (for both interlaced and progressive timings) 3D format structures.
4.4.1 Configurations for Rendering 3D Bitmaps on an HDMI Sink Device
Typically you will render 3D bitmap images with the 780 directly connected to an HDTV. This configuration is shown
below:
