780 Handheld Test Instrument
4.7.2 Procedures for Testing a Display with Dolby Digital or DTS Audio Test
Patterns
Use the following procedures to run audio tests using Dolby Digital and or DTS audio test patterns. These test patterns
are useful for calibrating the room acoustics in a home theatre system.

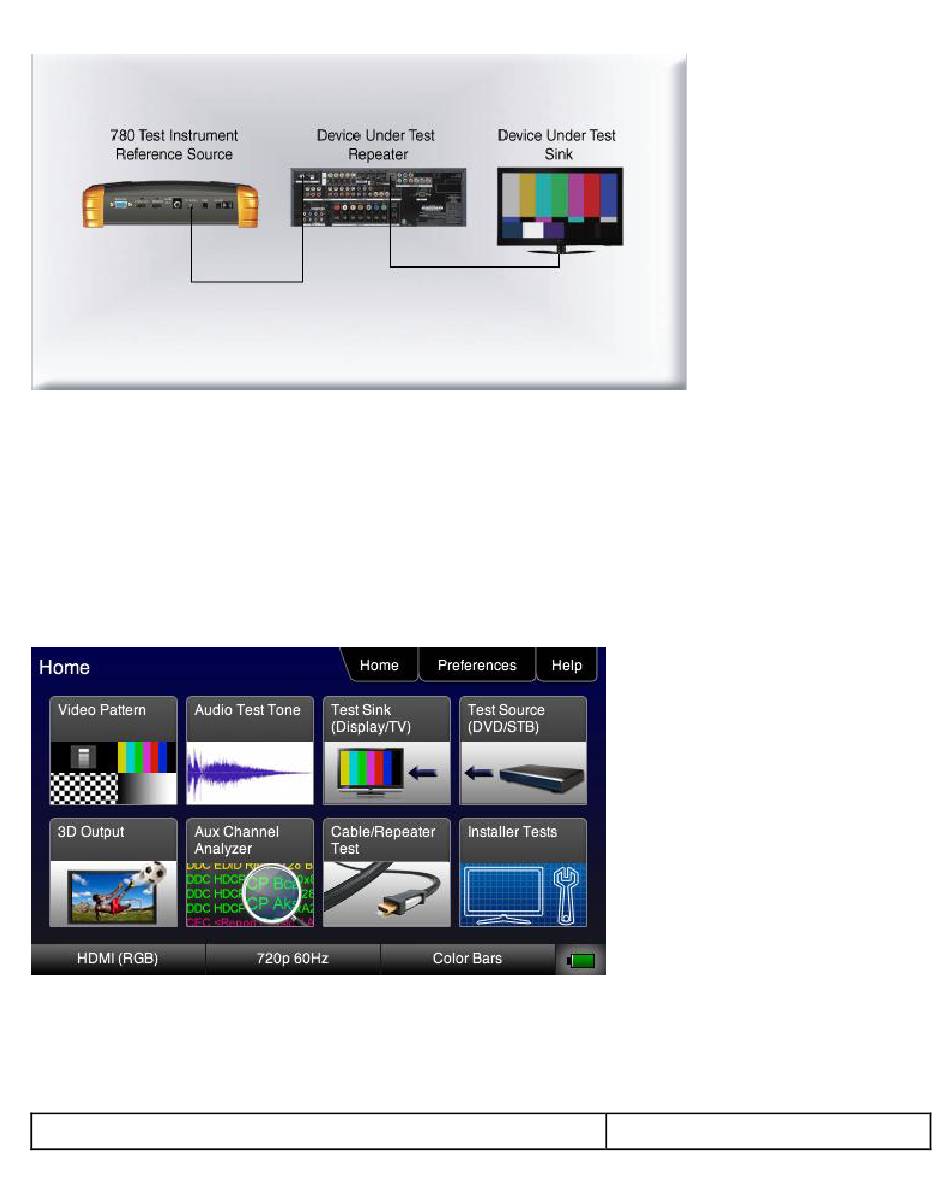

1. Make the physical connections between the 780 and the audio rendering device as described in the procedures
above.
2. From the top level menu (shown in the figure below), select Audio Test Tone.
The Audio Pattern (Test Tone) menu appears as shown below:
