7.2 Diagnosing HDMI Interoperability Problems at the Sink - Downstream
This subsection describes how to diagnose HDMI interoperability problems on HDMI source devices—downstream (Sink
Test).
7.2.1 Connection Configurations for Testing HDMI Sink Devices

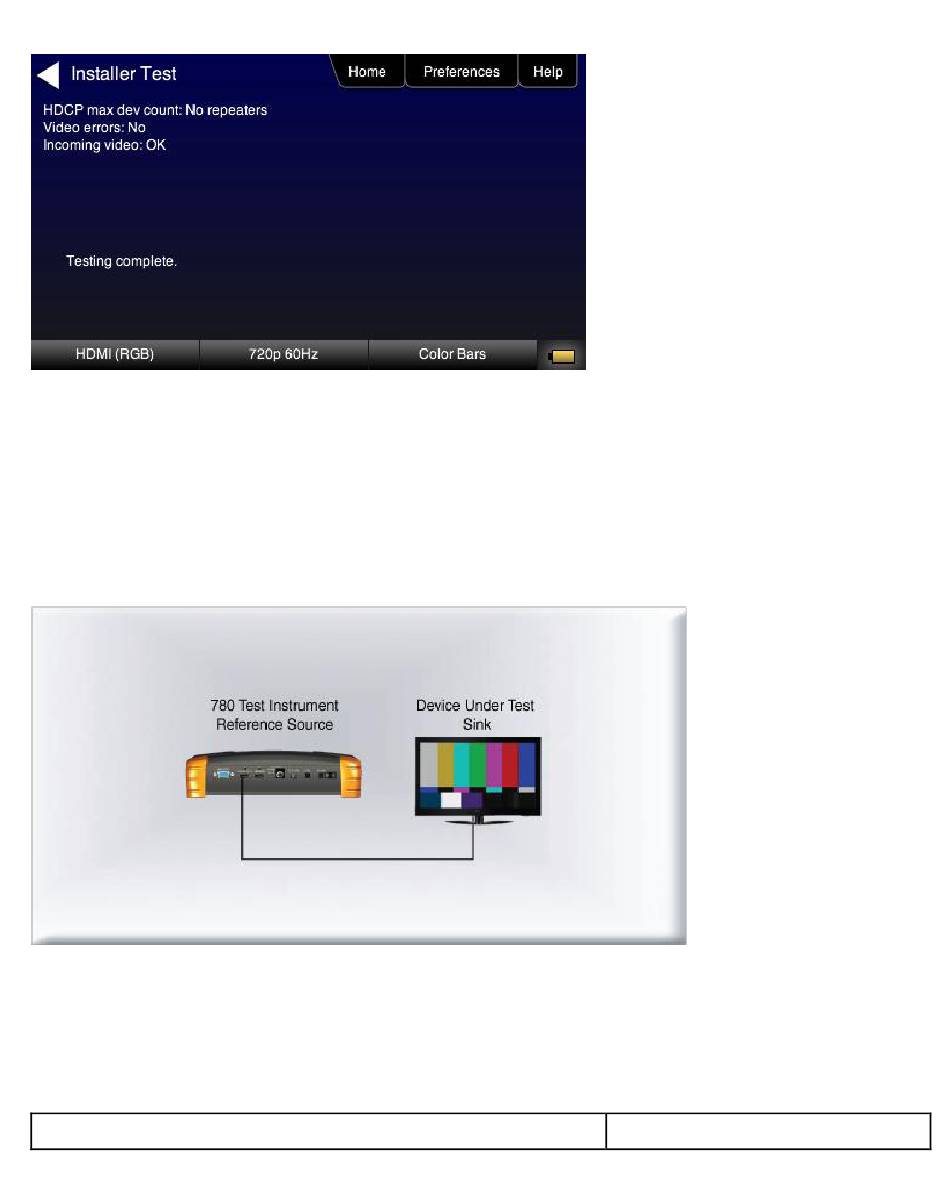

The 780's HDMI input port acts as a ―reference‖ HDMI source device. Therefore it enables you to emulate a known good
HDMI source device to conduct diagnostics downstream toward the sink device. The following illustrations show the
typical configurations.
