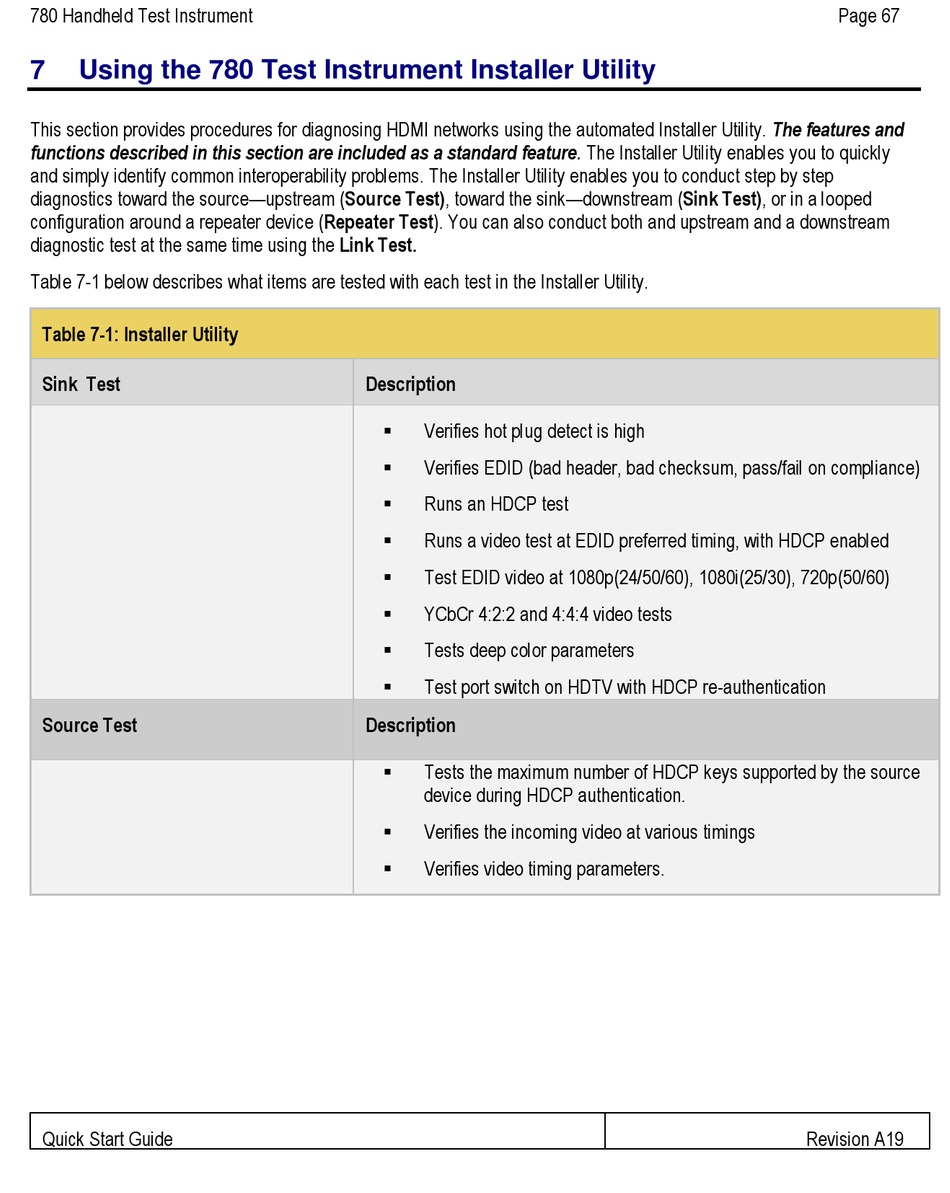

Using the 780 Test Instrument Installer Utility

This section provides procedures for diagnosing HDMI networks using the automated Installer Utility. The features and
functions described in this section are included as a standard feature. The Installer Utility enables you to quickly
and simply identify common interoperability problems. The Installer Utility enables you to conduct step by step
diagnostics toward the source—upstream (Source Test), toward the sink—downstream (Sink Test), or in a looped
configuration around a repeater device (Repeater Test). You can also conduct both and upstream and a downstream
diagnostic test at the same time using the Link Test.
Table 7-1 below describes what items are tested with each test in the Installer Utility.
Table 7-1: Installer Utility
Sink Test
Source Test
Quick Start Guide
Description
Verifies hot plug detect is high

Verifies EDID (bad header, bad checksum, pass/fail on compliance)

Runs an HDCP test

 Runs a video test at EDID preferred timing, with HDCP enabled
Test EDID video at 1080p(24/50/60), 1080i(25/30), 720p(50/60)

YCbCr 4:2:2 and 4:4:4 video tests

 Tests deep color parameters
Test port switch on HDTV with HDCP re-authentication

Description
Tests the maximum number of HDCP keys supported by the source

device during HDCP authentication.
 Verifies the incoming video at various timings
Verifies video timing parameters.

