780 Handheld Test Instrument

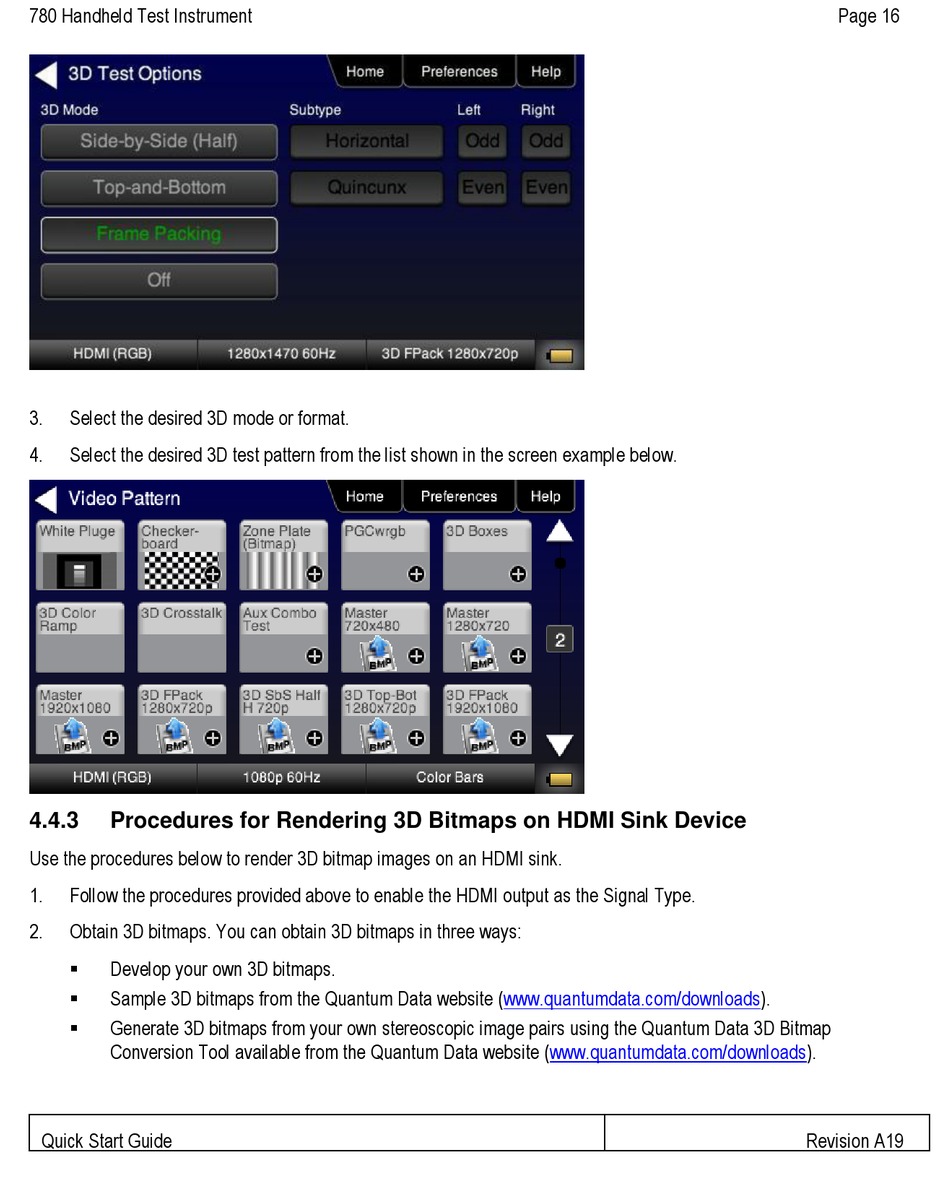

3. Select the desired 3D mode or format.
4. Select the desired 3D test pattern from the list shown in the screen example below.
4.4.3 Procedures for Rendering 3D Bitmaps on HDMI Sink Device
Use the procedures below to render 3D bitmap images on an HDMI sink.
1. Follow the procedures provided above to enable the HDMI output as the Signal Type.
2. Obtain 3D bitmaps. You can obtain 3D bitmaps in three ways:
Develop your own 3D bitmaps.

Sample 3D bitmaps from the Quantum Data website (www.quantumdata.com/downloads).

Generate 3D bitmaps from your own stereoscopic image pairs using the Quantum Data 3D Bitmap

Conversion Tool available from the Quantum Data website (www.quantumdata.com/downloads).
