780 Handheld Test Instrument

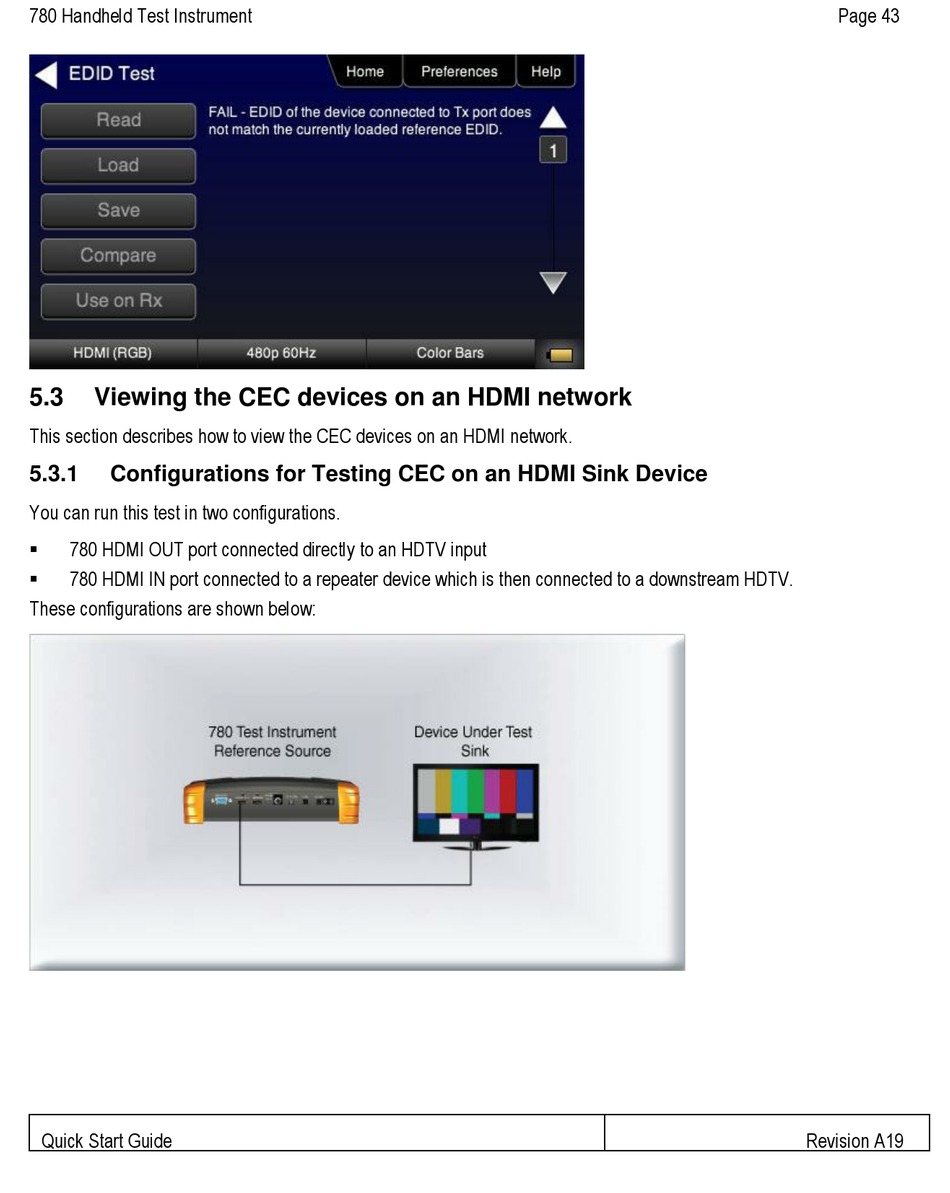

5.3 Viewing the CEC devices on an HDMI network
This section describes how to view the CEC devices on an HDMI network.
5.3.1 Configurations for Testing CEC on an HDMI Sink Device
You can run this test in two configurations.
780 HDMI OUT port connected directly to an HDTV input

780 HDMI IN port connected to a repeater device which is then connected to a downstream HDTV.

These configurations are shown below:
