780 Handheld Test Instrument
4.7.3
Procedures for Testing a Display with Dolby Digital or DTS Sine Wave Clips
Use the procedures below for testing multi-channel Dolby or DTS sine wave using clips.
1.
Make the cable connection between the appropriate the 780 video output connector (e.g. HDMI OUT, SPDIF or
OPTICAL) and the input connector of the audio rendering device using the cables supplied.
2.

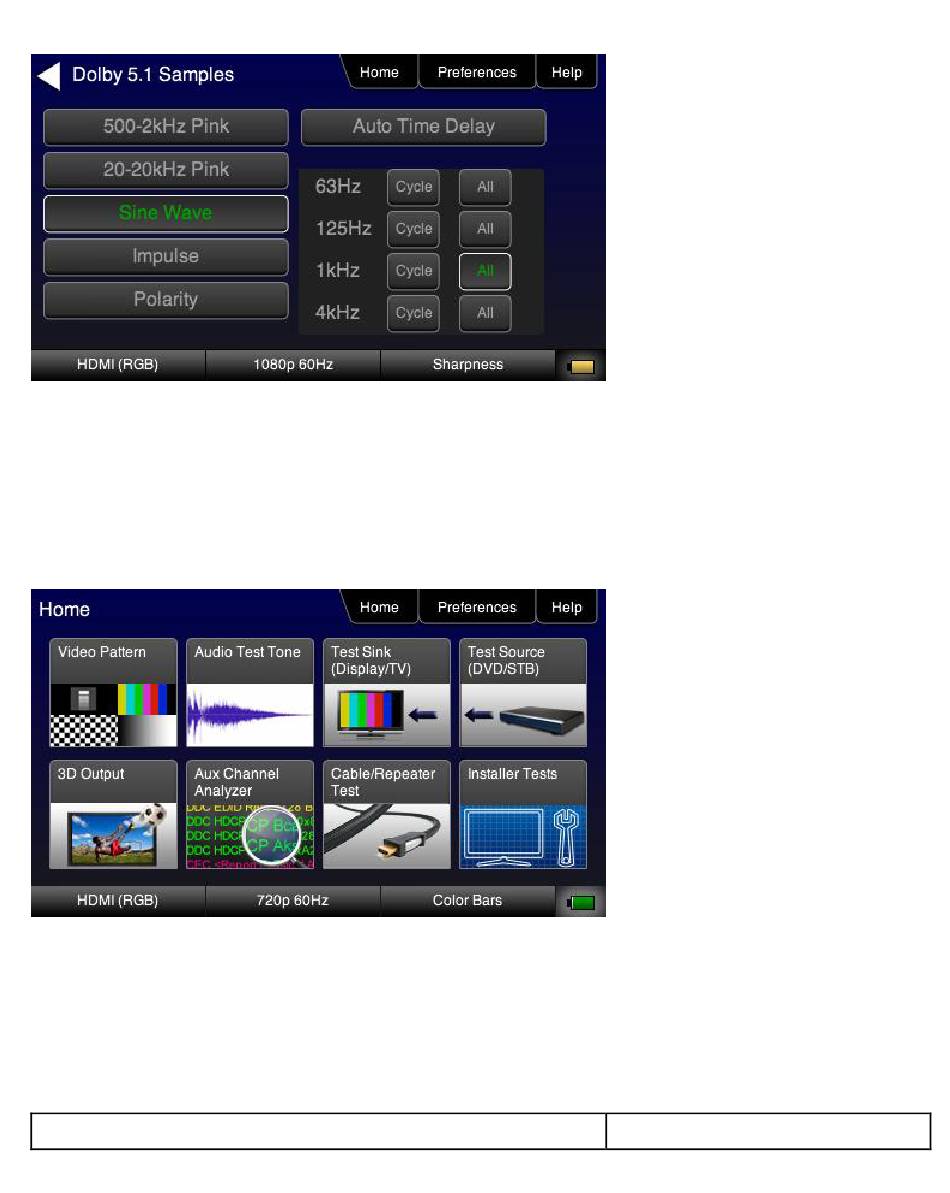

From the top level menu (shown in the figure below), select Audio Test Tone.
The Audio Pattern (Test Tone) menu appears as shown below:
Quick Start Guide
Page 27
Revision A19
