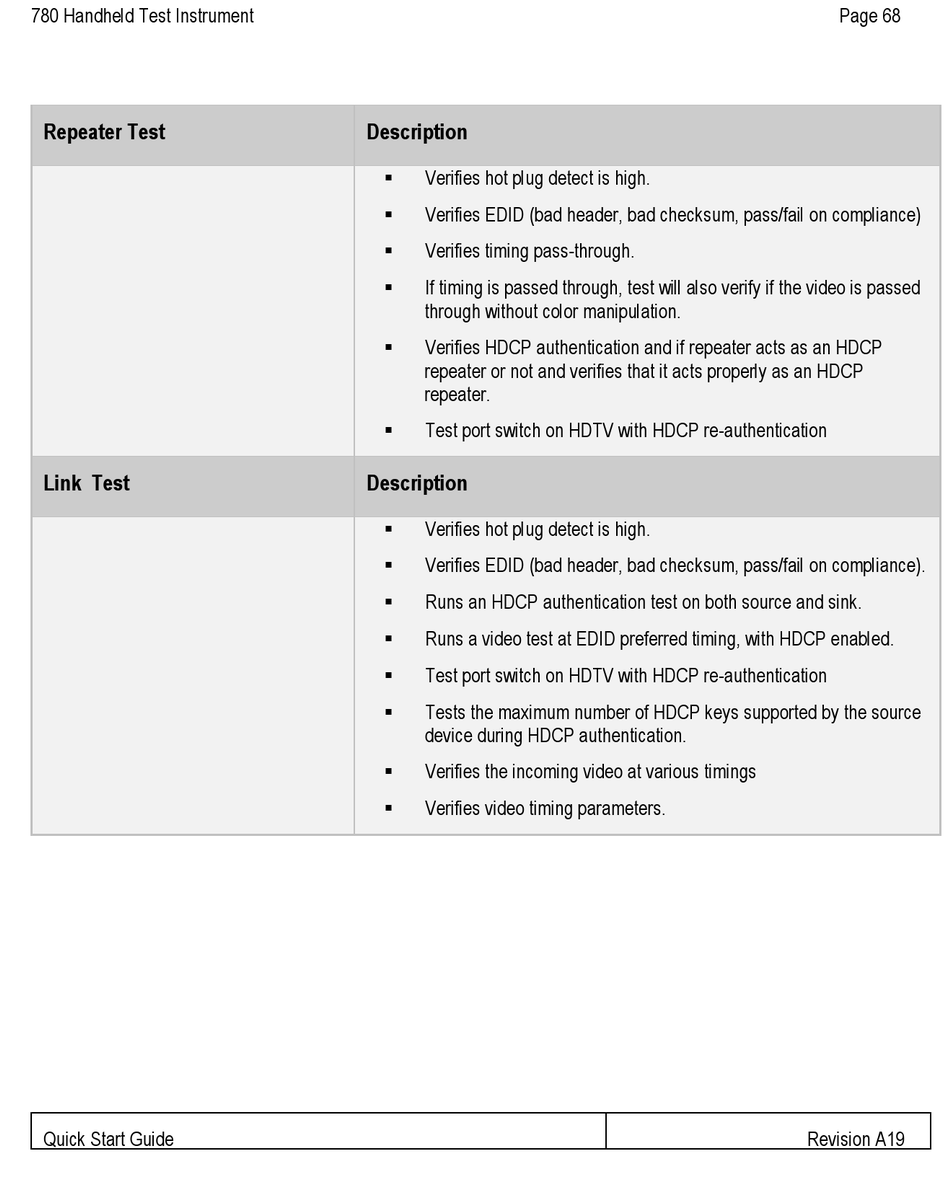

Quantum Data 780 Quick Start Manual page 69

780 Handheld Test Instrument
Repeater Test
Link Test
Quick Start Guide
Description
 Verifies hot plug detect is high.
Verifies EDID (bad header, bad checksum, pass/fail on compliance)

Verifies timing pass-through.

If timing is passed through, test will also verify if the video is passed

through without color manipulation.
 Verifies HDCP authentication and if repeater acts as an HDCP
repeater or not and verifies that it acts properly as an HDCP
repeater.
Test port switch on HDTV with HDCP re-authentication

Description
Verifies hot plug detect is high.

Verifies EDID (bad header, bad checksum, pass/fail on compliance).

Runs an HDCP authentication test on both source and sink.

 Runs a video test at EDID preferred timing, with HDCP enabled.
Test port switch on HDTV with HDCP re-authentication

Tests the maximum number of HDCP keys supported by the source

device during HDCP authentication.
 Verifies the incoming video at various timings
Verifies video timing parameters.

Page 68
Revision A19
