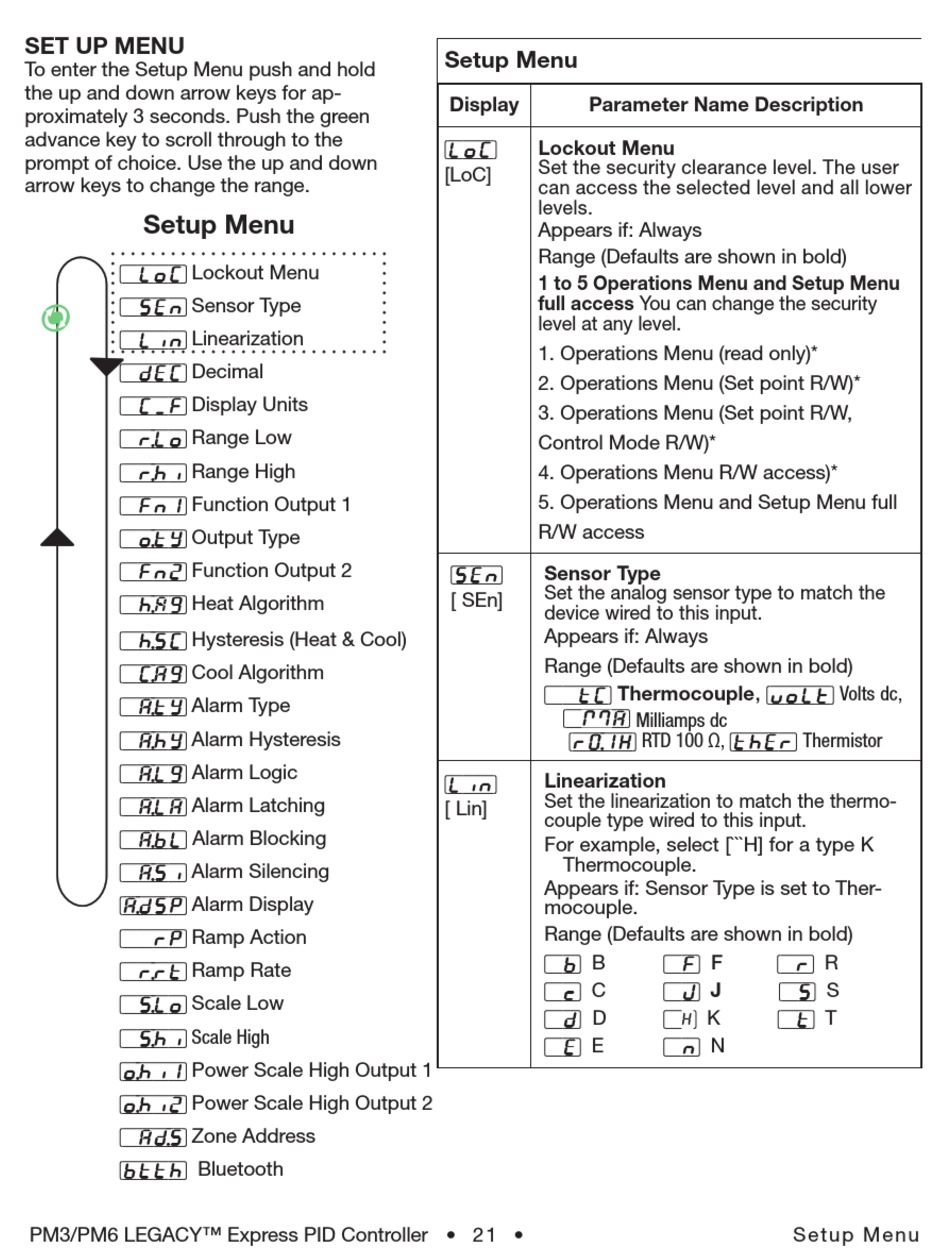

SET UP MENU
To enter the Setup Menu push and hold
the up and down arrow keys for ap-
proximately 3 seconds. Push the green
advance key to scroll through to the
prompt of choice. Use the up and down
arrow keys to change the range.

Setup Menu

[`loC] Lockout Menu
[`SEn] Sensor Type
[`Lin] Linearization
[`deC] Decimal
[`C_F] Display Units
[`r; l o] Range Low
[`r; h i] Range High
[`fn1] Function Output 1
[`o; t y] Output Type
[`fn2] Function Output 2
[`h; a g] Heat Algorithm
[`h; s C] Hysteresis (Heat & Cool)
[`C; A g] Cool Algorithm
[`A; t y] Alarm Type
[`A; h y] Alarm Hysteresis
[`A; l g] Alarm Logic
[`A; l A] Alarm Latching
[`A; b l] Alarm Blocking
[`A; s i] Alarm Silencing
[A; d sp] Alarm Display
[``rp] Ramp Action
[`r; r t] Ramp Rate
[`s; l o] Scale Low
[`s; h i] Scale High
[o; h i1] Power Scale High Output 1
[o; h i2] Power Scale High Output 2
[`Ad; s ] Zone Address
[btth] Bluetooth
PM3/PM6 LEGACY™ Express PID Controller • 21 •
Setup Menu
Display Parameter Name Description
Lockout Menu
[LoC]
Set the security clearance level. The user
[LoC]
can access the selected level and all lower
levels.
Appears if: Always
Range (Defaults are shown in bold)
1 to 5 Operations Menu and Setup Menu
full access You can change the security
level at any level.
1. Operations Menu (read only)*
2. Operations Menu (Set point R/W)*
3. Operations Menu (Set point R/W,
Control Mode R/W)*
4. Operations Menu R/W access)*
5. Operations Menu and Setup Menu full
R/W access
Sensor Type
[Sen]
Set the analog sensor type to match the
[ SEn]
device wired to this input.
Appears if: Always
Range (Defaults are shown in bold)
[``tC] Thermocouple, [uolT] Volts dc,
[`MA] Milliamps dc
[r0; 1 H] RTD 100 Ω, [thEr] Thermistor
Linearization
[Lin]
Set the linearization to match the thermo-
[ Lin]
couple type wired to this input.
For example, select [```H] for a type K
Thermocouple.
Appears if: Sensor Type is set to Ther-
mocouple.
Range (Defaults are shown in bold)
[`b] B
[`c] C
[`d] D
[`e] E
[`f] F [`r] R
[`j] J [`S] S
[`H] K [`t] T
[`n] N
Se tup M e nu
