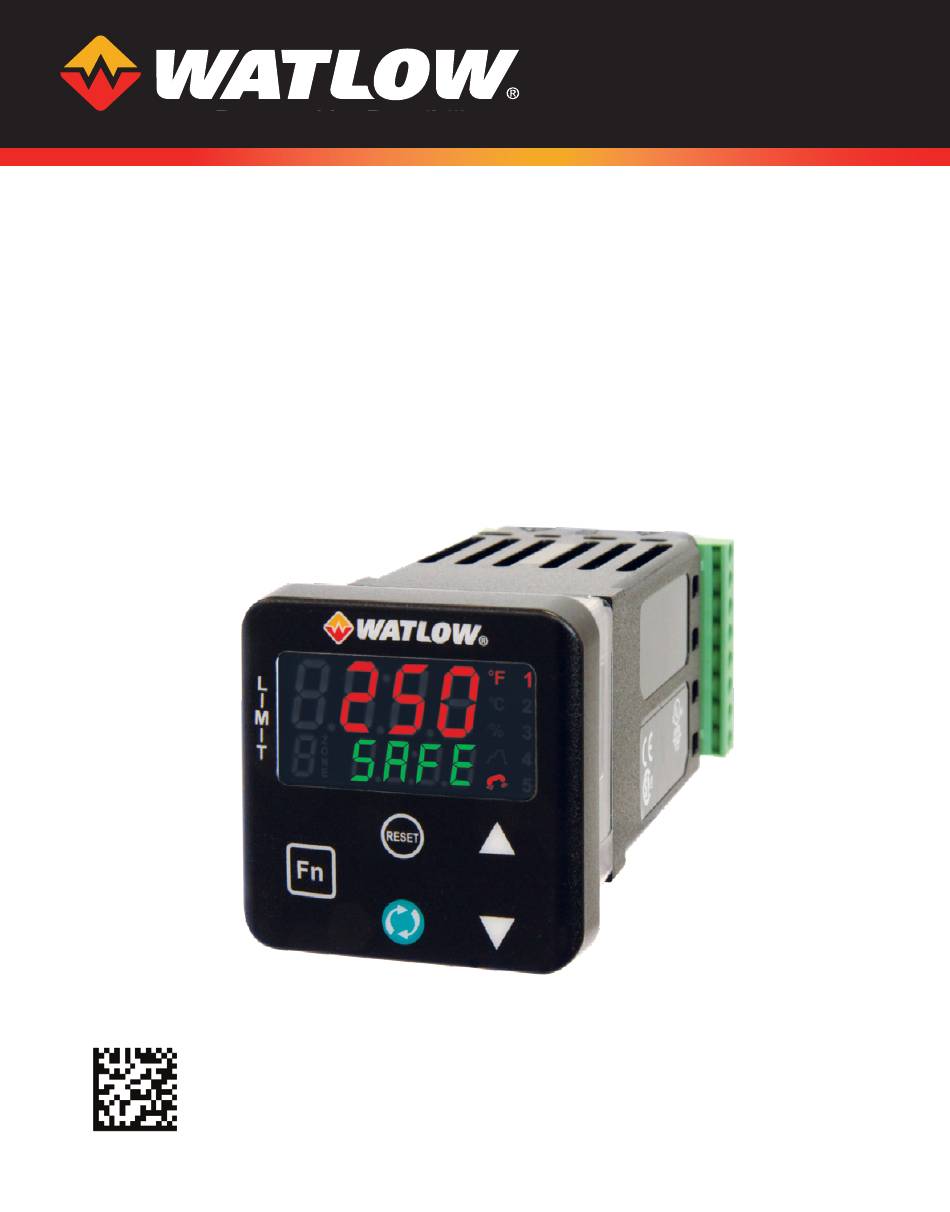

Watlow PM6 LEGACY Quick Start Manual

Hide thumbs

Advertisement

Table of Contents

?? ??
New Photo
QUICK START
Needed
??
GUIDE
PM6 LEGACY
TM
LIMIT CONTROLLER
for configurations:
PM6(L,M)_ _ _-_A_ _G_ _
For assistance contact Watlow: www.watlow.com
1-800-WATLOW2 (1-800-928-5692)
wintechsupport@watlow.com
Document No. 10-42032, Part No. 2134-0008
June 30, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM6 LEGACY and is the answer not in the manual?

Questions and answers

Related Manuals for Watlow PM6 LEGACY

Summary of Contents for Watlow PM6 LEGACY

  • Page 1 ?? ?? New Photo QUICK START Needed GUIDE PM6 LEGACY LIMIT CONTROLLER for configurations: PM6(L,M)_ _ _-_A_ _G_ _ For assistance contact Watlow: www.watlow.com 1-800-WATLOW2 (1-800-928-5692) wintechsupport@watlow.com Document No. 10-42032, Part No. 2134-0008 June 30, 2020...
  • Page 2 1 - MOUNT TO PANEL NOTE: Mounting requires access to the back of the panel. 1. Make the panel cutout using the measurements in figure 1. 44.96 to 45.47 mm 2. Remove the green terminal (1.77 to 1.79 in.) connectors and the mounting collar assembly.
  • Page 3 2 - CONNECT THE SENSOR INPUT Connect your sensor as indicated in the diagram for your sensor input. Figure 4 is an example illustrating the connection shown for a Thermocouple. Thermocouple – Figure 4: Thermocouple Wiring Example Voltage: 0 to 10V or 0 to 10V@ 20kΩ Platinum 100Ω...
  • Page 4 3 - WIRE OUTPUT 1 Refer to the wiring diagram for your configuration code and connect to the slots indicated. PM6(L,M)_ E _- AAAAG_ _: Form C Relay 5A @240 VAC or 30 VDC Internal Circuit Normally Open Load Common Load Normally Figure 5: Switched DC Output Wiring...
  • Page 5 4 - WIRE OUTPUT 2 PM6(L,M)_ _J- AAAAG _ _: Form A Relay Normally Open Load Internal Circuit Common...

  • Page 6: Connect Power

    5 - CONNECT POWER Connect the power source for your configuration code: PM6 _ [1,2,3,4] _ _ - _ _ _ _ _ _ _ 1 or 2:120-240 V (ac) 3 or 4: 24 V (ac or dc) CAUTION Do not connect high voltage to a controller that requires low voltage.
  • Page 7 6 - CE DECLARATION OF CONFORMITY Declaration of Conformity - Series EZ-ZONE ® WATLOW Electric Manufacturing Company 1241 Bundy Blvd. Winona, MN 55987 USA Declares that the following product meets the essential requirements of the following European Union Directives by using the relevant standards show below to indicate compliance.
  • Page 8 Press to Reset Key: reset Controller after a Advances through Press to reset limit after trip condition has been a trip condition has been menu prompts. cleared. cleared. For assistance contact Watlow: www.watlow.com +1-(507)-494-5656 wintechsupport@watlow.com http://www.watlow.com/downloads/en/manuals/pmpmi.pdf Scan for full manual.
  • Page 9 8 - INTRODUCTION T 8 - INTRODUCTION TO KEYPAD & MENU BASICS Set Up Page Pages, Menus and Keypad Basics: Operations Page Pages, Menus and Keypad Basics: NOTE: You must read and understand the role of each key on your controller keypad before proceeding. NOTE: You must read and understand the role of each key on See Panel 7 - Keyboard Overview.

  • Page 10: Setup Page

    Set Up Page Analog Input Digital I/O Limit LiЛЏ Output otPt Alarm ALЛЏ Function Key Global gLbL Communications CoЛЏ Bluetooth Set Up Page To enter the Setup Page, press the Reset Key to return to Home. Press Reset and hold the Up and Down Arrow Keys for 6 seconds.

  • Page 11: Operations Page

    Operations Page Digital I/O Limit LiЛЏ Alarm ALЛЏ Operations Page To enter the Operations Page, press the Reset Key to return to Home. Reset Press and hold the Up and Down Arrow Keys for 6 seconds. Press the green Advance Key enter selected menu.

  • Page 12: Set Input

    9 - SET INPUT Start from Home. Reset Reset Press 6 seconds to enter Setup Page. thermocouple select Select thermocouple type is letter T is letter t). Return Home. Reset Reset Press 6 seconds to enter Setup Page. rtd 100 ohm, select rtd.

  • Page 13: Set Limit

    10 - SET LIMIT Start from Home. Reset Reset Press 6 seconds to enter Setup Page. Select Limit Menu. Both, high, low Select limit sides. Enter degrees. Set the maximum value of what the limit trip points can be. Enter degrees. Set the minimum value of what the limit trip points can be.

  • Page 14: Set Outputs

    11 - SET OUTPUTS Start From Home. Reset Reset Press 6 seconds to enter Setup Page. Select Output Menu. Submenu 1 or 2. Select output number. Off, alarm, limit. Select function of output. Output 2 always limit. alarm, select which alarm (1 to 4). Return Home.

  • Page 15: Set Alarm

    12 - SET ALARM Start from Home. Reset Reset Press 6 seconds to enter Setup Page. Select Alarm Menu. Sub menu 1 to 4. Select which alarm. Off, process select alarm type. Close on alarm. Open on alarm. select alarm logic. Both, high, low select alarm sides.
  • Page 16 13 - SET ALARM SET POINTS Start from Home. Reset Reset Press 3 seconds to enter Operations Page. Select Alarm Menu. Submenu 1 to 4. Select which alarm. Enter degrees. Select low set point. Enter degrees. Select high set point. Return Home.
  • Page 17 14- MESSAGES Limit High Trip In Progress No Limit Condition Alternates Output 2 Opens On Limit Condition Sensor Failure Sensor Out Of Range Alternates Limit And Alarm Outputs Opens On Error Conditions...
