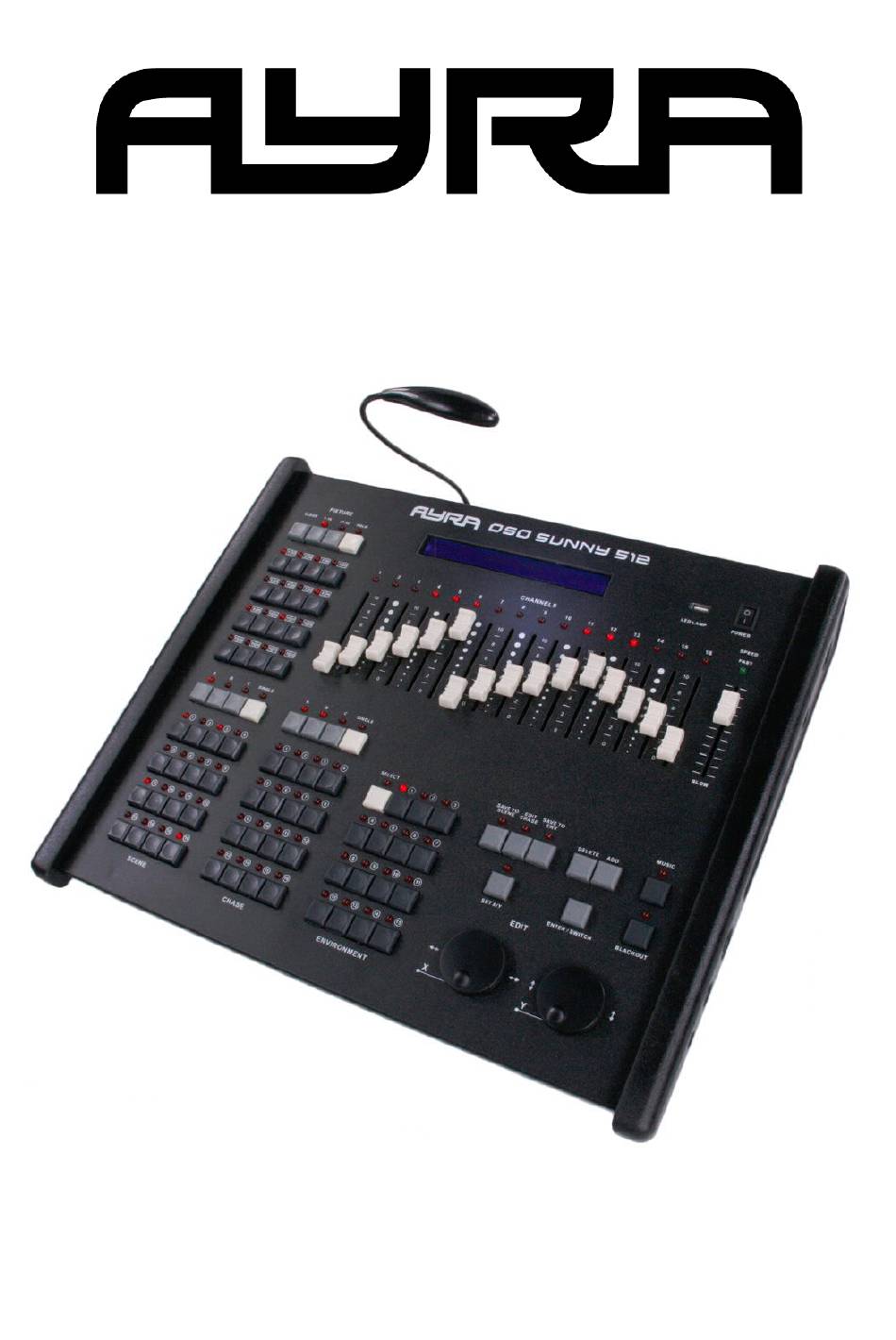

  • Page 1 OSO Sunny 512 DMX controller User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV...

  • Page 2: Safety Instructions

    Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device.
  • Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.
  • Page 4 rating. - Do not bridge the fuse with electrical wires, aluminum foil, as the fuse is used for protection against electrical shocks and short circuit. - Always mount the fuse cover back to the fuse compartment. Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV...

  • Page 5: Box Contents

    Box contents Box contents 1x OSO Sunny 512 DMX controller 1x USB LED gooseneck light 1x power supply Unit and accessory inspection - Always check the unit, box and accessories for possible damage before use. If you suspect that something is wrong with the unit, do not connect it to a power source! When you suspect that your unit is broken or damaged, contact your local dealer or a certified technician to inspect the unit.

  • Page 6: Product Overview

    Product overview Scanner section - Clear: Clears all selected scanners/fixtures and will quit manual operation - 1-16: Selects the page with scanner/fixture 1-16 - 17-32: Selects the page with scanner/fixture 17-32 - Hold: Scanner hold key, to select different scanners/fixtures at the same time. Function is active when the LED is on.

  • Page 7: Edit Section

    Scene section - The console has the ability to store 48 scenes, spread over 3 pages with 16 buttons each. Switch trough the pages by using the A, B and C buttons. - When a key is pressed, the corresponding LED turns on, indicating that the scene is activated. When pressing page A, you can control scene 1-16, when pressing page B, you can control scene 17-32, when pressing page C you can control scene 33-48.
  • Page 8 settings while the total output is blocked. (For example during theatre scene switches or in the climax of music) - Speed: This fader is used to edit the playing speed of chases and/or environments. It is possible to program a certain speed and cross time while creating a chase, but this function is meant to do on the fly corrections in live mode.

  • Page 9: Programming And Configuration

    Programming and configuration This device supports 8-bit and 16-bit movement for any intelligent moving light. Mostly this is applicable to scanners and movingheads in the higher classes. 16-bit movement uses normal and fine coördination values, to determine a precise positioning. This feature is especially important for theatre applications, where moving lights often function as a device to put artists in the spotlight.
  • Page 10 Hold key function for scanners The hold key function for the scanner section makes it possible to select multiple fixtures for a certain application or not. When the Hold key is on, the LED will turn on and you may select several fixtures to change channel values. When the Hold key is off, the LED will turn off and you may only select one fixture at a single time.
  • Page 11 1. Press the Edit Chase key 2. Choose the chase nummer you wish to edit with the selection keys 3. Press ADD key to add a step 4. Use the modulation wheel to change items, such as STEP, TIME and CROSS 5.

  • Page 12: Running Scenes

    Running scenes, chases and environments After you programmed several scenes, chases and environment presets, you might want to give it a shot to play them in a live situation. In this chapter, you will find useful information about playing and combining scenes, chases and environment settings.

  • Page 13: Run Environment

    Check various operating parameters of multiple chases running at the same time When you are running multiple chases at the same time, the display will automatically show the data of the last selected chase. When you wish to check the data of another chase running, follow these steps: Example: B10 and A01 are running, A01 is the last selected chase, we want to select B10 parameters.
  • Page 14 Also the order of the connected fixtures is not important. DMX-controlled devices can be daisy-chained using XLR-XLR cables. AYRA recommends the use of 110 Ohm DMX cables and a DMX terminator (110 Ohm, see below) at the end of a DMX chain.
  • Page 15 Explanation of display contents X-H: X-axis rough channel (high 8-bit channel) X-L: X-axis fine channel (low 8-bit channel) Y-H: Y-axis rough channel (high 8-bit channel) Y-L: Y-axis fine channel (low 8-bit channel) No: Value for X and Y fine channels, which indicates that there is no 16-bit mode possible for the X and Y movement CH: Channel number *: The chase step with * is the last step in the current chase...
  • Page 16 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
  • Page 17 DMX signal (high) power cables parallel to each other. No DMX terminator Apply a DMX terminator at the end of your DMX-chain Signal loss or distortion in DMX Apply a DMX booster in your DMX values chain after 32 fixtures or less. After a maximum of 32 fixtures the DMX signal needs to be refreshed.

  • Page 18: Technical Specifications

    Technical specifications Type: OSO Sunny 512 - DMX protocol: DMX-512/1990 - DMX channels: 512 - amount of fixtures (scanners): 32 - amount of channels per fixture (scanner): 16 - Maximum control-resolution: 16-bit - optical isolated output drives: 4 - electronic isolation of optical isolated outputs: 2000VDC...
