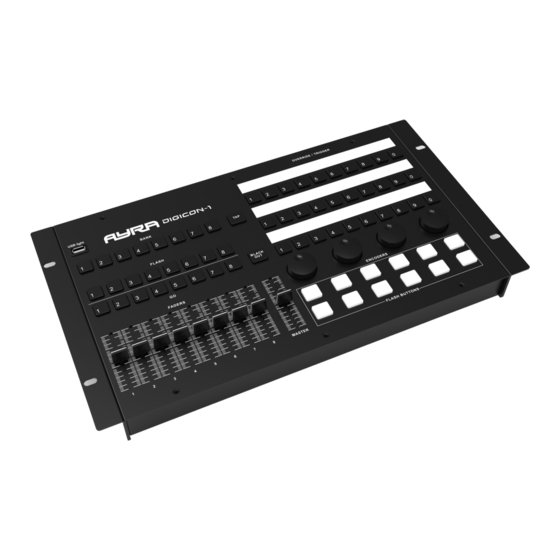

- Page 1 DigiCon-1 Desktop MIDI Wing for (Lighting) Software User Manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 02-12-2020 RV Revision date and author's initials: -...
- Page 2 Introduction Thank you for purchasing the Ayra DigiCon-1. This console, also known as a playback wing, is a device equipped with various buttons and faders that enable you to more easily control software. In this user manual, you can find all the information needed to use the device.
-
Page 3: Safety Instructions
Safety Instructions Damage caused by misuse and/or modifications made to the device are not covered by the warranty. This device does not contain any parts that can be repaired or replaced by the user. Should maintenance or repairs be necessary, they must be handled by a qualified technician. The light source of this device is not replaceable. - Page 4 - Should the device not be used in the manner described in this user manual, damage or even injuries may occur. Ayra cannot be held responsible for any injury or damage that occurs as a result of improper use of this product.
- Page 5 Only suitable for indoor use: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra Professional Lighting Products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
- Page 6 Overview of the Digicon-1 The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 02-12-2020 RV Revision date and author's initials: -...
- Page 7 The table below lists the MIDI messages which can be used to manually map the console. Ple ase note: The DigiCon-1 features bank functionality for the playback section on the left side of the control panel (the buttons and faders fitted to the left of the TAP and Black-Out controls). It’s possible to directly activate a different bank via the Bank 1-8 buttons and use the same buttons to control different parameters than the ones assigned in the previous bank.
- Page 8 NAME MIDI code BUTTON AND MESSAGE TYPE MIDI CHANNEL MIDI INDEX Playback4 button A NOTE OFF = 00, ON = 7F Playback4 button B NOTE OFF = 00, ON = 7F Playback4 button C NOTE OFF = 00, ON = 7F Playback5 button A NOTE OFF = 00, ON = 7F...
- Page 9 Due to its universal design, the DigiCon-1 can be used to perform specific, as well as more general tasks; the possibilities are endless. For certain software, it’s essential that the buttons of the Digicon-1 are ‘mapped’ before use. This is to let the software know which signal coming from the controller needs to converted into which specific action.
- Page 10 In most cases, it’s not possible to mount equipment with a deep housing directly behind the DigiCon-1. This also applies when the DigiCon-1 is mounted at the top of your rack or case. As a rule of thumb, it’s advisable to leave an empty space of 1U above the DigiCon-1, which could then be covered with a blind panel or ventilation panel.
-
Page 11: Troubleshooting
Troubleshooting If you experience any problems with your DigiCon-1, please consult this troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your retailer for more information and/or help. This troubleshooting section contains information to help solve the most common problems related to this type of MIDI device, but it does not and cannot cover every eventuality. -
Page 12: Technical Specifications
Technical Specifications Basic specifications: - Versatile MIDI controller, designed for use with lighting software - native support for Visual Productions Cuelux and Nicolaudie Sunlite Suite 3 - metal housing - high-quality buttons, faders and pads - clear lay-out for ultimate hands-on control - powered via built-in power transformer (non-USB-powered) - USB port for optional gooseneck light or other gadget - equipped with 19”...
