- Page 1 ComPar KIT 3 DMX COB LED light kit with power outputs User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 22-04-2015 RV Revision date + author initials: -...
- Page 2 If you encounter any problems during use, contact your local dealer for more information and help. The Ayra ComPar Kit is a versatile lighting system, used for entertainment purposes. It is an ideal system for mobile DJs, solo entertainers and bands who wish to add colourful changing lights to their performance, creating a powerful atmosphere.
-
Page 3: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electric shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electric shocks! WARNING! Be careful with every operation of this device. - Page 4 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra cannot be held responsible for any damage or injury caused by improper use.
- Page 5 going to be serviced. Fuses: - The main fuse of this device can be found on the rear of the device, usually next to the power inlet. - Only replace the fuse for a new one of the same type and rating! Do not use a fuse with a higher or lower rating.
-
Page 6: Box Contents
1x Ayra ComPar Kit 3 1x light stand 1x foot controller with connection cable 1x padded case for ComPar Kit 3 1x light stand bag 1x power cable IEC C13 to Schuko (3x 1mm²) 1x power cable IEC C13 to UK plug (3x 1mm²) -
Page 7: Device Overview

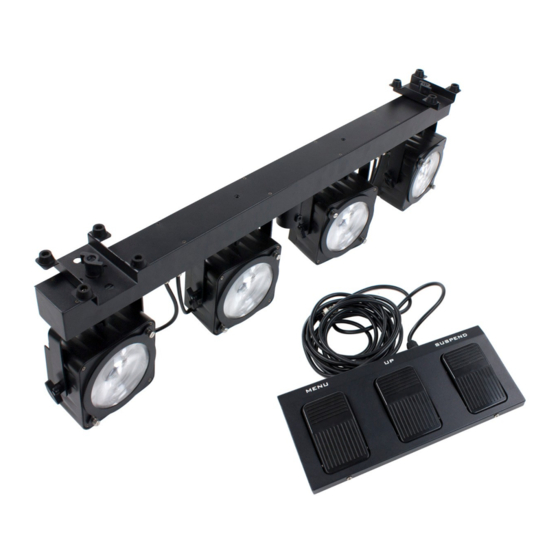

Device overview Main fixture 1. Electronic mounting bar 2. Spotlight 3. Stand adapter (35mm) Foot controller 4. Menu button 5. UP button 6. Suspend button (blackout) 7. Connection cable with locking connector Mounting feet 7. Metal bracket 8. Rubber foot 9. - Page 8 12. External fuse (for power outputs, F7A/250V) 13. Power input, IEC C14, 100-230 V AC, 50 Hz 14. DMX output (3p XLR) 15. DMX input (3p XLR) 16. Foot controller input (5p locking aviation plug) 17. Power output, IEC C13 18.
-
Page 9: Important Notice
It is theoretically possible to connect a total of 10 ComPar Kit 3 fixtures in a single line, without power problems (as the maximum power capacity of the power outputs combined is 1,610 W). -
Page 10: Setting Up The Unit
Master/Slave mode Slave 1-2 or master operating NOTE: Only possible by connecting mode two ComPar KIT 3 units with each other by 3p XLR cable. Set the unit to Slave 1 or 2. In music mode, slave 2 will switch between mirrored and synced operation mode. - Page 11 5P connector, then feed the signal through from fixture to fixture with the DMX inputs and outputs. NOTE: The master/slave mode of the Compar Kit 3 is compatible with the master/slave mode of the Compar Kit 1 and 2. However, the specified floor controllers are not interchangeable between the Compar Kit 1 / 2...
- Page 12 This unit has the following DMX channels and DMX values: 1 Channel Mode Chase 000-007 Blackout 008-037 Show 01 038-067 Show 02 068-097 Show 03 098-127 Show 04 128-157 Show 05 158-187 Show 06 188-217 Show 07 218-247 Show 08 248-255 Random Show 01-08 3 Channel Mode 000-255 Dimmer 0-100%...
- Page 13 Red 2 000-255 Dimmer 0-100% Green 2 000-255 Dimmer 0-100% Blue 2 000-255 Dimmer 0-100% Red 3 000-255 Dimmer 0-100% Green 3 000-255 Dimmer 0-100% Blue 3 000-255 Dimmer 0-100% CH10 Red 4 000-255 Dimmer 0-100% CH11 Green 4 000-255 Dimmer 0-100% CH12 Blue 4 000-255 Dimmer 0-100%...
-
Page 14: Installation And Maintenance
Lens mechanism The Compar Kit 3 spotlights are equipped with a standard lens. As the standard dispersion of a COB LED is very wide, users may want to change the dispersion angle for different purposes. The Compar Kit 3 has standard lenses installed in front of the spotlights, mounted with two knobs. - Page 15 This prevents possible electric shocks. The lenses can be cleaned with a non-aggressive glass cleaning solution, but this is not recommended. Ayra advises cleaning the mirror and lens with a fine brush, while removing dust and/or dirt with a vacuum cleaner.
- Page 16 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve the difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
- Page 17 each other. No DMX terminator Insert a DMX terminator at the end of your DMX chain Signal loss or distortion in DMX Insert a DMX booster in your DMX values chain after 32 fixtures or less. After a maximum of 32 fixtures the DMX signal needs to be refreshed.
-
Page 18: Technical Specifications
Included accessories: 1x light stand 1x foot controller with connection cable 1x padded case for ComPar Kit 3 1x light stand bag 1x power cable IEC C13 to Schuko (3x 1mm²) 1x power cable IEC C13 to UK plug (3x 1mm²) - Page 19 - LED current mA (A): 667 mA - total power (W): 96.9 W (please calculate with 170 W of power when connecting this device because of the power factor) - power factor (PF): 0.571 PF - AC current mA (A): 0.738 A - surface temperature during use: 48 degrees Celsius Light output data, measured with 30-degree angle, 1 spotlight: Red LED:...
