- Page 1 OSO SCENE 48 DMX controller User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.
- Page 4 rating. - Do not bridge the fuse with electrical wires, aluminum foil, as the fuse is used for protection against electrical shocks and short circuit. - Always mount the fuse cover back to the fuse compartment. Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV...
-
Page 5: Box Contents
Box contents Box contents 1x OSO Scene 48 DMX controller 1x power supply Unit and accessory inspection - Always check the unit, box and accessories for possible damage before use. If you suspect that something is wrong with the unit, do not connect it to a power source! When you suspect that your unit is broken or damaged, contact your local dealer or a certified technician to inspect the unit. -
Page 6: Device Overview

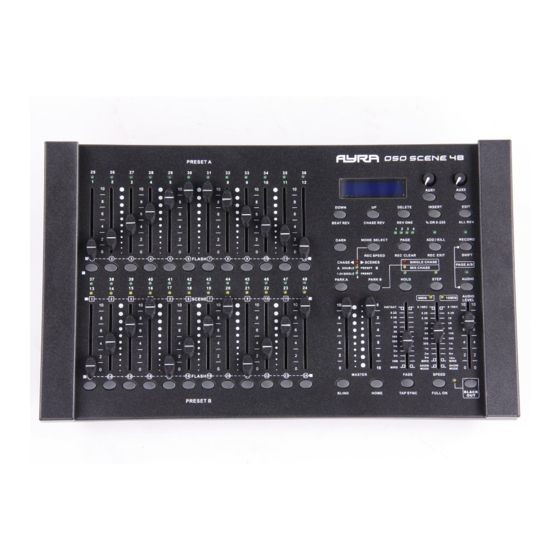

Device overview Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV... -
Page 7: Product Overview
Product overview NUMBE TYPE FUNCTION Channel fader 1-12 (25- Changes the value of channels 1-12 (25-36) from 0 to 255 Channel flash button 1-12 Changes the value of channels 1-12 (25-36) to (25-36) 100% while holding Channel fader 13-24 (37- Changes the value of channels 13-24 (37-48) from 0 to 256 Scene... - Page 8 LCD display Shows information about actual values, activity or programming mode Delete/Rev One Delete: Delete step chase Rev One: Reverse the chasing direction of any specific program AUX 1 Patchable knob, used to change the value of a certain (changeable) channel directly Insert/% or 255 Insert: Add 1 step or multiple steps to a chase % or 255: Change the display value cycle between...
- Page 9 mode Speed Fader Adjust the speed of running chases Fade Fader Adjust the fade-in, fade-out and cross-fade time Master A/B Adjusts the overall intensity of group A and B NUMBER TYPE FUNCTION 3-pin DMX output to lighting fixtures connector USB lamp socket Power supply for the included USB gooseneck LED light ON/OFF power switch...
- Page 10 USED TERMS: Blackout: A state where the overall DMX output is set to 0, commonly extinguishes any activity from any connected DMX-controlled lighting fixture DMX-512: A term which states the name of the used protocol to control intelligent stage lighting Fixture: Refers to the device that projects light (such as a DMX LED Parcan, DMX dimmer, movinghead, scanner or lighting effect) Programs: Also named Chase.
-
Page 11: Setting Up The Device
- Plug the AC/DC power converter (supplied) into the rear panel of the unit and plug the other end into a wall outlet or power distribution system. - Connect your DMX-lighting by using XLR-XLR cables (Ayra recommends using special DMX 110 Ohm cables, such as Procab REF953). Daisy-chain all your DMX lighting until every fixture is connected. Set the correct DMX addresses (see the manuals of every individual product). -
Page 12: Programming And Editing
Programming and editing Record enable To enter the PROGRAM mode of this device, follow the described steps: 1. Hold the RECORD button and press Flash buttons 1-5-6-8 in this order. 2. Release the RECORD button. The RECORD LED will light up. Create a program A program in this lighting controller can be a static program (one scene) or a combination of several scenes, looped in a particular order (chase). - Page 13 2. Record a scene with 1 or more steps (see above) 3. If you are not satisfied with the scene(s), you may press and hold the Record button and tap the Page/REC CLR button. All LEDs will flash, indicating that the scenes have been cleared. NOTE: This function will erase all data stored in the temporary memory.
-
Page 14: Playing A Scene With The Speed Slider
Playback Playing a scene 1. Tap the Mode Select button to select the Chase<>Scene mode 2. Tap the Page button to go to the page where your Scene is stored 3. Push Master Fader B to its maximum position (NOTE: 100% intensity = full down!) 4. - Page 15 Also the order of the connected fixtures is not important. DMX-controlled devices can be daisy-chained using XLR-XLR cables. AYRA recommends the use of 110 Ohm DMX cables and a DMX terminator (110 Ohm, see below) at the end of a DMX chain.
-
Page 16: Midi Operation
MIDI operation MIDI IN operation The controller will only respond to MIDI signals that are sent to the MIDI channel it responds to. All MIDI control is performed by using MIDI Notes on commands. All other MIDI instructions are ignored. To stop a chase, you need to send a blackout on note. -
Page 17: Sending Midi File Dump
Sending MIDI File Dump 1. While holding the Record button, tap Flash button 4 three times. This display will show “ MIDI FILEDUMP SENDING 000%” when the device is in the correct mode. 2. While holding down Record, tap the REC Exit button to leave the MIDI setting. NOTE: This function will only work with this device, not with any different brands/types. - Page 18 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
- Page 19 DMX signal (high) power cables parallel to each other. No DMX terminator Apply a DMX terminator at the end of your DMX-chain Signal loss or distortion in DMX Apply a DMX booster in your DMX values chain after 32 fixtures or less. After a maximum of 32 fixtures the DMX signal needs to be refreshed.
-
Page 20: Technical Specifications
Technical specifications - 48-channel DMX-512 dimming console - 4 pages, each equipped with 12 playback scenes/chases, 48 in total - simultaneous playback for all 48 scenes/chases possible - 48.000 programmable steps (total) - each chase may contain up to 1000 steps - 2 programmable aux knobs - adjustable chase and fade time - re-assignable channels...
