Summary of Contents for Ayra ALO 019

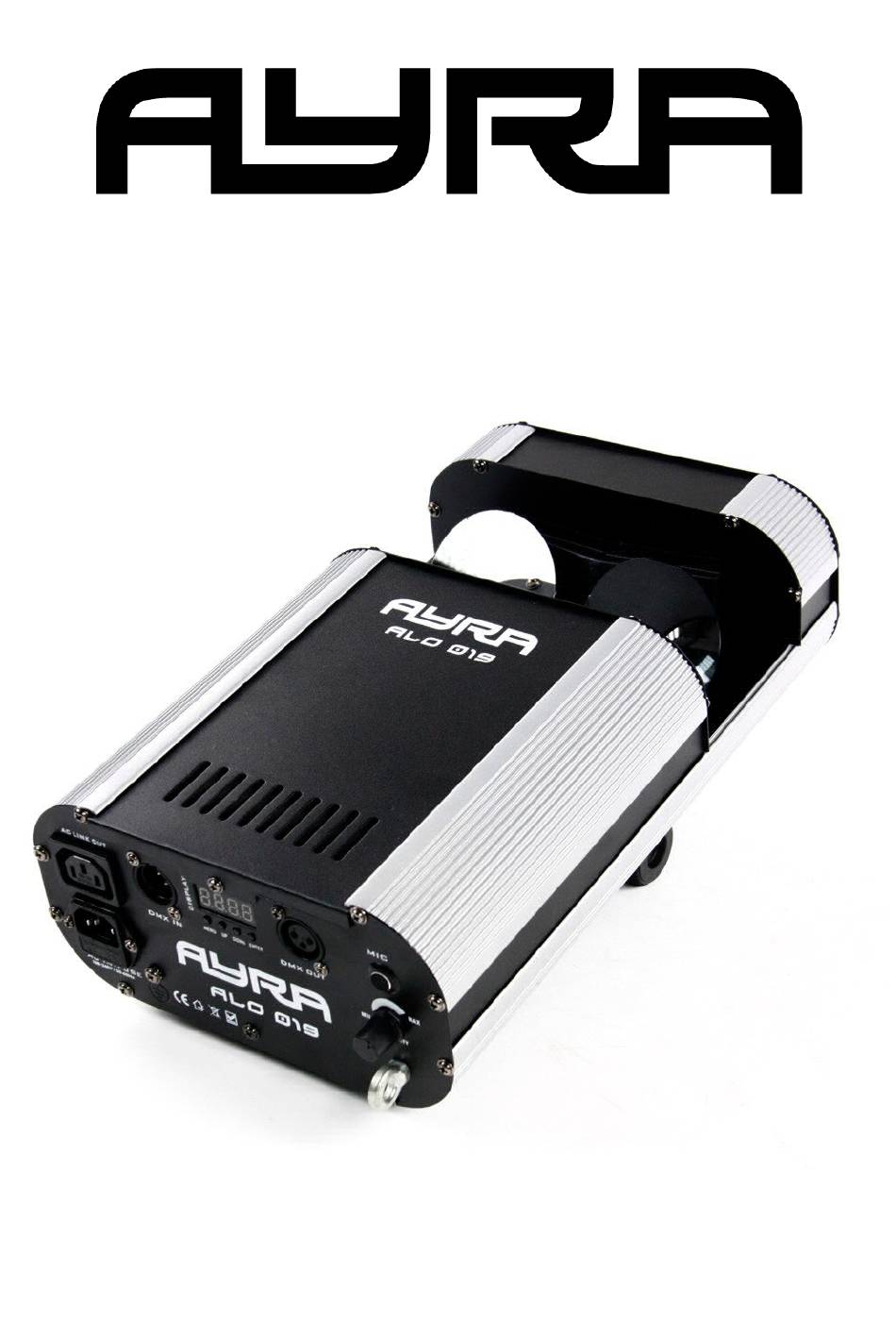

- Page 1 ALO 019 Dual LED scanner User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra can not be held responsible for any damage or injury caused by improper use.
- Page 4 rating. - Do not bridge the fuse with electrical wires, aluminum foil, as the fuse is used for protection against electrical shocks and short circuit. - Always mount the fuse cover back to the fuse compartment. Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV...
-
Page 5: Box Contents
Box contents Box contents 1x ALO 019 fixture 1x power cable IEC C13 to Schuko 1x power cable IEC C13 to UK plug Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it. -
Page 6: Device Overview
Device overview 1. Moving mirror 2. Beam output 3. Ventilation slot 4. IEC output (Power link) 5. IEC Power input with fuse 6. DMX input (3P XLR) 7. Menu display with buttons 8. DMX output (3P XLR) 9. Built-in microphone 10. -
Page 7: Setting Up The Unit
The unit will activate directly after it is plugged in to a wall outlet or other power source. The ALO 019 is equipped with a digital display, showing current working modes, but is also used to change certain settings on the fixture. Use the Menu, Up, Down and Enter buttons to cancel, change and confirm certain settings. - Page 8 While doing so, a DMX-terminator must be connected to the last fixture, at the end of the DMX-chain. This prevents reflections in the DMX-signal, which could cause flickering and unwanted behavior from your intelligent fixtures. A DMX terminator is a XLR connector with a resistor of 120 Ohm, placed between pin 2 and 3 as a bridge. In DMX-mode you are able to control every feature of this fixture by using the following channel settings: DMX Channels Channel Value...
-
Page 9: Installation And Maintenance
- It is prohibited to install the system by using only safety cables or chains! Warranty is void when any of the above safety precautions are not met. Ayra can not be held responsible if any damage or injury occurs due to improper use of the system. - Page 10 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
- Page 11 DMX signal (high) power cables parallel to each other. No DMX terminator Apply a DMX terminator at the end of your DMX-chain Signal loss or distortion in DMX Apply a DMX booster in your DMX values chain after 32 fixtures or less. After a maximum of 32 fixtures the DMX signal needs to be refreshed.
-
Page 12: Technical Specifications
Technical specifications - compact dual LED scanner - 128 x 5mm LEDs - 64 red, 40 green, 24 blue LEDs, spread over 2 clusters - each lens/mirror combination has its own LED cluster - high power output thanks to lens optics - sound-activated working mode, built-in microphone with adjustable sensitivity - patterns adjustable for each lens - mirror movement adjustable for each lens...
