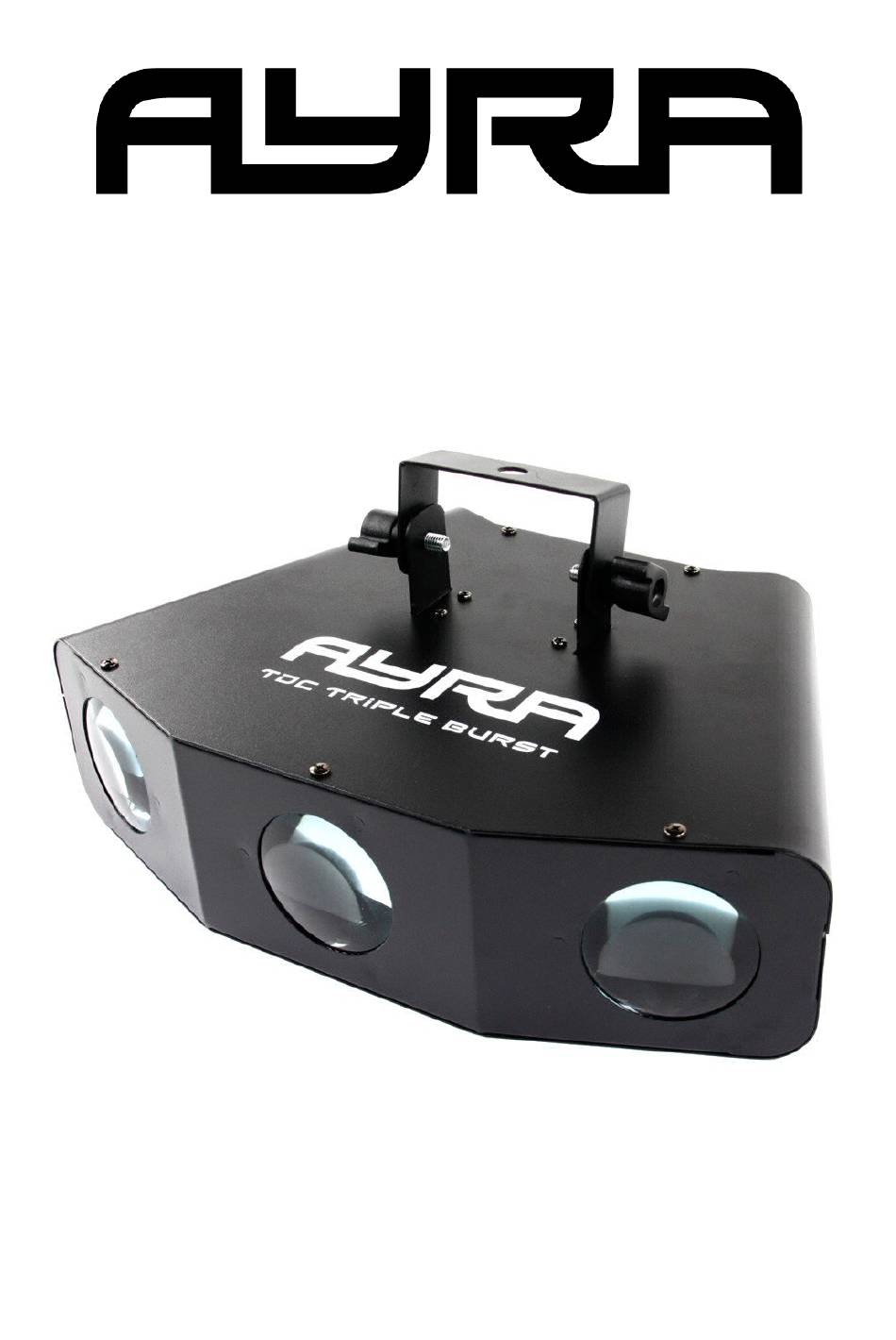

TDC Triple Burst
DMX LED light effect
User manual
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0
Creation date + author initials: 20-11-2013 RV Revision date + author initials: 03-12-2014 RV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDC Triple Burst and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ayra TDC Triple Burst

Summary of Contents for Ayra TDC Triple Burst

  • Page 1 TDC Triple Burst DMX LED light effect User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 20-11-2013 RV Revision date + author initials: 03-12-2014 RV...

  • Page 2: Safety Instructions

    Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device.
  • Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra can not be held responsible for any damage or injury caused by improper use.
  • Page 4 rating. - Do not bridge the fuse with electrical wires, aluminum foil, as the fuse is used for protection against electrical shocks and short circuit. - Always mount the fuse cover back to the fuse compartment. Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 20-11-2013 RV Revision date + author initials: 03-12-2014 RV...

  • Page 5: Box Contents

    Box contents Box contents 1x TDC Triple Burst fixture 1x power cable IEC C13 to Schuko 1x power cable IEC C13 to UK connector Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it.

  • Page 6: Device Overview

    Device overview 1. Beam output 2. Adjustable bracket 3. IEC output (Power link) 4. IEC input with fuse 5. Menu display with buttons 6. Built-in microphone 7. Safety eye 8. DMX input (3P XLR) 9. DMX output (3P XLR) 10. Ventilation slots Any information and illustrations shown in this user manual are subject to change without further notice.

  • Page 7: Setting Up The Unit

    Setting up the unit To activate the unit, connect the included power supply to the unit and a suitable 230V, 50 Hz power outlet. The fixture will start up and show the last chosen setting on the display. Usually, with a new product, this is the DMX mode with the value set on 001.
  • Page 8 XLR – XLR cables (not included). DMX: The TDC Triple Burst can be connected to a DMX-controller with standard XLR – XLR cable. While doing so, a DMX-terminator must be connected to the last fixture, at the end of the DMX-chain. This prevents reflections in the DMX-signal, which could cause flickering and unwanted behavior from your intelligent fixtures.
  • Page 9 113-127 Color chase 8 128-142 Color chase 9 143-157 Color chase 10 158-172 Color chase 11 173-187 Color chase 12 188-202 Color chase 13 203-217 Color chase 14 218-232 Color chase 15 233-247 Color chase 16 248-255 Stand alone show Dimmer 000-255 Dimmer 0-100% Strobe...
  • Page 10 Green2 000-255 Dimmer 0-100% Blue2 000-255 Dimmer 0-100% White2 000-255 Dimmer 0-100% 000-255 Dimmer 0-100% CH10 Amber2 CH11 Red3 000-255 Dimmer 0-100% CH12 Green3 000-255 Dimmer 0-100% CH13 Blue3 000-255 Dimmer 0-100% CH14 White3 000-255 Dimmer 0-100% 000-255 Dimmer 0-100% CH15 Amber3 19CH Mode:...
  • Page 11 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
  • Page 12 DMX signal (high) power cables parallel to each other. No DMX terminator Apply a DMX terminator at the end of your DMX-chain Signal loss or distortion in DMX Apply a DMX booster in your DMX values chain after 32 fixtures or less. After a maximum of 32 fixtures the DMX signal needs to be refreshed.

  • Page 13: Technical Specifications

    Technical specifications High power triple burst effect Intense and colourful beams Light source: 15x 3W LED (1x RGBWA for each lens) Control each LED with the 19 channel DMX mode Wide angle projection, narrow and sharp beams Working modes: Automatic, music-controlled, master/slave, DMX Exciting built-in programs or full control with a DMX controller DMX operation: 1, 3, 9, 15, 19 channels Adjustable microphone sensitivity for music-controlled mode...
