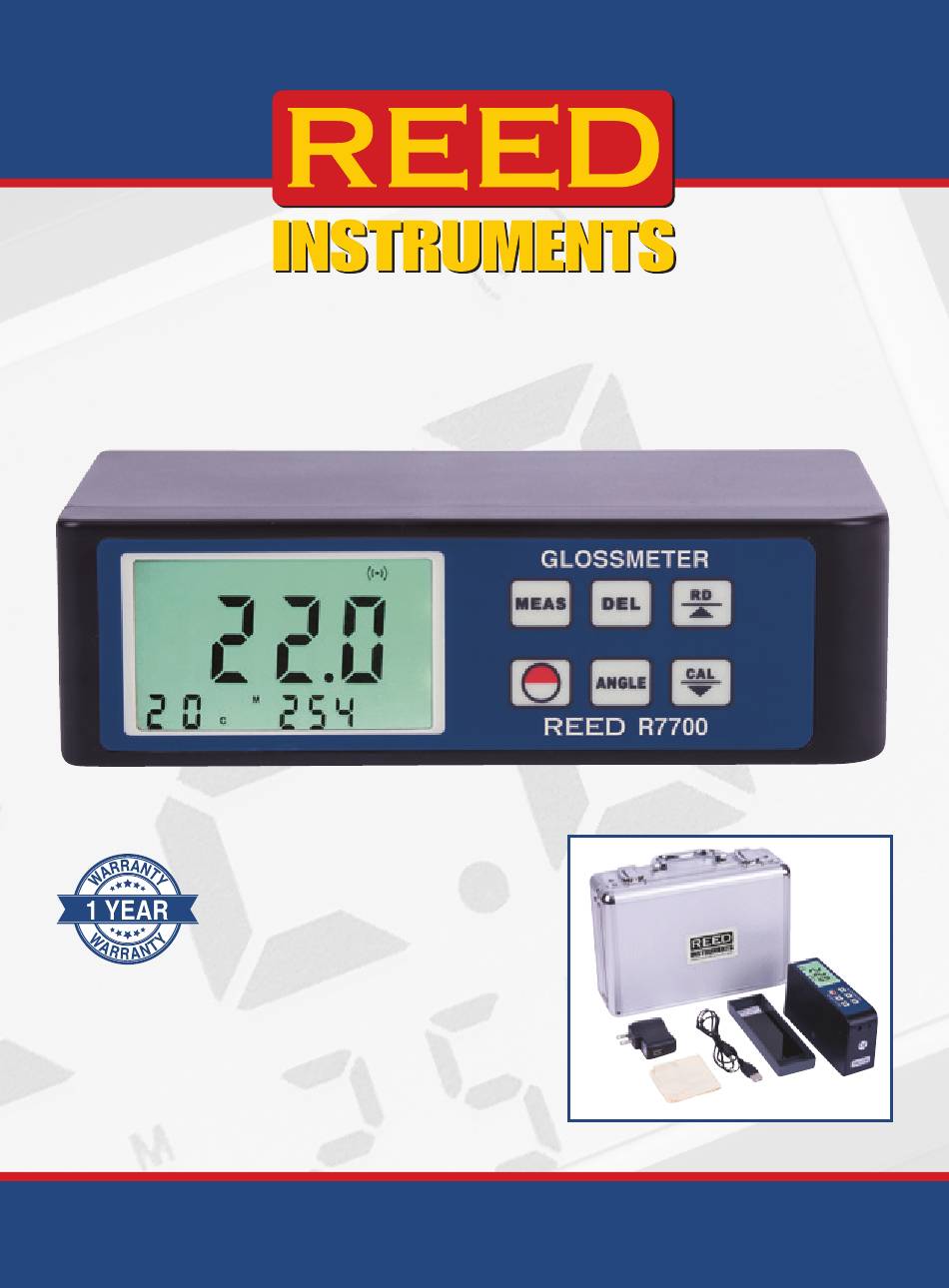

- Page 1 R7700 Gloss Meter Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Product Support ..................9 Introduction Thank you for purchasing your REED R7700 Gloss Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Product Quality
Features • Compact design allows for one-handed operation • Multi-angle measurement (20/60/85°) • Backlit LCD display • Auto calibration • Internal memory stores last 254 data points • Built-in rechargeable battery • Designed to meet ASTMD523, ASTMD1455, ASTMC584 and ASTMD2457 international standards Included • AC Adapter • Calibration Standard • Cleaning Cloth • Hard Carrying Case REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 4: Specifications

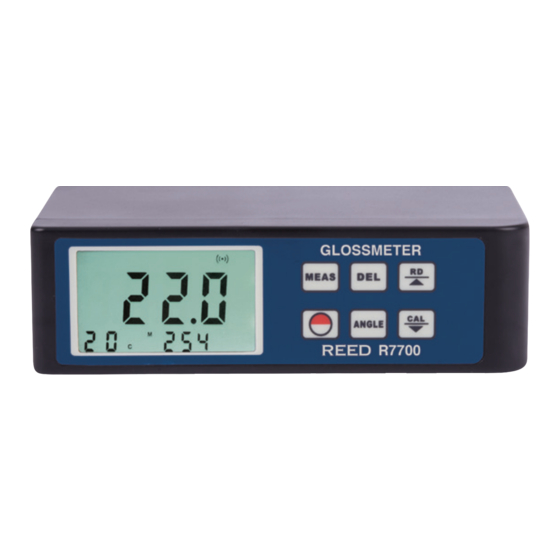

Product Certifications: CE/RoHS Operating Temperature: 32 to 104°F (0 to 40°C) Storage Temperature: -4 to 140°F (-20 to 60°C) Operating Humidity Range: 0 to 85% Dimensions: 5.5 x 1.8 x 3" (140 x 45 x 75mm) Weight: 10.76oz (305g) Instrument Description 1. Display 2. Measurement Button GLOSSMETER 3. Delete Button 4. Data Recall/Up Button 5. Power Button R7700 6. Angle Button 7. Calibration/Down Button REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 5: Operating Instructions
This meter offers single or continuous measurement modes. To toggle between single and continuous modes, hold the POWER button and release when "SC" appears on the LCD. When continuous mode is selected, the measurement indicator will appear at the top right of the LCD confirming that the meter will continuously take measurements. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 6: Measuring Geometry
Place the measurement aperture against the material. Press the ANGLE button to select the right measuring geometry. The reading that displays within 2 seconds is the gloss value at the selected angle position. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 7: Data Recall
USB. Note: It can take up to 5 hours for the meter to be fully charged and can still be used while the battery is being charged. REED Instruments www.REEDINSTRUMENTS.com 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Accessories And Replacement Parts
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. -
Page 9: Product Disposal And Recycling
Your product contains electronic components and must be disposed of separately from standard waste products. Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 10 TesT & MeasuRe wITh ConfIdenCe CheCk ouT ouR laTesT PRoduCTs! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
