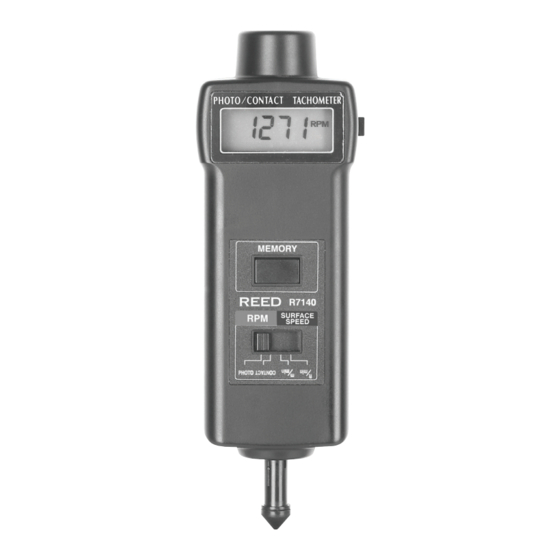

Photo-contact tachometer

Advertisement

INSTRUMENTS
INSTRUMENTS
Model
Photo-Contact
Tachometer
Instruction
Manual
www
1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com
R7140
reedinstruments
REED Instruments
com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R7140 and is the answer not in the manual?

Questions and answers

Summary of Contents for REED R7140

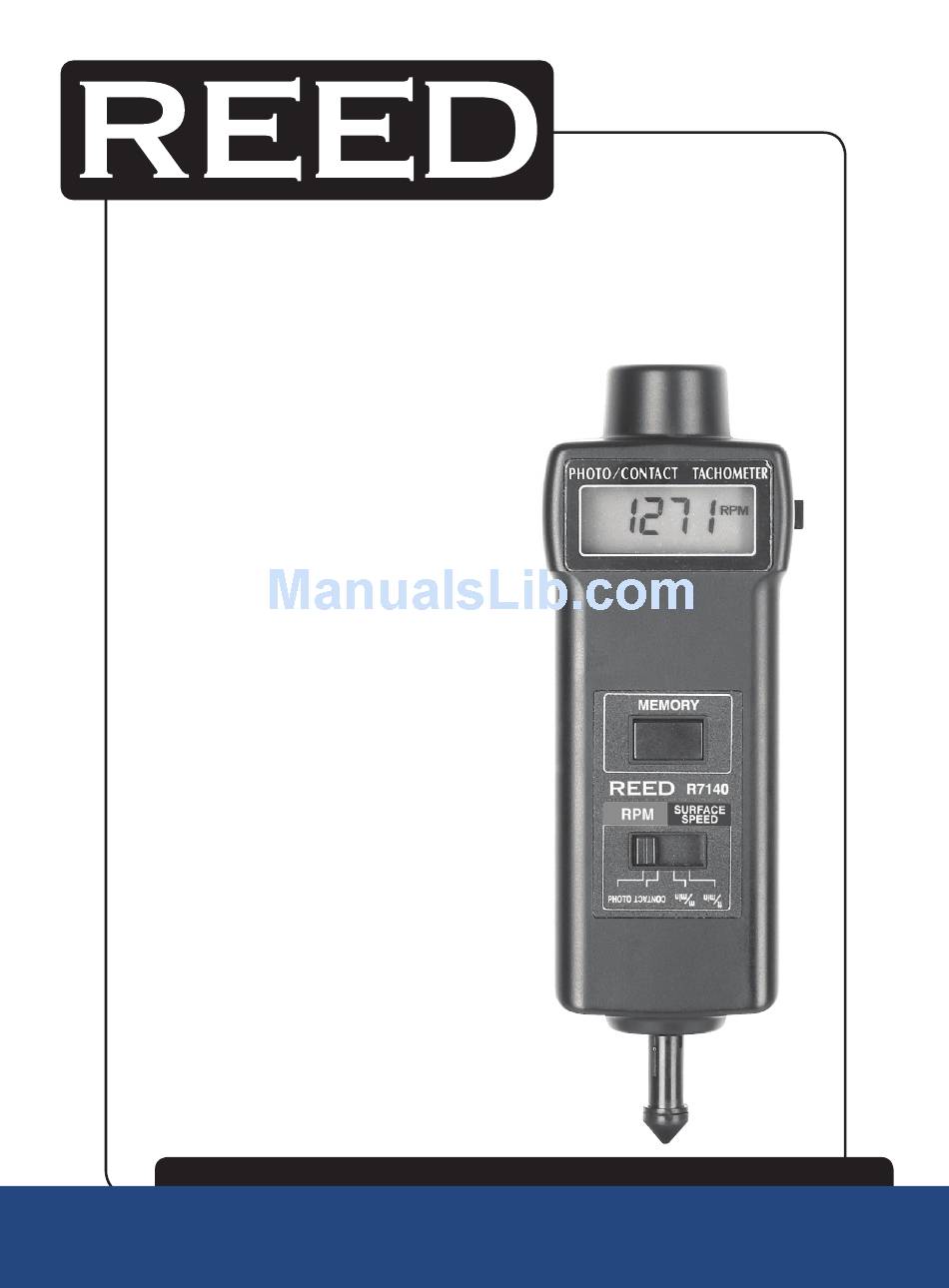

  • Page 1 INSTRUMENTS INSTRUMENTS R7140 Model Photo-Contact Tachometer Instruction Manual reedinstruments REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
  • Page 2: Table Of Contents

    • LCD Display reverses depending on measurement mode • Includes reflective tape, large and small cone tip adapters, funnel adapter, wheel adapter, batteries, and hard carrying case INSTRUMENTS reedinstruments REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
  • Page 3: Specifications

    Operating Humidity: 10-80% Dimensions: 8.5 x 2.6 x 1.5” (215 x 65 x 38 mm) Weight: 10.6oz (300g) Note: When using the test wheel, accuracy can be affected 0.5% of reading. INSTRUMENTS reedinstruments REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
  • Page 4: Instrument Description

    Soft Carrying Case (C-820) Instrument Description Reflective mark Signal light beam Monitor indicator Display Measure button Memory call button Function select switch Rotating ring Circumferential speed ring 10. Battery Compartment INSTRUMENTS reedinstruments REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
  • Page 5: Operating Instructions

    Slide the Function switch to m/min. (Surface Speed) or ft/min. (Surface Speed) Press the Measure button and simply attach the surface speed test wheel to the detector Release the Measure button when the reading stabilizes INSTRUMENTS reedinstruments REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
  • Page 6: Battery Replacement

    Open the Battery Cover at the back of meter and remove the battery Replace with 4 x 1.5 V AA/UM-3 batteries and reinstall the cover For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com INSTRUMENTS...
