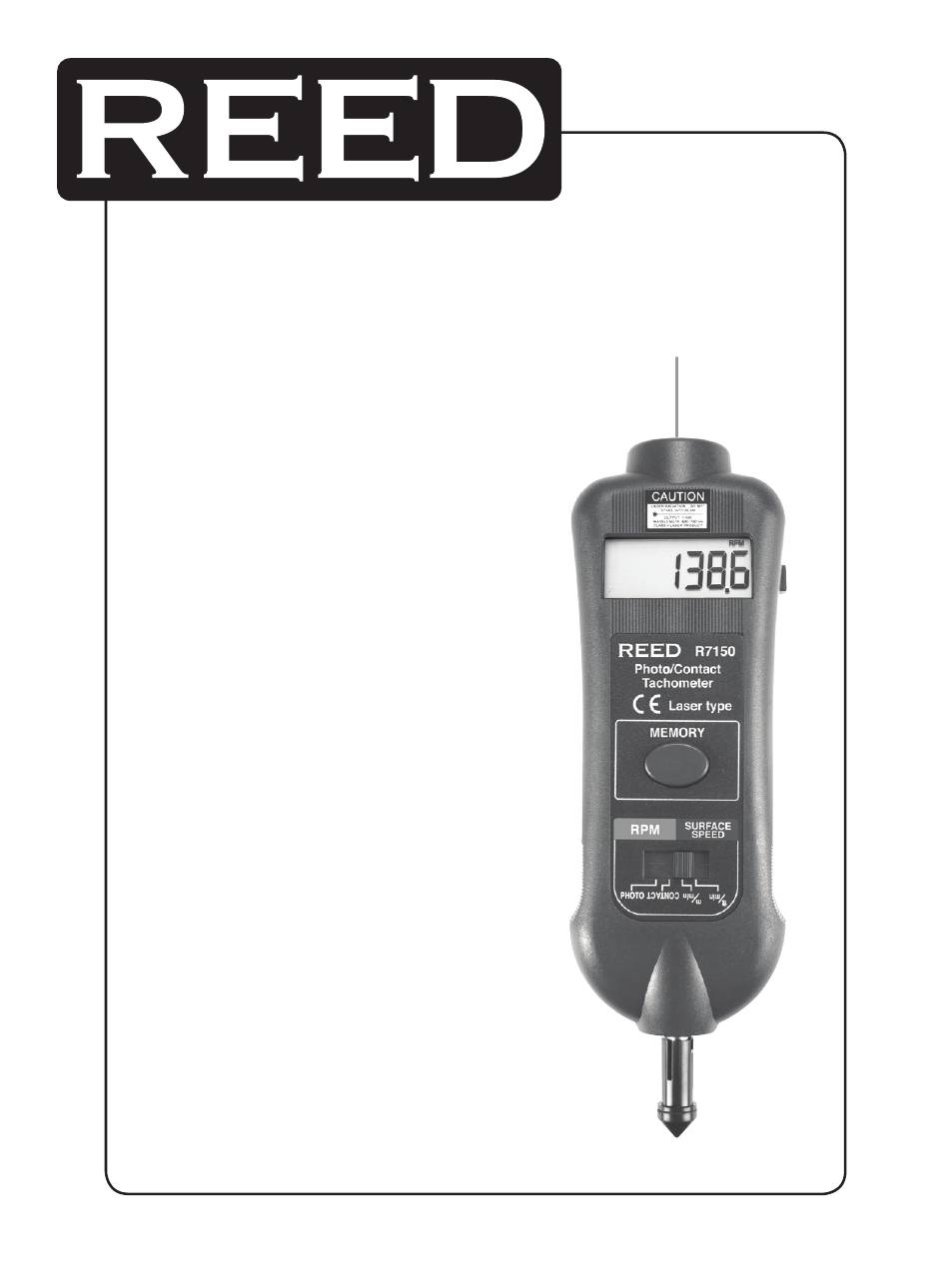

- Page 1 INSTRUMENTS R7150 Model Contact / Non-Contact Tachometer with Laser Instruction Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Table of Contents Features ..................2 Specifications ................2-3 Instrument Description ..............4 Operating Procedures ..............4-5 Battery Replacement ..............6 Features • Dual function unit with both contact and non-contact capabilities • Provides fast and accurate RPM measurements of rotating objects and surface speed measurements MPM (meter per min) and FPM (feet per min) •...
- Page 3 Basic Accuracy: ±(0.05% + 1 dgt.) Visible Indicator: Yes (Laser) Target Distance: 6.5ft (2000mm) (Photo) Response Time: <1 sec Sampling Time: Photo: 1 sec (over 60 RPM) Contact: 1 sec (over 6 RPM) Display Size/Type: 5 Digit LCD Display Auto shut-off: Internal Memory: Max, Min and Last Laser Class:...
- Page 4 Instrument Description Laser Beam RPM Adapter Display Measure Button Memory Call Button Function Switch Operating Procedures Photo laser tachometer measuring procedure Move the Function Switch to the Photo RPM position. Apply reflective tape to the object being measured. Press the Measure Button and align the Laser Beam with the applied target.
- Page 5 Surface Speed Measurement Move the Function Switch to the m/min. or ft/min. position. Press the Measure Button and attach the surface speed test wheel to the detector. Release the Measure Button when the reading stabilizes. Operation procedure for memory recall Last value, Max.
- Page 6 • Open the Battery Cover, using a flat screwdriver or small coin. • Replace batteries correctly and place the cover back on. For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com...
