REED R3001 Instruction Manual

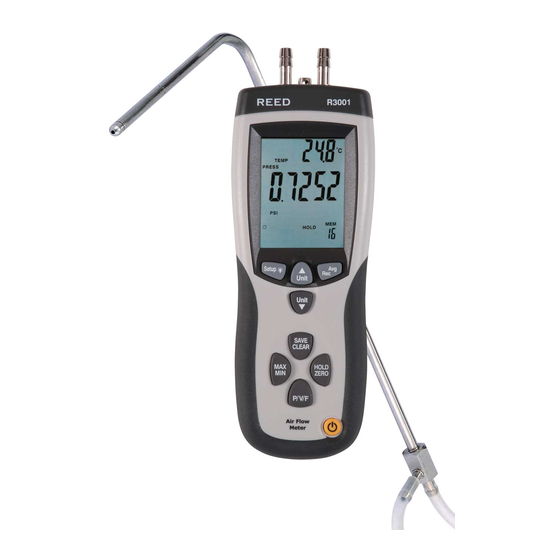

Anemometer/manometer
Hide thumbs Also See for R3001:
Table of Contents

Advertisement

Quick Links

Download this manual
Model
Pantone 534 Blue - 100/80/30/5
Anemometer/Manometer
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
Instruction
Manual
Find Quality Products Online at:
reedinstruments
www
GlobalTestSupply
www.
R3001
Black
.com
sales@GlobalTestSupply.com
com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R3001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REED R3001

Summary of Contents for REED R3001

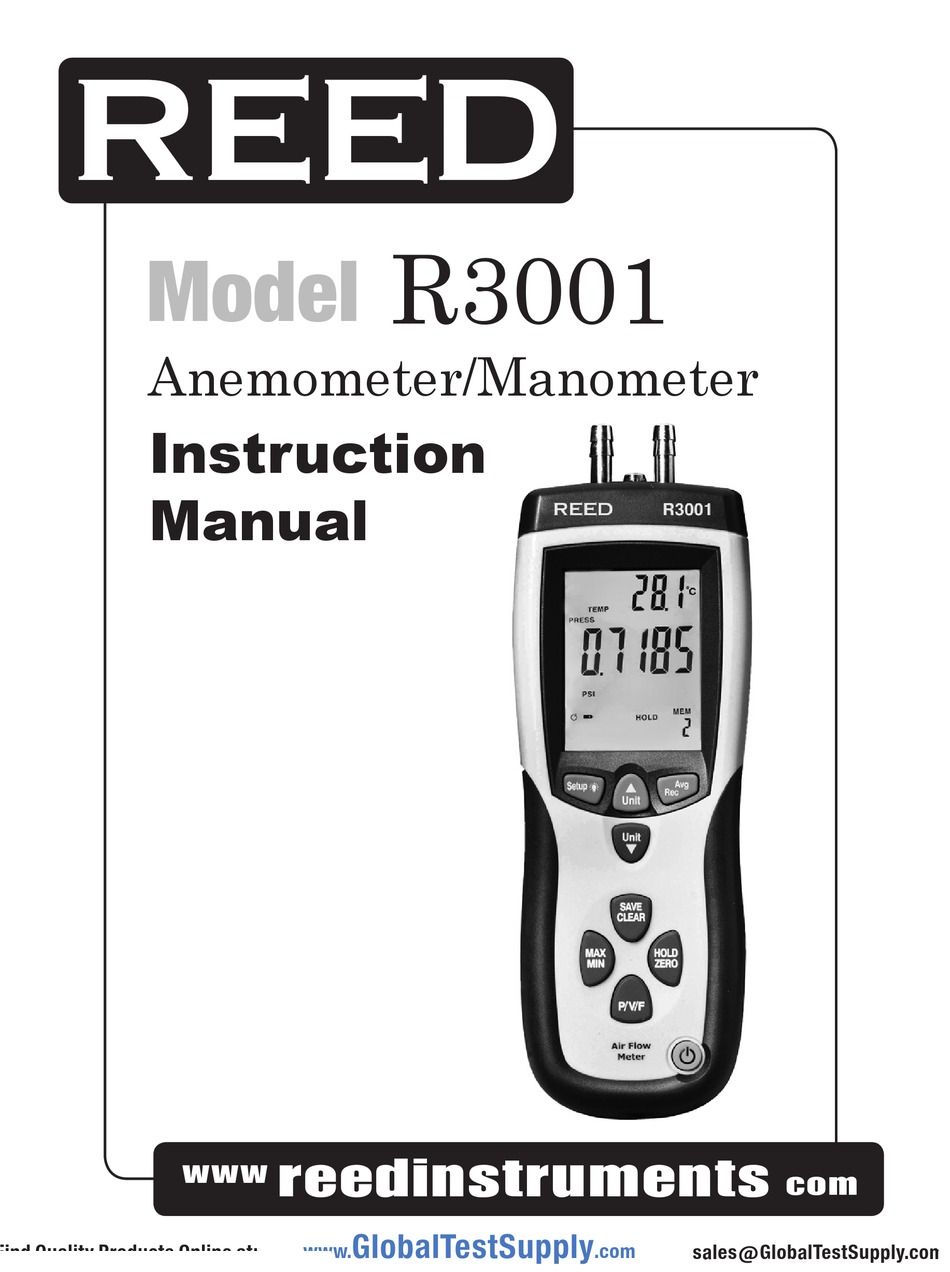

  • Page 1 Black R3001 Model Pantone 534 Blue - 100/80/30/5 Anemometer/Manometer Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

  • Page 2: Table Of Contents

    Table of Contents Features ..................3 Specifications ................3-4 Instrument Description ...............5-6 Operating Instructions ..............7-10 Measuring Pressure ..............7 Measuring Velocity ..............7 Measuring Flow ................8 Measuring Temperature .............. 8 Hold Function ................8 Minimum, Maximum, and Average Readings ....... 9 Saving Data ................

  • Page 3: Features

    Features • Measure and display air velocity, air flow volume, pressure and ambient temperature with a single, compact unit • Air velocity displayed in m/s, fpm, km/h, mph or knots • Air flow displayed in cfm or cmm • Pressure displayed in psi, mbar, inH O, mmH O or Pa •...

  • Page 4: Temperature Range

    Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red For service on this or any other REED product or information on other Yellow - 0/27/100/0 Pantone 123 Yellow REED products, contact REED Instruments at info@reedinstruments.com Blue - 100/80/30/5...

  • Page 5: Instrument Description

    Instrument Description 7. Save/Clear button 1. Input ( - ) port 8. Hold/Zero button 2. Ref ( + ) port 9. P/V/F measurement button 3. Average/Recall button 10. Max/Min button 4. Up button Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow 11.
  • Page 6 Display Description 11. Dimension unit 1. Time display setting 12. Setup mode indicator 2. Measurement mode 13. Clear memory 3. Primary display 14. Saved data number 4. Air velocity unit 15. Memory indicator 5. Pressure unit 16. REC, MAX, MIN and AVG indicators 6.

  • Page 7: Operating Instructions

    Operating Instructions Measuring Pressure 1. Press the power button to turn the meter on. Press the P/V/F button to enter Pressure Measurement mode. Press the Down button to select the unit of measurement. 2. Connect a single hose to the Input Port, leaving the Ref Port empty. 3.

  • Page 8: Measuring Flow

    Measuring Flow 1. Press the power button to turn the meter on. Press the P/V/F button three times to enter Flow Measurement mode. Press the Down button to select the unit of measurement. 2. The screen will display the duct size and shape. The meter stores the last used duct size and shape.

  • Page 9: Minimum, Maximum, And Average Readings

    Minimum, Maximum, and Average Readings 1. Press the Max/Min button to scroll through the maximum (MAX), minimum (MIN), or the average (AVG) readings. The elapsed time since entering MAX/MIN/AVG mode, or the time at which the minimum or maximum reading occurred will appear on the screen. 2.

  • Page 10: Deleting Saved Data

    Deleting Saved Data 1. Press the P/V/F button to select what mode to recall saved data from. 2. Press and hold the Avg/Rec button to view saved data. The last measurement will appear first. Use the Up and Down buttons to scroll through the saved data to select the reading that you wish to delete.
  • Page 11 Duct Shape & Parameters Setting 1. While in Option Setup mode, scroll to the option displayed as “Duct Shape” on the screen. 2. Press the Avg/Rec button to select this option, and press the Up and Down button to switch between Rectangle and Circular. 3.
  • Page 12 Auto Power Off 1. By default the meter will automatically shut off after 20 minutes of inactivity. To change this, while in Option Setup mode, scroll to the option displayed as “SLEEP” on the screen. 2. Press the Avg/Rec button to select this option, and press the Up and Down button to switch between ON or OFF.

  • Page 13: Error Codes

    Error Codes An error message will appear on the display if the meter fails an internal diagnostic test, which will also freeze all button function. • OL: Pressure or air velocity value is over range • -OL: Pressure value is below range • Error: air velocity or air flow is below range Battery Replacement 1.
  • Page 14 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow ________________________________________________ Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
  • Page 15 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow ________________________________________________ Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
  • Page 16 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow ________________________________________________ Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
