  • Page 1 Black R7100 Model Pantone 534 Blue - 100/80/30/5 Photo-Contact Pantone 485 Red - 10/100/100/5 Tachometer Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments...
  • Page 2 Table of Contents Features....................... 2 Specifications....................3 Instrument.Description................4 Measurement.Procedures................4-5 Trouble-shooting..................6 Battery.Replacement................... 6 Features •. Uses.the.microcomputer.(CPU).technique.and.junction.laser.technique. combining.both.a.Photo.Tachometer.(RPM).and.a.Contact.Tachometer. (RPM,.m/min).in.one.instrument •. Offers.a.wide.measuring.range.and.high.resolution.. •. Recalls.Max/Min.&.last.values.(simply.press.the.Memory.Call.Button) •. Contact.and.photo.values.can.be.switched.at.any.time •. Surface.speed.sensor.with.flute.vails.measure.speed.and.length.of.wire,. cable.and.rope.conveniently •. The.instrument.is.delicate.and.rugged,.using.durable.and.long-lasting. components •. Lightweight.housing.is.made.of.a.strong.ABS.plastic,.and.is.designed.to. fit.comfortably.in.either.hand •.

  • Page 3: Specifications

    Dampproof.accessories. Bag.of.4.bolts. Contact.speed.measurement.fitting. 3.Contact.rotational.speed.measurement.fittings. 4.AA.batteries Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Optional.Accessories:. Replacement.Wheel.(REED.Model.ST-WHEEL). Red - 10/100/100/5 Pantone 485 Red Replacement.Contact.Adapter.(REED.Model.ST-CONE) Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black...

  • Page 4: Instrument Description

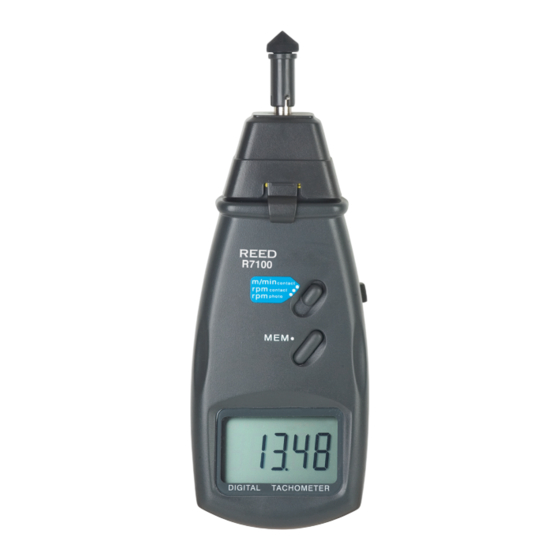

    Instrument Description 1..Surface.Speed.Wheel 2..Contact.Tachometer.Test.Device 3..Contact.Measuring.Device 4..Measure.Button 5..Function.Switch 6..Memory.Call.Button 7..Display.Window 8..Battery.Cover Measuring Procedures Photo Measurements 1..Apply.a.reflective.mark.to.the.object.being.measured..Slide.the.. function.switch.to.the."rpm.photo".position. 2..Depress.the.Measure.button.and.align.the.visible.light.beam.with.the. applied.target..Verify.that.the.monitor.indicator.lights.when.the.target. aligns.with.the.beam. Contact Tach Measurements 1..Slide.the.function.switch.to.the."rpm.contact".position..Install.the. proper.RPM.adapter.on.the.shaft. 2..Depress.the.Measure.button.while.lightly.pressing.the.rpm.adapter. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow against.the.center.hole.of.rotating.shaft..Be.certain.to.keep.the.. Red - 10/100/100/5 Pantone 485 Red alignment.straight..Release.the.Measure.button.when.the.display..

  • Page 5: Surface Speed Measurements

    Surface Speed Measurements 1..Slide.the.function.switch.to.the."m/min.contact".position..Install.the. surface.speed..wheel.on.the.shaft.instead.of.the.rpm.adapter. 2..Depress.the.Measure.button.and.attach.the.surface.speed.wheel.to. the.detector..Release.the.Measure.button.when.the.display.reading. stabilizes. Note:.When.using.the.Surface.Speed.Wheel.(see.#1.in.figure.on.page.4.or. figure.below).it's.important.to.keep.in.mind.that.the.measurements. obtained.when.using.the.inside.of.the.wheel.will.need.to.be.multi- plied.by.0.9.for.the.actual.measurement..The.measurement.you.get. when.using.the.outside.of.the.wheel.will.be.fine. Surface Speed Wheel Measurements.taken.inside.the. wheel.need.to.be.multiplied.by. 0.9.for.the.actual.measurement. Memory Recall The.maximum.value,.minimum.value.and.last.values.obtained.immedi- ately.before.turning.off.the.Mesure.buttom..will.automatically.be.stored. (memorized)..To.display.this.value.in.the.units.display,.press.the.Memory. button..The."UP".represents.the.maximum.value,.the."DN".represents.the. minimum.value.and."LA".represents.the.last.values. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow...

  • Page 6: Troubleshooting

    3..Replace.with.4.new.AA.batteries,.check.the.polarization.is.correct,.. and.reinstall.the.cover. Permanent.damage.to.the.circuit.can.result.from.incorrect.installation. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 For.service.on.this.or.any.other.REED.product.or.for.information.on.other. Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow REED.products,.contact.REED.Instruments.at.info@reedinstruments.com. Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black Rich Black -...
