Summary of Contents for REED R8050

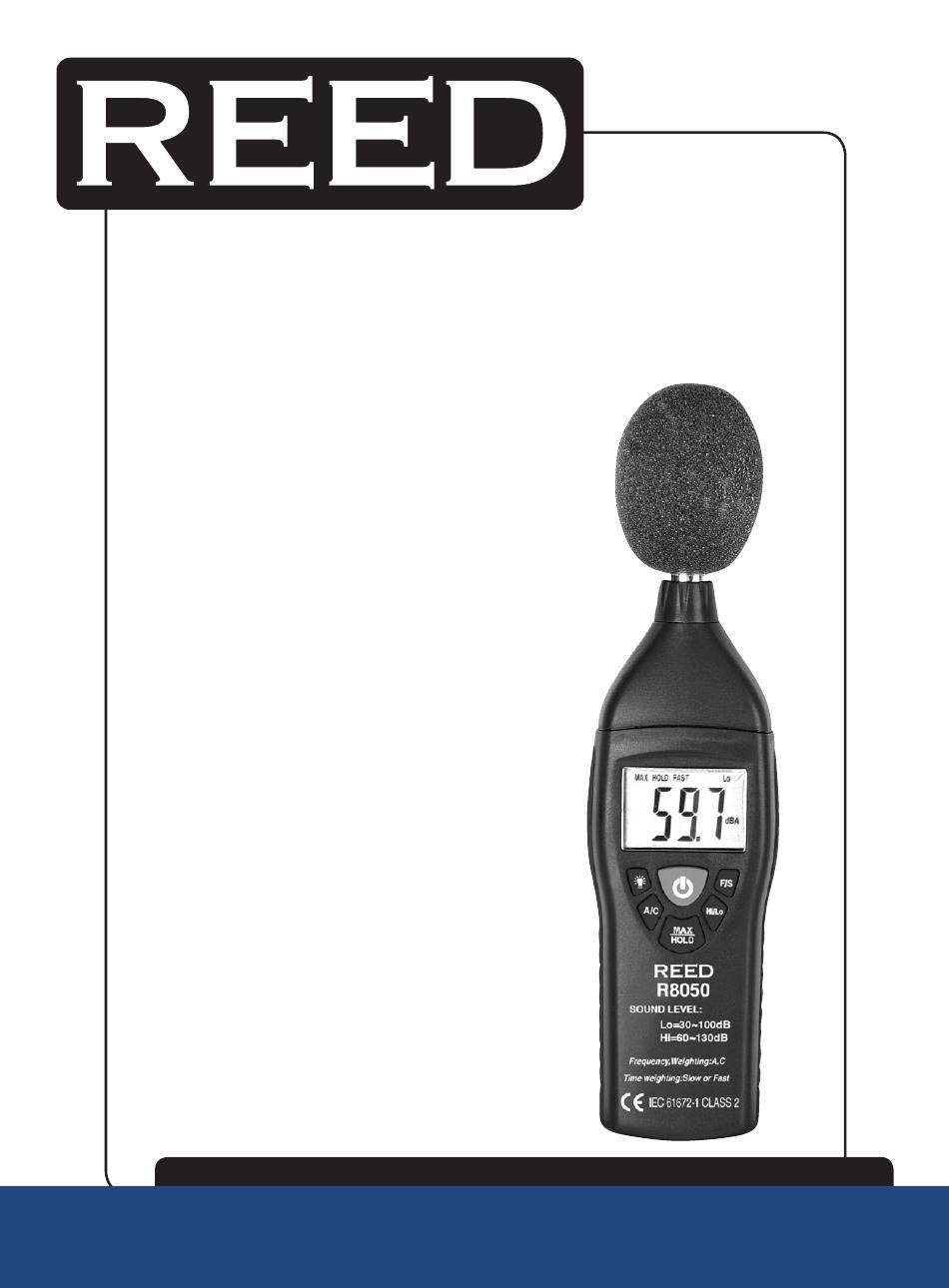

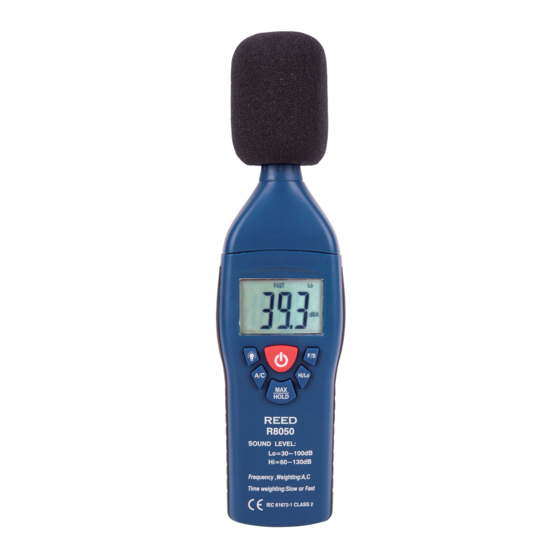

- Page 1 INSTRUMENTS INSTRUMENTS R8050 Model Sound Level Meter Instruction Manual reedinstruments REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Repairs or servicing not covered in this manual should only be performed by qualified personnel • Periodically wipe the case with a dry cloth • Do not use abrasives or solvents on this instrument INSTRUMENTS reedinstruments REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 3: Specifications
About 50 hrs. (alkaline battery) Dimensions: 210 x 55 x 32mm (8.26 x 2.16 x 1.25”) Weight: 230g (8.11oz) (including battery) IIncludes: Batteries and carrying case Optional Accessories: Tripod (model BS-6) INSTRUMENTS reedinstruments REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 4: Instrument Description
Instrument Description INSTRUMENTS reedinstruments REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 5 S (Slow Response): For checking average level of fl uctuating noise 7. level Range Select Button Lo/Hi LO: 30~100dB; HI: 60~130dB When “OVER” is indicated, the meter automatically switches to the other measurement range. INSTRUMENTS reedinstruments REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 6: Operating Instructions
Do not store or operate the instrument in high temperature and high humidity environments. • Keep microphone dry and avoid severe vibrations. • When not in use, please take the battery out and keep the instrument in a low humidity environment. INSTRUMENTS reedinstruments REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 7: Battery Replacement
Battery Replacement: When the battery voltage drops below the operating voltage, “BAT” appears in the display and the existing battery should be replaced with a new one. INSTRUMENTS reedinstruments REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Calibration Procedure
Calibration Procedure To calibrate the REED R8050, an external calibrator that can provide a 94.0dB signal at 1 kHz is required (REED R8090) in addition to a small screw-driver. 1. Open the battery compartment and locate the two calibration potentiometers behind the 9V battery (see diagram) 2.
