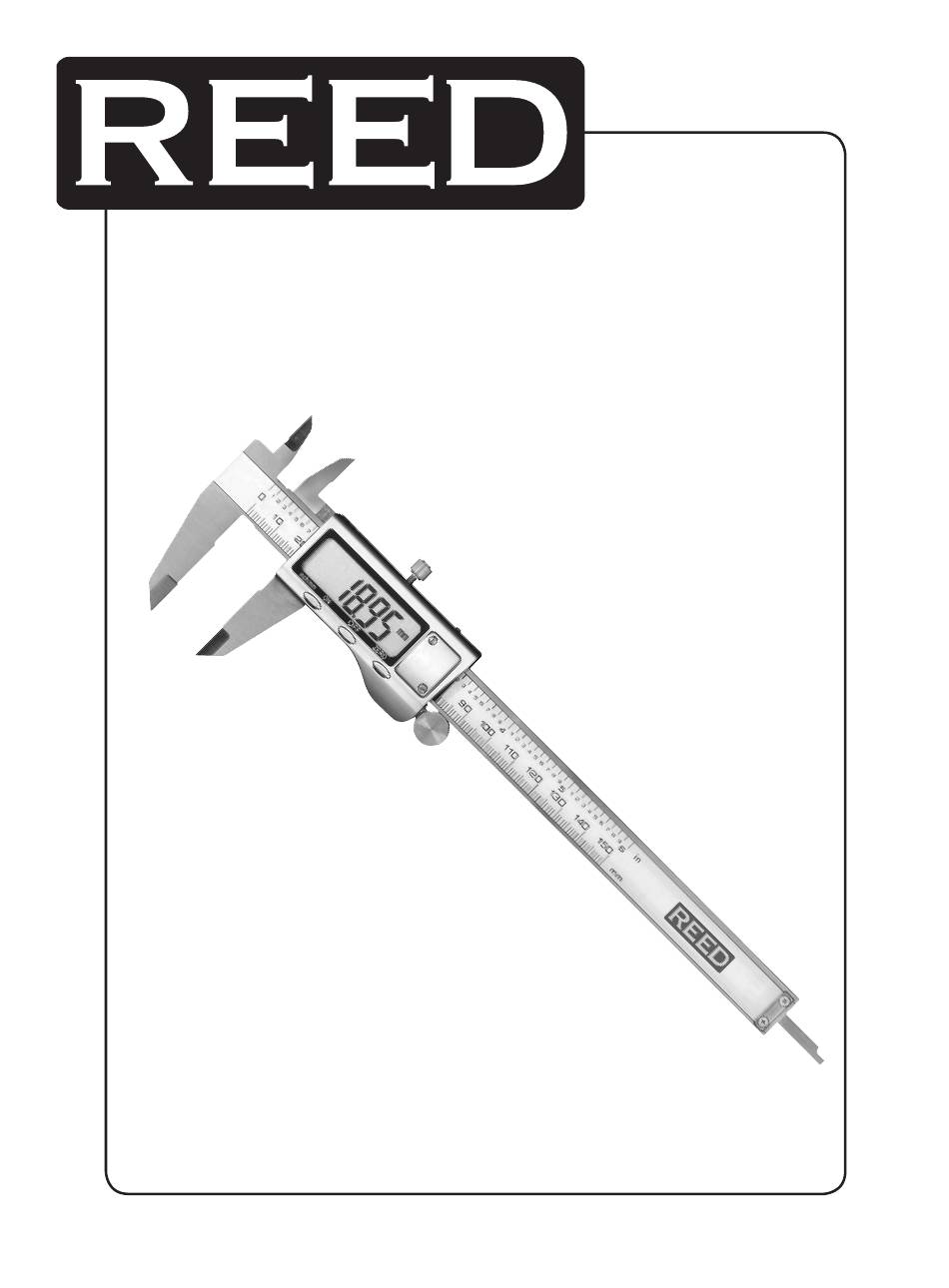

- Page 1 INSTR R7400 Model Digital Caliper INSTR Instruction Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Table of Contents Safety ......................3 Features ...................... 3 Applications ....................3 Specifications ..................... 4 Instrument Description ................5 Operating Instructions ................6-7 Troubleshooting ..................8 Maintenance and Care ................8 reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 3: Safety
Safety For your safety and care of this instrument, please read these instructions carefully prior to use. Features • Large, easy-to-read 6-digit LCD display • User selectable unit of measure (in/mm) • Zero adjustment button • Lock screw to hold slide in position • Hardened stainless steel head and body • Low battery indicator and auto shut off Applications • Fabricating • QA departments • General industrial use reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 4: Specifications
Specifications Measuring Range: 0 to 6" (0 to 150mm) Accuracy: ±0.001" (.03mm) Resolution: 0.0005" (0.01mm) Display: 6-digit LCD Zero Button: Auto Shut Off: Low Battery Indicator: Power Supply: 1.5V Battery (LR44) Product Certifications: Operating Temperature: 32 to 104°F (0 to 40°C) Storage Temperature: -4 to 140°F (-20 to 60°C) Operating Humidity Range: 0 to 80% Dimensions: 9.3 x 3 x 0.6" (235 x 75 x 15 mm) Weight: 5.6oz (160g) reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 5: Instrument Description
Instrument Description 1. ON/Metric/Inch Button 2. OFF Button 3. Zero Adjustment Button 4. Battery Compartment Cover reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 6: Operating Instructions
Operating Instructions Measurements of external dimensions Measurements of internal dimensions continued ... reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 7 Measurements of depth Differential method measurement (application of zero setting) PRESS PRESS 20.02 reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 8: Troubleshooting
2. Replace battery. Maintenance and Care 1. Keep body of instrument clean and prevent liquid from getting into slider as it may damage the instrument. 2. Display should be cleaned with a clean, dry, lint-free cloth. Lubricate instrument with a few drops of clock oil. Avoid using acetone and alcohol. 3. Keep battery compartment clean and free of corrosion. For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com. reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
