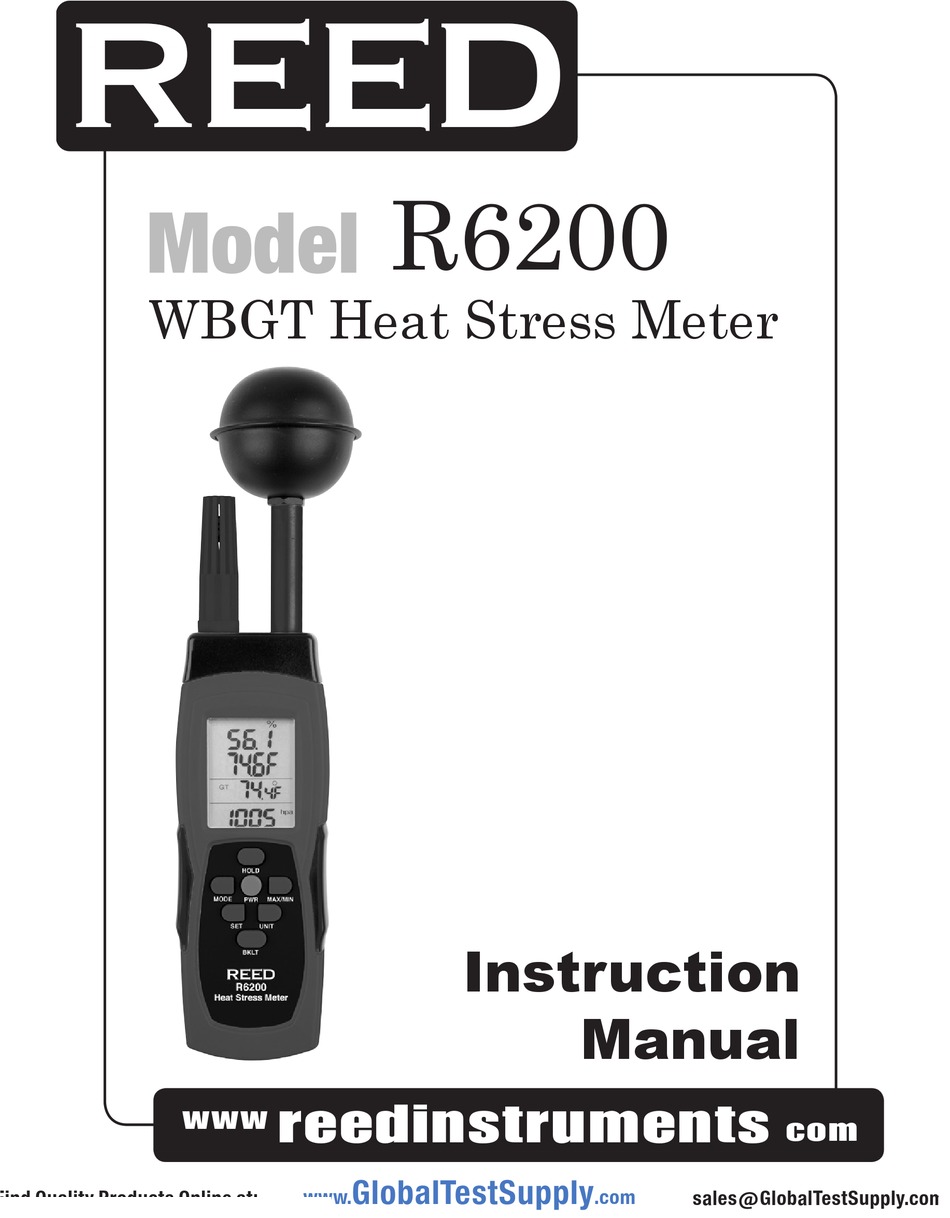

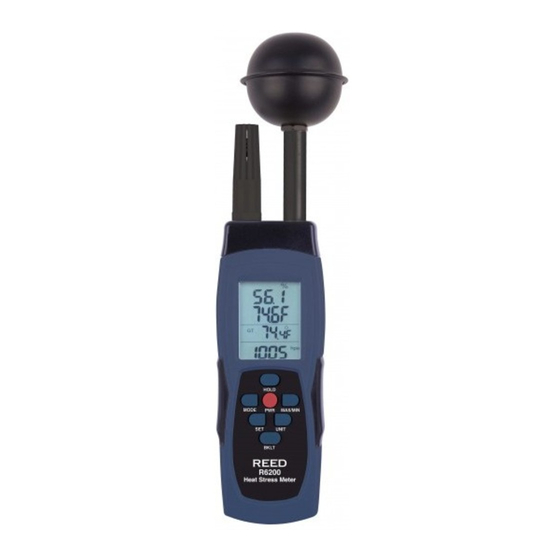

- Page 1 INSTRUMENTS INSTRUMENTS R6200 Model WBGT Heat Stress Meter Instruction Manual reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Features
Table of Contents Features .......................2 Specifications ..................3-4 Product Description ................4-5 Operating Instructions ................6-12 Features • Measures ambient temperature, humidity, wet bulb temperature, black globe temperature, WBGT (wet bulb global temperature), heat stress index, dew point and pressure • Heat Stress Index measures how hot it feels when humidity is combined with temperature, air movement and radiant heat • Black Globe Temperature (GT) monitors the effects of direct solar radiation on an exposed surface • In/Out function displays the WBGT value with or without direct sun exposure • Multi-line backlit LCD display simultaneously displays 4 measurements • Maximum, Minimum, Average and Data Hold functions • Internal memory stores up to 99 measurements • User selectable unit of measure (°F or °C) • User adjustable WBGT threshold alarm (audible) • Tripod mount for long-term monitoring • Low battery indicator and auto shut off • Includes batteries... -
Page 3: Specifications
Specifications Temperature Measuring Ranges Air Temperature: 32 to 122°F (0 to 50°C) Black Globe: 32 to 176°F (0 to 80°C) WBGT (Indoor): 59 to 138.2°F (15 to 59°C) WBGT (Outdoor): 59 to 132.8°F (15 to 56°C) Accuracy Air Temperature: ±1.1°F (±0.6°C) Black Globe: ±0.6°C (20~50°C), other ±1°C WBGT (Indoor): ±2.7°F (±1.5°C) WBGT (Outdoor): ±3.6°F (±2°C) Resolution 0.1°F/°C Humidity Measuring Ranges 0 - 99.9% RH Accuracy (@ 25°C) 10% to 70% RH: ±3% Rest of Range: ±5% Resolution 0.1% RH Barometric Pressure Measuring Range 300-1100 hPa (inHg, mmHg switchable) Accuracy ±1.5hPa Resolution 1 hPa, 0.1 inHg, 0.1 mmHg General Specifications Dew Point/ Wet Bulb Calculation Response Time 1 sec Display Backlight Yes (non-condensing) Data Hold Min Max Average Yes Internal Memory... -
Page 4: Product Description
Auto Shut-Off Yes (after 15 mins/off) User Adjustable WBGT Alarm Yes (audible) Tripod Mountable Low Battery Indicator Power Supply 4 x AAA batteries, Optional AC Adapter Product Certifi cations CE, RoHS Operating Temperature 32 to 122°F (0 to 50°C) Operating Humidity <80% (non-condensing) Storage Temperature -4 to 122°F (-20 to 50°C) Storage Humidity <90% (non-condensing) Dimensions Instrument: 6.4 x 2.3 x 1.3” (162 x 58 x 32 mm) Black Brass Ball Diameter: 2.0” (50 mm) Weight 4.8oz (136g) Product Description LCD Display a. Relative Humidity b. Ambient Temperature c. GT: Black globe temp. (Brass Ball) WBGT: Wet bulb global temp. HI: Heat index DPT: Dew point temp. - Page 5 Key Pad Button Description Power instrument on or off / Activate or inactivate audible beeping Freeze current measurements on display / Increase digit / HOLD Scroll forward Turn backlight on or off / Decrease digit / Scroll backwards BKLT / Change pressure unit MAX/MIN Review Max, Min, and Average readings Enter WBGT alarm value setting / Toggle between temperature modes: Global Temperature (GT) Wet Bulb Global Temperature (WBGT) MODE Heat index (HI) Dew Point (DP) Wet Bulb Temperature (WB) Change pressure value / Record measurements to memory Toggle Temperature unit between °C and °F / Select UNIT desired digit when setting alarm threshold INSTRUMENTS reedinstruments INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 6: Operating Instructions
Operating Instructions POWER ON/OFF Press the ”PWR” button to turn the meter on, press and hold for 2 seconds to turn the meter off. When the meter is powered on, the LCD displays the WBGT mode and the previously selected “In door or Out door” WBGT measurement mode. Shortly after, a beep will sound and the instrument will begin taking measurements. MAX/MIN/AVG Press the MAX/MIN button to cycle the display through the Maximum, Minimum, Average measurements of Ambient Temperature, Global Temperature and Relative Humidity since the instrument was powered on. Press and hold the MAX/MIN button until “CLr” appears on the bottom of LCD. The instrument will automatically return to normal measurement mode once the readings have cleared. INDOOR/OUTDOOR Temperature MODE SELECTION When in the WBGT mode, press and hold the UNIT button to toggle between indoor or outdoor temperature. The instrument automatically calculates the measurement using the following parameters: a. Outdoor formula WBGT = 0.7Tw (wet bulb temp) + 0.2Tg (globe temp) + 0.1Td (air temp.) b. Indoor formula WBGT = 0.7Tw (wet bulb temp) + 0.3Tg (globe temp) INSTRUMENTS reedinstruments INSTRUMENTS GlobalTestSupply www. -
Page 7: Backlight Function
SWITCH UNIT OF TEMPERATURE °C/°F Press the UNIT button to switch between °C and °F. SWITCH UNIT OF PRESSURE Press the BKLT button to change the pressure measuring unit. (hpa--> inHg--> mmHg). TEMPERATURE DISPLAY MODES Press the MODE button to toggle through the GT (Globe temperature) --> WBGT temperature --> HI (Heat index) --> DPT (Dew point) --> WB (Wet bulb temperature measurements). NOTE: Verify the meter is not displaying the MAX/MIN/AVG. If so, press the MAX/MIN button until the icons have disappeared. FREEZE READING Press the HOLD button under normal measurement and a “HLD”... - Page 8 INTERNAL MEMORY The R6200 has the ability to record up to 99 points internally. a. Press the SET button to save a reading (Temp. RH). b. The REC icon shows will display next to the temperature reading and record number shows on the bottom of LCD for 2 seconds. To recall recorded data: a. Press and hold the MODE button to review memory Temperature, RH and recorded number. b. Keep pressing the HOLD button to review next data or press and hold the BKLT button to review the last stored data entry. c. Press the MODE button twice, to escape memory function. d. Under data recall mode, press and hold the SET button to clear the memory. LCD will show “---”. WBGT AUDIBLE ALARM THRESHOLD SETTING (The default WBGT temperature alarm value is set at 31°)
-
Page 9: Specifications
TURN ON/OFF ALARM FUNCTION After setting up the threshold, press the PWR button and the bell icon button and the bell icon will display on the screen indicating the alarm is activated. Press the PWR button again to disable alarm function. GLOBAL TEMPERATURE/AMBIENT TEMPERATURE/ HUMIDITY OFFSET FUNCTION It is recommended that this unit be calibrated once a year to ensure measurements stay within manufacturer’s specifi cations. In the case that a user would like to perform self-verifi cation with a trusted calibration source the following offset procedures have been provided. To enter the offset mode: a. Power OFF the meter. b. Press and hold the MODE and BKLT buttons. c. Press the POWER button until the screen shows all 3 parameters in “0.0”, then release the MODE+BKLT buttons. NOTE: To offset temperature in °F, hold MAX/MIN and press the POWER button to select °C or °F. -
Page 10: Error Code
decrease the value. • Press the MODE and POWER buttons to save the value. • Repower the meter to return normal measurement mode. Relative Humidity Offset • Hold the MAX/MIN button and press the HOLD button at the same time to increase the value. • Hold the MAX/MIN button and press the BKLT button at the same time to decrease the value. • Press the MODE and POWER buttons to save the value. • Repower the meter to return normal measurement mode. Pressure Offset Function a. Press and hold the SET button until the LCD shows “0.0 hpa”. b. To increase the value press the HOLD button. c. To decrease the value press the BKLT button. d. Press and hold the POWER button to save the set value. e. The LCD will display “SAVE” and return to normal measurement mode. NOTE: The compensation range is ±3 hpa. - Page 11 For service and/or information on this or any other REED product, contact REED Instruments at info@reedinstruments.com. Notes __________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ INSTRUMENTS reedinstruments INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
