- Page 1 Black R6015 Model Pantone 534 Blue - 100/80/30/5 Wood Moisture Meter Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 For service on this or any other REED product or information on other Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow REED products, contact REED Instruments at info@reedinstruments.com... -
Page 3: Features
7 x 1.9 x 2” (180 x 50 x 31mm) Weight: 6.1 oz (175g) Includes: Remote hand-press moisture probe, temperature probe, protective cap, replacement pins, two AAA batteries, and a soft carrying case Optional Accessories: Replacement pins (model R6015-P) Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5... -
Page 4: Operating Instructions

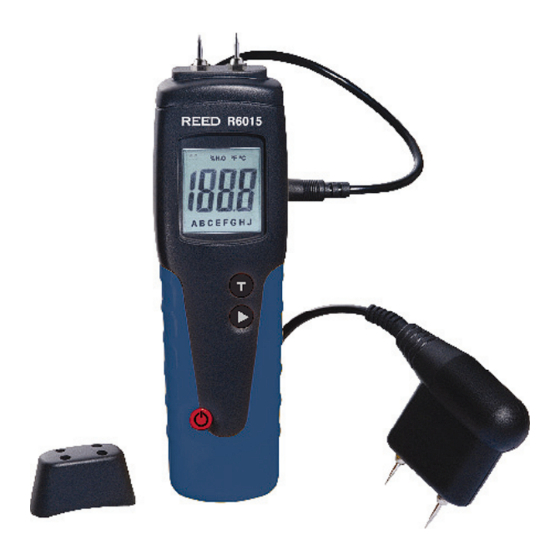

Operating Instructions This instrument is a conductivity moisture meter specifically designed for the timber industry. This instrument has eight calibration scales enabling the user to take accurate moisture measurements in 150 wood species. Moisture measurements can be taken using the integral pin electrodes or by using the heavy-duty moisture probe. When used with the tem- perature probe the moisture measurements are automatically corrected with respect to the ambient temperature. This instrument is switched ON by pressing the button and switched OFF by pressing the button for approx 3 seconds. The default auto power-off for this instrument is 5 minutes but can be set manually (see auto power-off set-up). Taking a Measurement Remove the cap to expose the needle electrodes or connect the heavy- duty moisture probe on the right hand side of this instrument and switch the instrument on by pressing the button. Select the appropriate wood calibration scale (A, B, C, E, F, G, H or J) by referring to the enclosed wood calibration table (see calibration table for wood and common timber species) and by pressing the button. Push the needle pins or the heavy-duty moisture probe pins into the wood and observe the reading in the LCD display. Measuring Without Temperature Probe This instrument is calibrated for wood at 20°C (68°F). In general, timber that is hotter than 20°C will give higher readings and timber colder than 20°C will give lower readings. An approximate manual correction of 0.5% moisture content per 5°C may be subtracted from timber that is above 20°C. For timber that is below 20°C, a manual correction of 0.5% mois- ture content per 5°C may be added to the measured value. Automatically Temperature Corrected (ATC) Switch the instrument ON and select the appropriate wood calibration Blue - 100/80/30/5 scale as detailed in ‘Taking a Measurement’. Using a hammer and nail of... -
Page 5: Auto Power-Off Set-Up
Connect the temperature probe into the instrument via the temp socket. Using the instrument to measure timber you can obtain the automati- cally temperature corrected (ATC) moisture value. If you need to read the current temperature of the timber press the button, then the LCD will display the temperature. Press the button again and the LCD will display the other °C or °F temperature. Press the button and the LCD will display the moisture value again. Auto Power-Off Set-up To change the default auto power-off times press the buttons together. Hold the button and press the button to change the auto power-off time (to either disable the auto power-off or to set it from 1 to 9 minutes) by changing the code. 0 disables the auto power-off function, 1 sets the instrument to auto power-off in one minute, 2 sets it to two minutes, 3 to three minutes, and respectfully up to 9 for nine minutes for the instrument to auto power-off. Calibration Check There are two checked calibrators in the cap of this instrument. When checking the calibration, the A scale should be selected and the tempera- ture probe must be disconnected. Use the needle to touch the two poles of calibrator. If correctly calibrated, the instrument will register %H values in the range 17.7 to 18.3 (at the “T” calibration) and in the range 25.5 to 26.5 (at “B” calibration). If the range is over +/-1 the Instrument can’t accurately measure the moisture of timber. Open the back cover and adjust the rheostat to make the tolerance meet the range. Care and Maintenance When the instrument is not in use, keep it in its pouch together with its accessories. Store the kit in a stable, dust-free environment out of direct sunlight. Remove the batteries from the instrument if it is to be stored for periods of more than one month, or when the battery symbol appears on the display. Be sure to check the condition of the accessories used with Blue - 100/80/30/5 Pantone 534 Blue... -
Page 6: Calibration Table For Wood
Calibration Table for Wood The calibration data in the below table is based on standard tests by oven drying commercial samples of the various wood species, between 7% and fiber saturation. Above fiber saturation point (25%-30%) readings are approximate and only generally apply to wood that has been dried and re-hydrated. Readings higher by 1%-2% may be obtained where wood has been impregnated with a water-borne preservative. High readings obtained with some plywood of peculiar composition must be treated with caution. For measuring building materials select scale A and refer to the following table so you can obtain the building material moisture value. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black... -
Page 7: Common Timber Species
Common Timber Species Cypress, Japanese (18-28%mc) Guarea, White Spruce, Japanese (18-28%mc) Santa Maria Cypress, Japanese (8-18%mc) Cedar, WestIndian Spruce, Japanese (8-18%mc) Mahogany, West Indian Meranti, Red (dark/light) Birch, European Redwood, Baltic (European) Cherry, European Spruce, Norway (European) Empress, Tree Ash, European Fir, Noble Ash, Japanese Guarea, Black Banga Wanga Kauri, Queensland Birch, Yellow Mahogany, African Boxwood, Maracaibo Queensland Kauri Fir, Grand Walnut, African Gum, Spotted Cordia, American Light Maple, Pacific Pine, American long leaf Maple, Rock Pine, American pitch Maple, Sugar Pine, Caribbean Pitch Myrtle, Tasmanian Pine, Nicaraguan Pitch Oak, European Cedar, Western Red Oak, Japanese Gum, American Red... - Page 8 Gum, Saligna Chestnut Gum, Southern Coachwood Maple, Queensland Dahoma Meranti, White Danta Pine, Bunya Erimado Pine, Huon Greenheart Pine, Maritime Gurjun Pine, Parana Hiba Pine, Red Hickory Redwood, Californian Hyedunani Pine, Japanese Black Iroko Beech, European Ironbank Hemlock, Western Jarrah Larch, European Jelutong Larch, Japanese Karpur Oak, Tasmanian Karri Pine, Corsican Keruing Pine, Hoop Kuroka Pine, Ponderosa Lime Pine, Radiata Loliondo Pine, Sugar Makore Queensland Walnut...
- Page 9 Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For service on this or any other REED product or information on other Red - 10/100/100/5 REED products, contact REED Instruments at info@reedinstruments.com Pantone 485 Red Yellow - 0/27/100/0...
- Page 10 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 ________________________________________________ Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
- Page 11 Bois à caoutchouc Wawa Santa Maria Wandoo Sapele Tilleul d’Amérique Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Pour service ou information sur ce produit ou tout autre produit REED, Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow communiquez avec REED Instruments à l’adresse info@reedinstruments.com Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black...
- Page 12 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 ________________________________________________ Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
