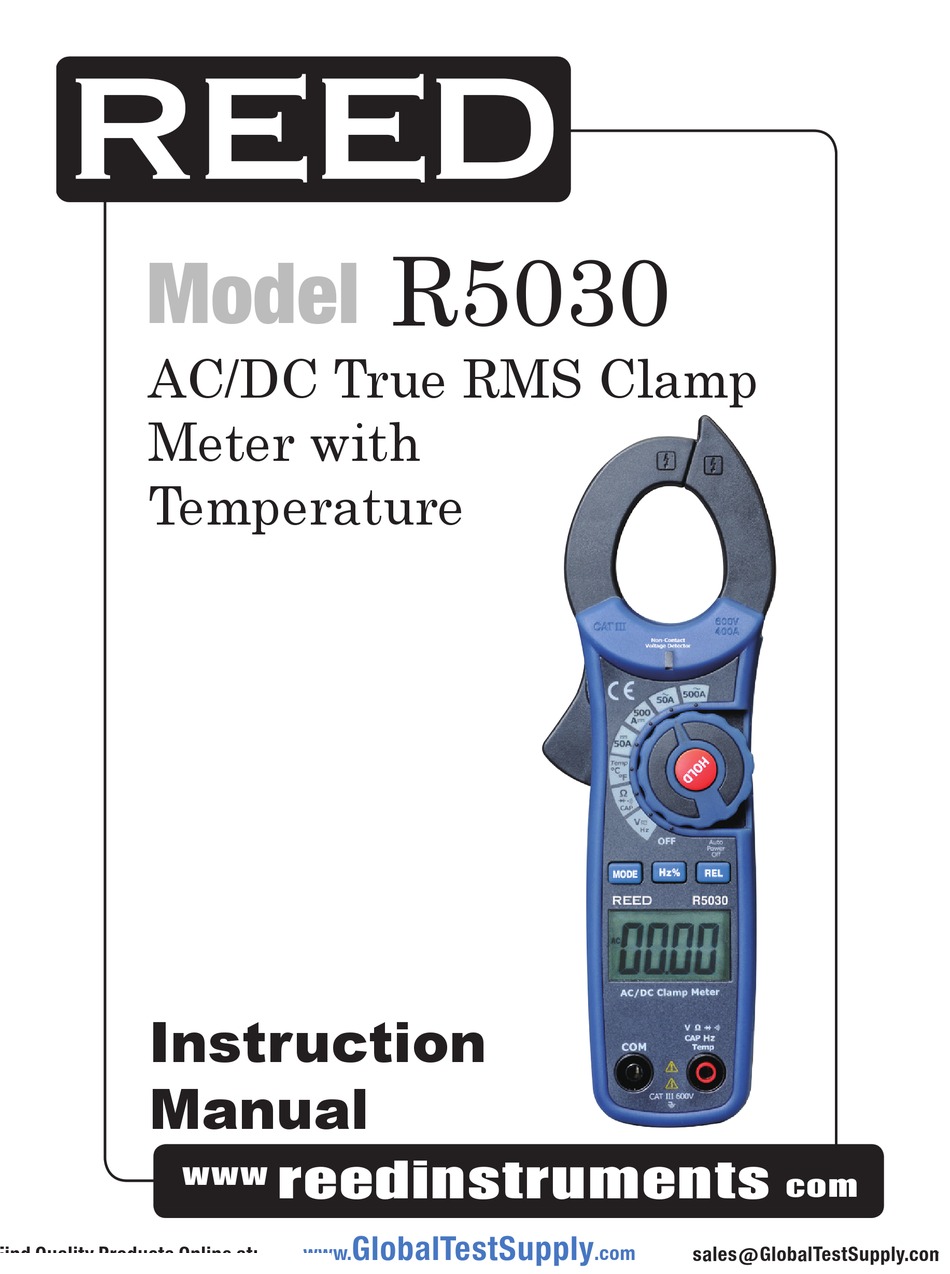

- Page 1 Black R5030 Model Pantone 534 Blue - 100/80/30/5 AC/DC True RMS Clamp Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Meter with Temperature Instruction Manual reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Table of Contents Safety .................... 3 Features ..................4 Specifications ................4-5 Instrument Description ..............6 Operating Instructions ..............7-10 AC/DC Current Measurements ........... 7 AC/DC Voltage Measurements ........... 7 Resistance Measurements ............7 Continuity Test ................8 Diode Test ................... 8 Capacitance Measurements ............ -
Page 3: Safety
Safety • Do not exceed the maximum allowable input range of any function • Do not apply voltage to the meter when resistance function is selected • Set the function switch OFF when the meter is not in use Warning •... -
Page 4: Features
Features • Measures AC/DC Current, AC/DC Voltage, Resistance, Capacitance, Frequency, Duty Cycle, and Temperature with Type K Thermocouple Probe • Diode Test and Continuity Check • Auto Power-Off and Backlight • Data Hold and Zero/Offset functions • 50,000-count LCD displays low battery and over-range indications •... - Page 5 Electrical Specifications Function Range Accuracy (% of rdg) 50.00 ADC DC Current ± (2.5% +30 digits) 500.0 ADC 50.00 AAC AC Current True RMS ± (2.8% +30 digits) (50Hz to 60 Hz) 500.0 AAC 500.00 mVDC ± (0.1% + 5 digits) 5.0000 VDC DC Voltage 50.000 VDC...
-
Page 6: Instrument Description
Instrument Description Non-Contact Voltage Detector Current clamp Non-Contact LED indicator Clamp trigger MODE select button LCD display COM input jack Data Hold and Backlight button Rotary Function switch 10. Relative button 11. Hz% Hold button 12. V Ω CAP TEMP Hz jack Display Description Auto range mode indicator Units of measurement... -
Page 7: Operating Instructions
Operating Instructions AC/DC Current Measurements Rotate the Function switch to the 500ADC, 50ADC, 500AAC or 50AAC position. If the range needed is not known, select the higher range first then move to the lower range if necessary. Press the trigger to the open jaw and fully enclose one conductor. -
Page 8: Continuity Test
Continuity Test Insert the black test lead into the negative COM terminal and the red test lead into the positive V diode terminal. Press the MODE button until the “Continuity indicator” appears on the display. Touch the test probe tips across the circuit or component under test. -
Page 9: Frequency/Duty Cycle Measurements
Frequency/Duty Cycle Measurements Set the rotary function switch to the V position. Press the Hz/% button to indicate “Hz” in the display. Insert the black test lead into the negative COM terminal and the red test lead into the positive V terminal. Touch the test probe tips to the circuit under test. -
Page 10: Non-Contact Ac Voltage Measurements
Non-Contact AC Voltage Measurements Touch the probe tip to the hot conductor or insert into the hot side of the electrical outlet. If AC voltage is present, the detector will light up. The conductors in electrical cord sets are often twisted. For best results, rub the clamp tip along a length of the cord to assure placing the tip in close proximity to the live conductor.
