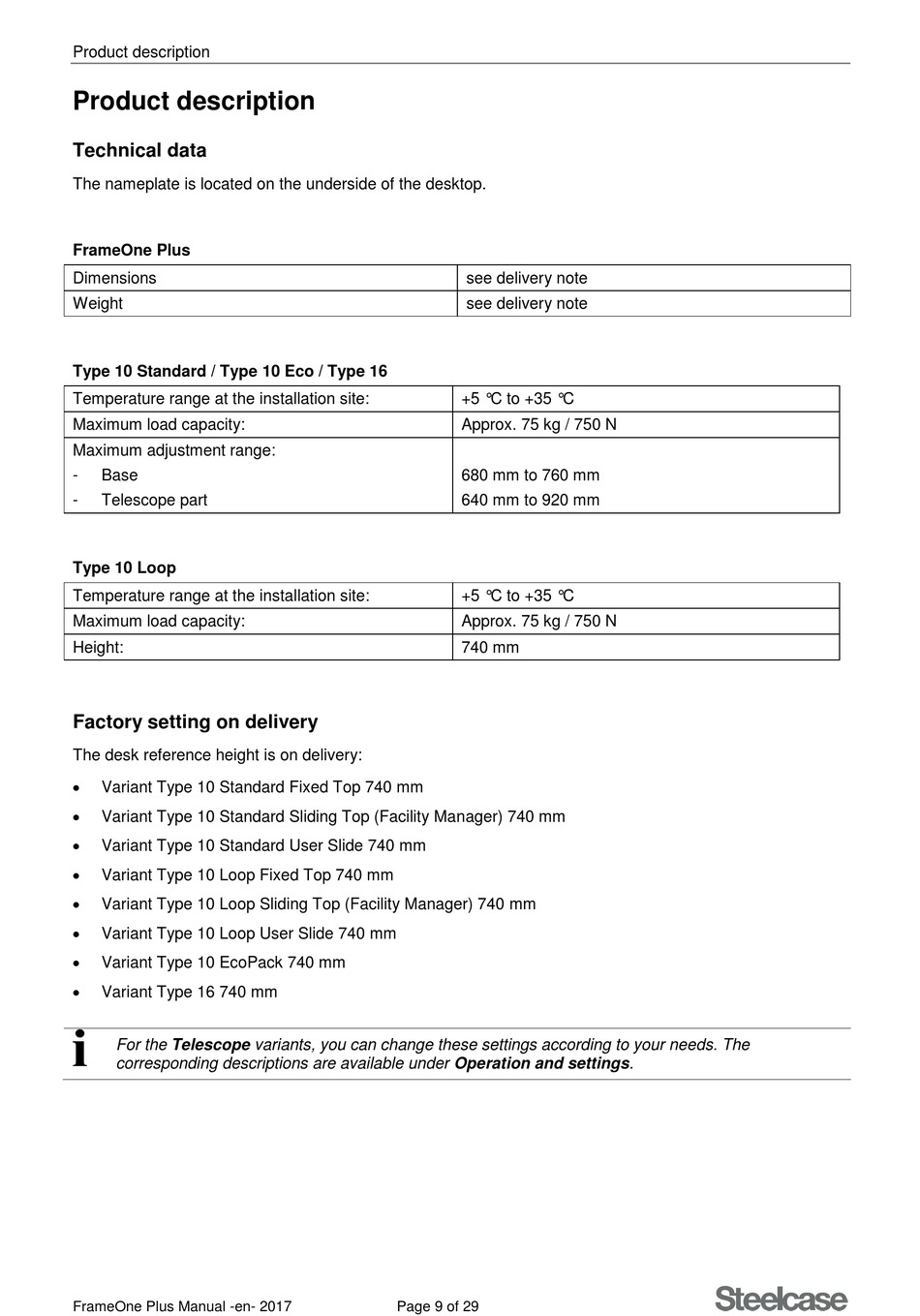

Product description

Product description

Technical data

The nameplate is located on the underside of the desktop.
FrameOne Plus
Dimensions
Weight
Type 10 Standard / Type 10 Eco / Type 16
Temperature range at the installation site:
Maximum load capacity:
Maximum adjustment range:
- Base
- Telescope part
Type 10 Loop
Temperature range at the installation site:
Maximum load capacity:
Height:

Factory setting on delivery

The desk reference height is on delivery:

Variant Type 10 Standard Fixed Top 740 mm

Variant Type 10 Standard Sliding Top (Facility Manager) 740 mm

Variant Type 10 Standard User Slide 740 mm

Variant Type 10 Loop Fixed Top 740 mm

Variant Type 10 Loop Sliding Top (Facility Manager) 740 mm

Variant Type 10 Loop User Slide 740 mm

Variant Type 10 EcoPack 740 mm

Variant Type 16 740 mm
For the Telescope variants, you can change these settings according to your needs. The
corresponding descriptions are available under Operation and settings.
FrameOne Plus Manual -en- 2017
see delivery note
see delivery note
+5 °C to +35 °C
Approx. 75 kg / 750 N
680 mm to 760 mm
640 mm to 920 mm
+5 °C to +35 °C
Approx. 75 kg / 750 N
740 mm
