Assembly instruction for the replacement of the FlipTop Twin
gearbox + locking disc
1

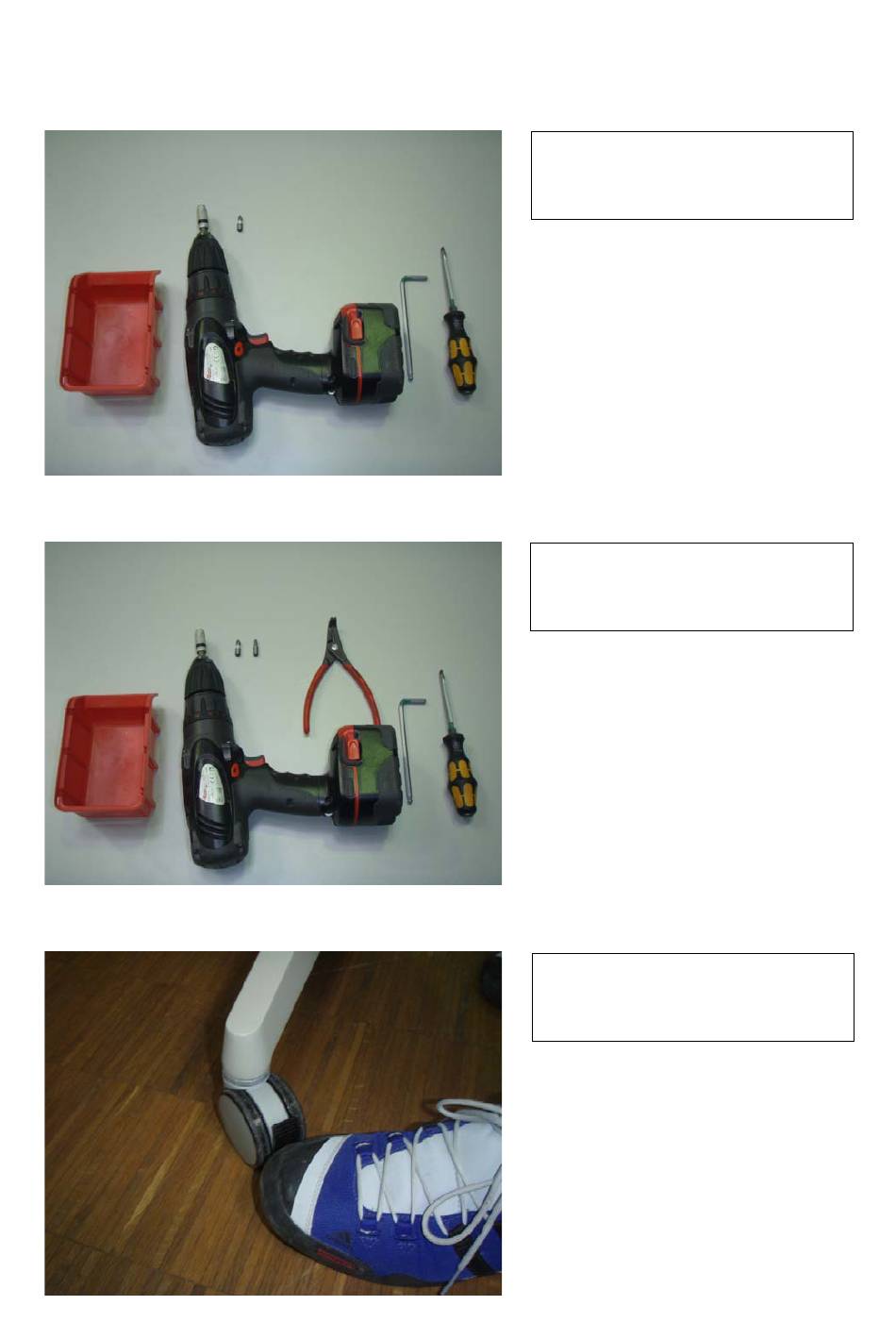

1. Required tools for replacing the
gearbox.
2. Required tools for replacing the
gearbox + locking disc inside.
3. Make sure that the parking brake
is activated.
