Model: RA0716

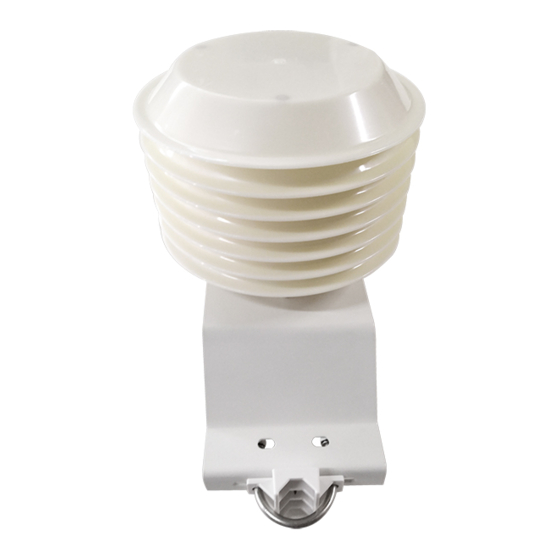

Wireless PM2.5/Temperature/Humidity Sensor
Date: 2021.05.12
Version: Customized V0.1
Wireless PM2.5 / Temperature /
Humidity Sensor
User Manual
Copyright© Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RA0716 and is the answer not in the manual?

Questions and answers

Related Manuals for netvox RA0716

Summary of Contents for netvox RA0716

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ....................2 2. Appearance ....................3 3. Main Feature ....................3 4. Set up Instruction ..................3 5. Data Report ....................5 6. Installation ....................7 7. Important Maintenance Instruction ............8...

  • Page 3: Introduction

    RA0716 is a Class A device based on the LoRaWAN protocol of Netvox and is compatible with the LoRaWAN protocol. RA0716 can be connected with the sensor of the temperature and humidity and PM2.5. The values collected by the sensor are reported to the corresponding gateway.

  • Page 4: Appearance

     Adopt SX1276 wireless communication module 4. Set up Instruction On/Off Power On RA0716 is connected to DC 12V adapter for power on. Turn On Connect with power on to turn on Restore to Factory Setting Press and hold the function key for 5 seconds, and the green indicator flashes 20 times.
  • Page 5 10.5 V Threshold Restore to Factory Setting RA0716 has the function of the power-down saving the memory of network-joining information. This function acquiesces in turn off, that is, it will rejoin every time when it is power on. If the device is turned on by the...

  • Page 6: Data Report

    (6) It would take 35 seconds for the sensor to sample and process the collected value after pressing the button, please be patient. The device reported data parsing please refer to Netvox LoraWAN Application Command document and Netvox Lora Command Resolver...
  • Page 7 Reserved 0x82 ReportRsp (2bytes Unit: s) (2bytes Unit: s) (5Bytes, Fixed 0x00) （1） Configure RA0716 device parameter MinTime = 30s, MaxTime = 900s Downlink: 0135001E03840000000000 Device Return: 8135000000000000000000 (configuration success) 8135010000000000000000 (configuration failure) *Note: The value of MinTime should be ≥ 30s (US915, AU915, KR920, AS923, IN865) The value of MinTime should be ≥...

  • Page 8: Installation

    6. Installation 1． RA0716 adopts screws to secure the unit to a wall or other surface (as the figure below). Note: Do not install the device in a metal shielded box or in an environment with other electrical equipment around it to avoid affecting the wireless transmission of the device.

  • Page 9: Important Maintenance Instruction

    7. Important Maintenance Instruction The device is a product with superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty service effectively. • Keep the equipment dry. Rain, moisture and various liquids or water may contain minerals that can corrode electronic circuits.
