netvox RA0716 User Manual

Wireless pm2.5 / temperature / humidity sensor
Hide thumbs Also See for RA0716:
Table of Contents

Advertisement

Quick Links

Download this manual
RA0716_R72616_RA0716Y
Wireless PM2.5/Temperature/Humidity Sensor
Wireless PM2.5 / Temperature /
Humidity Sensor
User Manual
Copyright© Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict
confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The
specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RA0716 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for netvox RA0716

Summary of Contents for netvox RA0716

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ..................2 2. Appearance ..................3 3. Features .................... 4 4. Setup Instructions ................4 5. Data Report ..................6 5.1 Example of ReportDataCmd ............6 5.2 Example of Report Configuration ..........9 5.3 Example of GlobalCalibrateCmd ..........10 5.4 Set/GetSensorAlarmThresholdCmd .........

  • Page 3: Introduction

    1. Introduction RA0716_R72616_RA0716Y is a Class A type device based on the LoRaWAN open protocol of Netvox and is compatible with the LoRaWAN protocol. RA0716_R72616_RA0716Y can be connected with the sensor of the temperature and humidity and PM2.5. The values collected by the sensor are reported to the corresponding gateway.

  • Page 4: Appearance

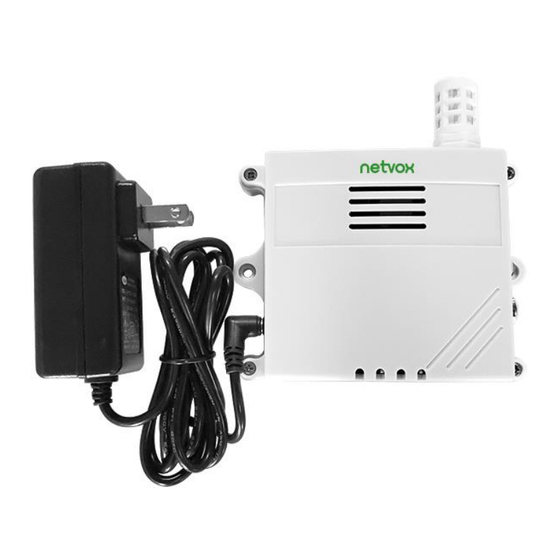

    2. Appearance RA0716 Temperature & Humidity sensor Indicator Function Key Built-in PM2.5 sensor R72616 Waterproof cover Built-in battery pack Built-in PM2.5, Temperature & Humidity sensor Solar panel RA0716Y Built-in PM2.5, Temperature & Humidity sensor Power Cable...

  • Page 5: Features

    ⚫ PM2.5, temperature and humidity detection ⚫ SX1276 wireless communication module 4. Setup Instructions On/Off RA0716 and RA0716Y are connected to DC 12V adapter. Power On R72616 applies solar power and rechargeable lithium batteries. Turn On Connect with power to turn on.
  • Page 6 Function Key Factory Reset / Turn off Press and Hold for 5 Seconds The green indicator flashes 20 times: Success The green indicator remains off: Fail The device is in the network: the green indicator flashes once and the device sends a data report Press Once The device is not in the network: the green indicator remains off...

  • Page 7: Data Report

    (5) It would take 35 seconds for the sensor to sample and process the collected value after pressing the button. Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver http://cmddoc.netvoxcloud.com/cmddoc to resolve uplink data.
  • Page 8 Reserved Battery 0x01 (Signed 2 bytes, (2 bytes, (2 bytes, (1 byte, (1 byte, unit:0.1V) unit: 0.01°C) unit: 0.01%) unit: 1ug/m fixed 0x00) RA0716 0x35 ThresholdAlarm (7 bytes, R72616 0x36 Bit0_LowPM2.5Alarm (ug/m3), RA0716Y 0x37 Bit1_HighPM2.5Alarm (ug/m3), Battery Bit36_LowTemperatureAlarm, 0x12 (1 byte, unit:0.1V)
  • Page 9 Example of Uplink1: 013501000AB61196000700 1st byte (01): Version 2nd byte (35): DeviceType — RA0716 3rd byte (01): ReportType 4th byte (00): Battery — 0V (DC power supply) 5th–6th byte (0AB6): Temperature — 27.42℃ 0AB6 (HEX) = 2742 (DEC), 2742* 0.01℃ = 27.42℃...

  • Page 10: Example Of Report Configuration

    0x82 ReportRsp (2 bytes, Unit: s) (2 bytes, Unit: s) (5 bytes, Fixed 0x00) (1) Configure RA0716 device parameter MinTime = 30s, MaxTime = 120s Response: 8135000000000000000000 (configuration success) 8135010000000000000000 (configuration failure) (2) Read RA0716 device parameter Downlink: 0235000000000000000000 Response: 8235001E00780000000000 (device current parameter) Note: a.

  • Page 11: Example Of Globalcalibratecmd

    5.3 Example of GlobalCalibrateCmd Fport: 0x0E Description SensorType PayLoad (Fix = 9 bytes) Channel Multiplier Divisor DeltValue Reserved (1 byte) SetGlobal 0x01 (2 bytes, (2 bytes, (2 bytes, (2 bytes, CalibrateReq 0_Channel1 Unsigned) Unsigned) Signed) Fixed 0x00) 1_Channel2, etc. Channel Status 0x01_Temperature (1 byte)
  • Page 12 (3) SetGlobalCalibrateReq Temperature decreased by 10℃ (25.1℃ → 15.1℃) Multiplier =0x0001, Divisor = 0x0001, and DeltValue = 0xFC18 Downlink: 01010000010001FC180000 Response: 8101000000000000000000 (4) GetGlobalCalibrateReq Downlink: 0201000000000000000000 Response: 82010000010001FC180000 (5) ClearGlobalCalibrateReq Downlink: 0300000000000000000000 Response: 8300000000000000000000...

  • Page 13: Set/Getsensoralarmthresholdcmd

    5.4 Set/GetSensorAlarmThresholdCmd Fport: 0x10 CmdID CmdDescriptor Payload (10 bytes) (1 byte) SensorType (1 byte, Channel (1 byte, 0x00_Disable ALL SensorHighThreshold SensorLowThreshold SetSensorAlarm 0x00_Channel1, 0x01 SensorthresholdSet, (4 bytes, (4 bytes, ThresholdReq 0x01_Chanel2, unit: ℃; %; ug/m unit: ℃; %; ug/m 0x01_Temperature, 0x02_Channel3, etc.) 0x02_Humidity, 0x06_PM2.5)
  • Page 14 (2) GetSensorAlarmThresholdReq Downlink: 0200010000000000000000 Response: 82000100000BB8000003E8 (3) Clear all thresholds (Set SensorType = 0) Downlink: 0100000000000000000000 Response: 8100000000000000000000 Note: a. The last configuration would be kept as the device is factory reset. b. Set SensorHigh/LowThreshold as 0xFFFFFFFF to disable threshold.

  • Page 15: Example Of Netvoxlorawanrejoin

    5.5 Example of NetvoxLoRaWANRejoin (NetvoxLoRaWANRejoin command is to check if the device is still in the network. If the device is disconnected, it will automatically rejoin back to the network.) Fport: 0x20 CmdID CmdDescriptor Payload (5 bytes) (1 byte) RejoinCheckPeriod (4 bytes, Unit: 1s SetNetvoxLoRaWANRejoinReq 0x01...

  • Page 16: Installation

    6. Installation 1． RA0716 does not have the waterproof function. After the device completes joining the network, please place it properly. 2． R72616 has a waterproof function. After the device completes joining the network, please place it outdoors. (1) In the installed position, loosen the U-shaped screw, the mating washer and the nut at the bottom of R72616, and then make the U-shaped screw pass through the appropriate size cylinder and fix it on the fixing strut flap of R72616.
  • Page 17 Fig. Rechargeable Lithium Battery 3．RA0716Y is waterproof and can be placed outdoors after the device completes joining the network.. (1) In the installed position, loosen the U-shaped screw, the mating washer and the nut at the bottom of RA0716Y, and then make the U-shaped screw pass through the appropriate size cylinder and fix it on the fixing strut flap of RA0716Y.

  • Page 18: Important Maintenance Instructions

    7. Important Maintenance Instructions Kindly pay attention to the following to achieve the best maintenance of the product: • Keep the device dry. Rain, moisture, or any liquid might contain minerals and thus corrode electronic circuits. If the device gets wet, please dry it completely. •...
