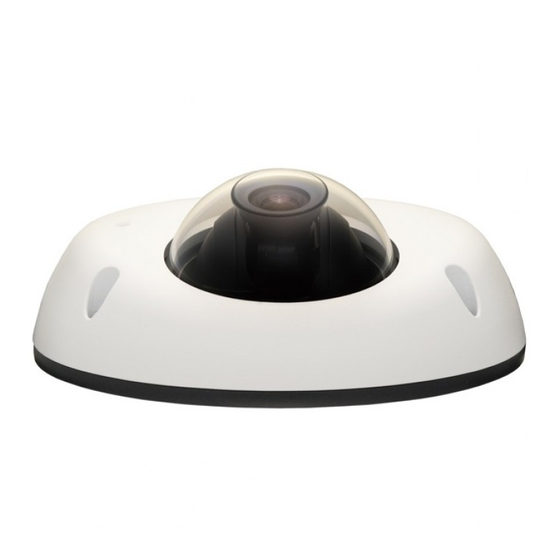

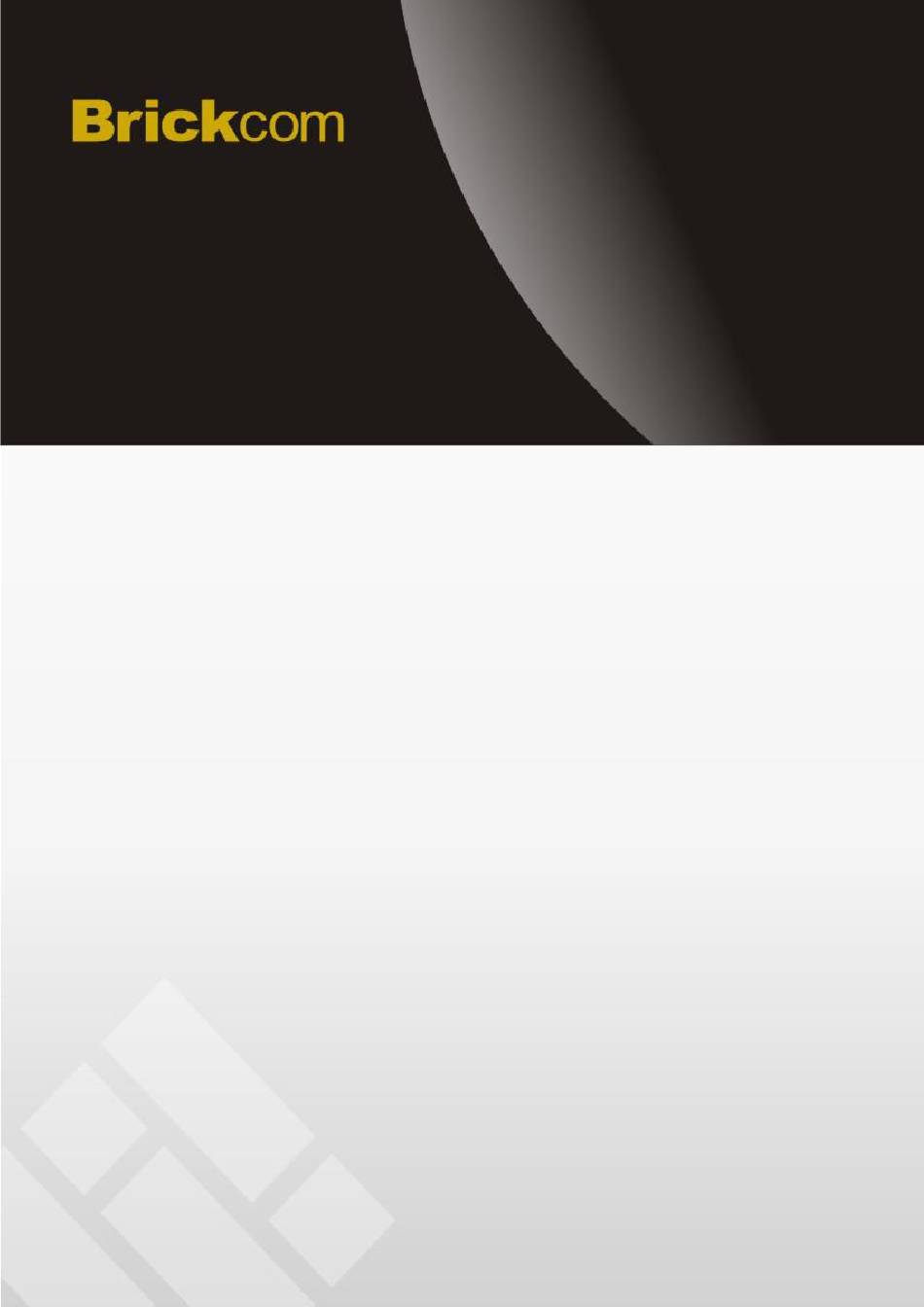

- Page 1 Outdoor Megapixel Mini Dome Network Camera MD-100A Series Quick Installation Guide Quality Service Group...
- Page 2 Read Before You Use 1. Power off the camera device immediately if it starts smoking or smells unusual. 2. Power off the camera device immediately if the camera is exposed to rain or liquid. 3. Do not set the camera device near any heat sources.
- Page 3 6. Do not set the camera device in any wet and humid environments. 7. Do not set the camera device on unsteady surfaces. 8. Do not attempt to dismantle the camera device. 9. Do not drop or hit the camera device. 10.
- Page 4 1. Check Package Contents a. MD-100A b. Product CD c. Water-Proof Connector d. Allen Key e. Warranty Card f. Screw Bags g. Dry Bag / Double-Sided Tape h. Alignment Sticker i. Easy Installation Guide j. Mounting Adapter...
- Page 5 2. Device Description <Inner View> Screw Hole Lens Hood Screw Hole Lens LED Indicators Reset Button Screw Hole Micro SD/SDHC Card Slot (*) <Outer view> Microphone Hole (*) Security Screws (*) These are optional features. Please refer to the Product List for the full list of optional features that are available for this product.
- Page 6 3. Hardware Installation WARNING: Do not mount the camera on a soft material. The camera may fall and be damaged. 1. Use the enclosed Allen key to detach the dome cover from the camera device. 2. Remove the dry bag from its package. Use the double-sided tape to stick the dry bag onto the designate position inside of the dome cover.
- Page 7 5. Hammer the three plastic anchors provided in the product package into the three location holes. 6. The user needs the three screws which are included in the product package and a screwdriver. Mount the camera on the wall or ceiling and position the three screw slots over the plastic anchors.
- Page 8 4. Camera Connection 1. Connect the camera to a PoE-enabled hub via a single Ethernet. 2. Connect the camera to a non-PoE hub using a PoE Injector.
- Page 9 5. Lens Adjustment 1. Adjust the lens to the desired position. 2. Focus a. Loosen the lens lock screw. b. Remove the lens hood. c. Rotate the lens until the image in the Live View page is focused. d. Retighten the lens screw lock. e.
- Page 10 1. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box. Click <Install>...
- Page 11 2. To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual.
- Page 12 If Custom Setup type was used in the software installation and an EasyConfig icon was not installed on the desktop, the program will be installed under C:\Program Files\Brickcom\EasyConfig unless the program was saved to a preferred directory. 1. Click <Start> to continue. The program will automatically search for the camera in the intranet.
- Page 14 2. Select either “Simple Mode” or “Professional Mode” to obtain the camera’s IP settings. If “Simple Mode” is selected, EasyConfig will set up the connection automatically. If “Professional Mode” is selected, the user will need to configure the IP settings manually. 3.
- Page 15 4. Enter the username and password of the camera. For first time use, the default username and password are “admin/admin.” 5. For configuring the IP address settings, select either <Settings remain the same>, <Automatically obtain an IP Address (DHCP)> or <Set IP Address configuration manually>. The DHCP setting is recommended.
- Page 16 a. If <Set IP Address configuration manually> is selected, the following pages will be displayed.
- Page 17 *If desired, click <Skip> to skip this setting. EasyLink is a unique Brickcom function which allows users to assign a unique domain name to their network camera’s IP address. There is no need to configure the router to open up ports or remember hard-to-memorize IP addresses.
- Page 18 7. When the IP address settings have been configured, the screen will either display a successful or failed connection message. If the connection failed, either try again or quit the installation. a. If “DHCP IP address settings” was selected, the failure page will be displayed as below: b.
- Page 19 c. If the connection was successful, the user will see the message: “Congratulations. The installation of the camera is complete.” When this window is displayed, click <PC-NVR> to start the PC-NVR program, <Live View> to view the live video from the connected IP camera, or <X>...
