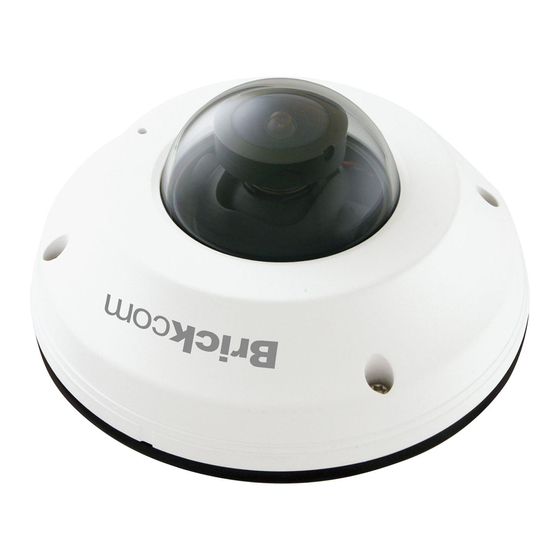

- Page 1 Easy Installation Guide Megapixel Day & Night Mini Dome Network Camera MD-500Ap & MD-300N Series - 1 -...
-
Page 2: Package Contents
Package Contents Step 1.Please check to make sure that the product package contains all the accessories listed below. a. MD-500A Series/ MD-300Np Series b. Product CD c. Adjusting Lens Tool d. Allen Key e. Warranty Card f. Screw Bags(2pcs) g. Dry Bag / Double-Sided Tape h. - Page 3 Step 2. Hardware Installation WARNING: Do not mount the camera on a soft material. The camera may fall and be damaged. Use the enclosed Allen key to detach the dome cover from the camera device. As remove the cover, please be aware of the Microphone Line. 1.
- Page 4 3. Drill three holes through the center of the three location holes on the sticker. 4. Hammer the three plastic anchors which are provided in the product package into the three location holes. 5. Please use the “Waterproof Tape” to wrap around the RJ45 connector, DC12V connector, USB connector (*), in order to prevent water to seep in to the connectors.
- Page 5 please use the three screws which are included in the 7. If you use the Mounting Adapter, product package and a screwdriver. Mount the camera on the wall or ceiling and position the three screw slots over the plastic anchors. Insert the screws into the holes and use the screwdriver to tighten the screws clockwise until they are secure.
- Page 6 Step 3.Camera Connection The New Mini Dome Series is DC12V and PoE compliant, so there are two options for connecting the camera to a power and Ethernet source. The camera can either be connected to a PoE-enabled switch or a non-PoE switch. a.
-
Page 7: Complete The Installation
c. If using the DC12V for the power Supply. The RJ45 cable will be data transmission. Complete the Installation Place the dome cover back on the camera device using the Allen Key. Step 4.Install the EasyConfig Software Insert the CD into the CD-ROM, and follow the instructions of the InstallShield Wizard to finish installation.
