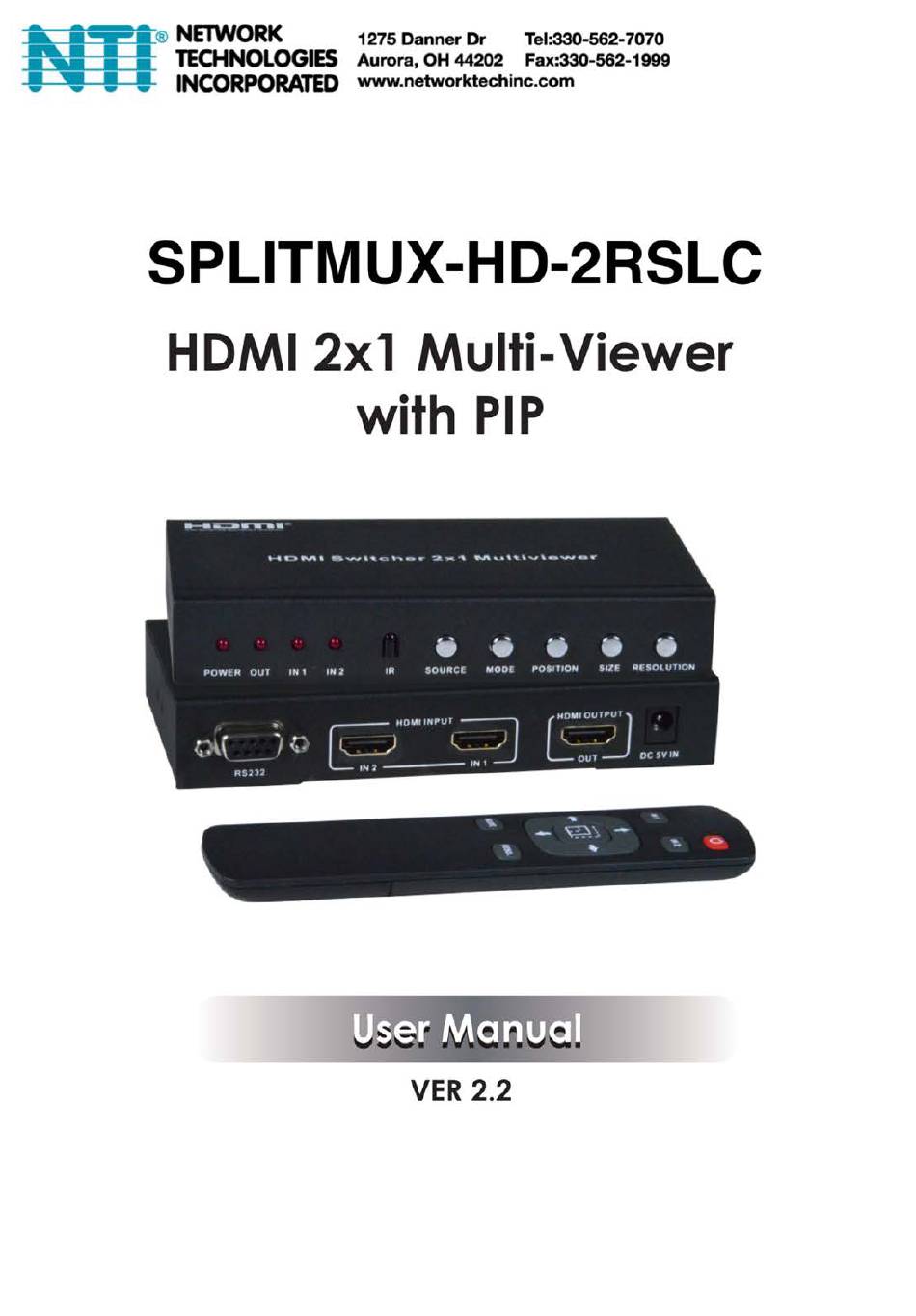

- Page 1 NETWORK 1275 Danner Tel:330-562-7070 TECHNOLOGIES Aurora, 01-144202 Fax:330-562-1999 INCORPORATED www.networktechinc.com SPLITMUX-HD-2RSLC HDMI Multi-Viewer with posrnoe RESOLUT'ON sounce gooe POWER RS232 Ypr Manual VER 2.2...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions care- fully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shook, lighting strikes, etc.
- Page 3 1. Introduction This product is a high performance 2 by 1 Multi-Viewer. It supports two High definition input sources displayed on one screen. As a Multi-Viewer, can display on one screen in 4 modes. 2. Features Compliant with HDMI 1.3a, HDCP 1.2. Supports multiplexed HDMI 2-input and I-output and 4 display modes.
- Page 4 4. Specifications Technical Video Bandwidth 225MHz[6.75Gbps] Input Ports 2xHDMl Type A [19-pin female] Output Ports lxHDMl Type A [19-pin female] Audio output PCM2, 5.1, 7. ICH, Dolby 5.1, DTS5.1 50/60Hz, 1080i50/60Hz, 1080p24/30/50/60Hz, Input Resolution Output Resolution 1080p, 720p, Human body model—±8kV (Air-gap discharge) & Protection ±4kV (Contact discharge) Mechanical...
- Page 5 5. Operation Controls and Functions 5.1 Front panel POWER IN 2, SOURCE MODE POSITION SIZE RESOLUTION Function description Number Name This red LED illuminates when the device is con- POWER nected with power supply. OUTPUT This red LED illuminates when the TV plug is in corresponding HDMI output Port.
- Page 6 5.2 Rear panel RS232 IN 2 5V IN Number Function description Name Connect to computer via RS232 tool, and control RS232 via host-computer software. These slots are where you connect the HDMI HDMI INI/lN2 source output from DVD, PS3. This slot is where you connect the HDTV or HDMI OUTPUT monitor...
- Page 7 6. Remote control 1. POWER: Press this button to power ON the matrix or set it to Standby mode. 2. IN 1: Press this button to select input 1 as main image, and the INI LED will indicate. 3. IN2: Press this button to select input 2 as main image, and the IN2 LED will indicate.
- Page 8 7. Application Example Power Supply POWER sougcz vooc POSITION RESOLUTION HOV. HDMI DVD or Blu-ray Player DVD or Blu-ray Player HDMI 8. RS232 Control To Control the Multi-viewer using the RS232 application, first connect the serial cable provided between the RS232 port and a serial port on a PC. Then run the RS232 application (can be downloaded from our website), select the COM port the viewer is connected to, press the "Connect"...
