DeviceNet Slave Communication Module IFD9502
Note
The changed setting of communication mode is only valid when IFD9502 is re-powered. When
IFD9502 is operating, changing the setting of communication mode will be invalid.
3. Setting up baud rate
PIN 8
Reserved
Note:
The changed setting of the baud rate of DeviceNet is only valid when IFD9502 is re-powered. When
IFD9502 is operating, changing the baud rate will be invalid.

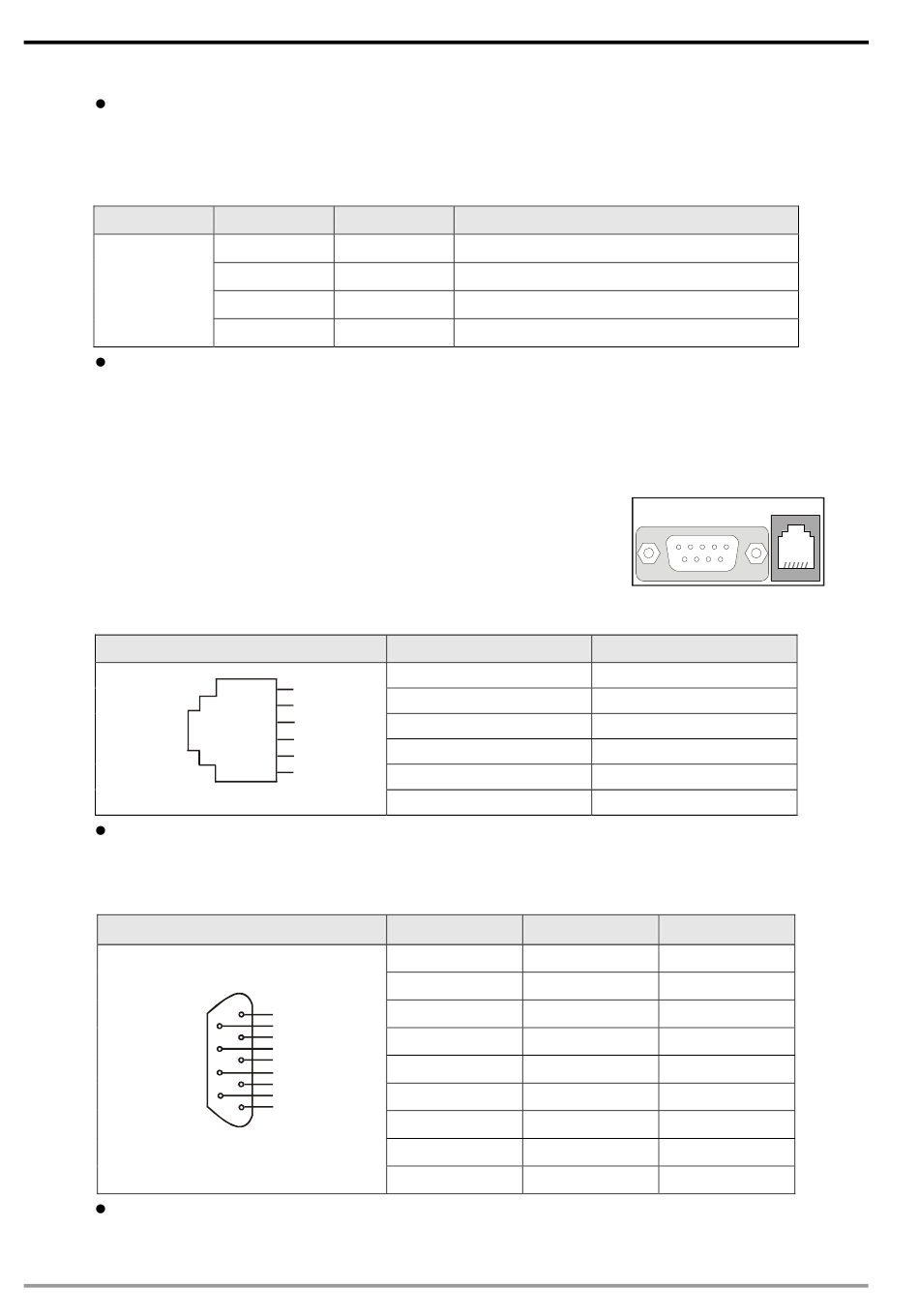

2.5 Communication ports on IFD9502

The communication ports on IFD9502 are used for the connection with
the equipment (Delta programmable logic controller, Delta AC motor
drive, Delta temperature controller, Delta servo drive, Delta human
machine interface and custom equipment).
1. PORT 1 PIN definition
PORT 1 sketch
Note:
PORT 1 supports RS-485 communication only.
2. PORT 2 PIN definition
PORT 2 sketch
Note
PORT 2 supports RS-232 and RS-485 communication only.
6
PIN 7 PIN 6
Off
Off
On
On
6
5
4
3
2
1
PORT1
1
6
2
7
3
8
4
9
5
DB9 male
Baud rate of slave device
Off
On
Off
On Auto baud rate detection
PIN
1
2
3
4
5
6
PIN
1
2
3
4
5
6
7
8
9
125k bps
250k bps
500k bps
PORT2
Description
N.C.
GND
DATA-
DATA+
N.C.
N.C.
RS-232 RS-485
N.C. N.C.
RXD N.C.
TXD DATA-
N.C. N.C.
GND N.C.
N.C. N.C.
N.C. N.C.
N.C. DATA+
N.C. N.C.
