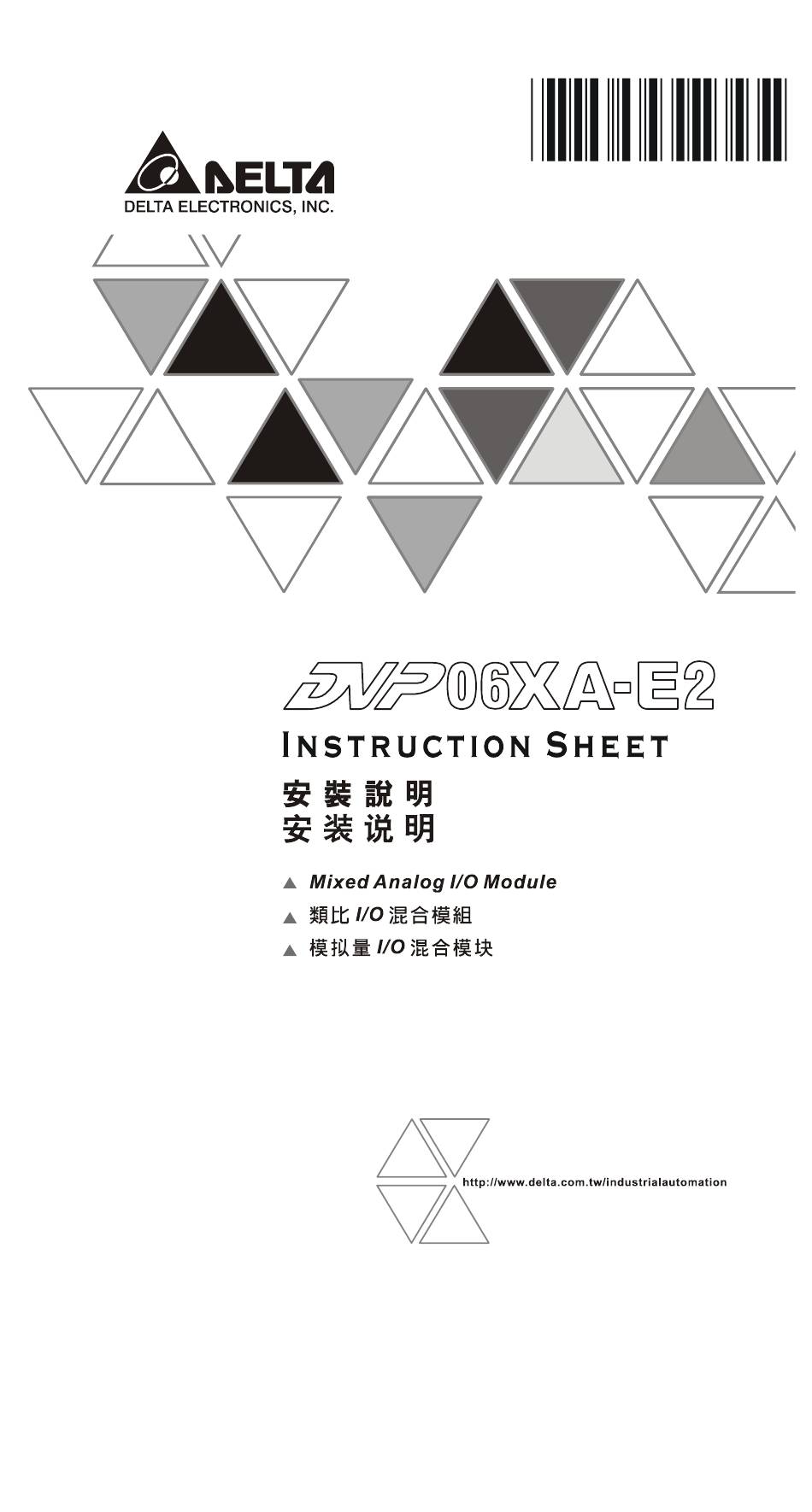

Delta Electronics DVP06XA-E2 Instruction Sheet
Delta Electronics DVP06XA-E2 Instruction Sheet

Delta Electronics DVP06XA-E2 Instruction Sheet

Mixed analog i/o module

Advertisement

2010-04-22
5011687001-E2X1
DVP-1130430-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVP06XA-E2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Delta Electronics DVP06XA-E2

  • Page 1 2010-04-22 5011687001-E2X1 DVP-1130430-02...
  • Page 2: External Wiring

    4 points of analog input signals (voltage or current) and converts them into 16-bit digital signals. For the analog signal output, DVP06XA-E2 receives 2 groups of 16-bit digital data coming from the PLC MPU and converts the digital data into 2 points of analog output signals (voltage or current).
  • Page 3: Electrical Specifications

    I/O Terminal Layout VI1- VI2- VI3- VI4- DVP06XA-E2 (4AI/2AO) Electrical Specifications DVP06XA-E2 Power supply voltage 24VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%) Max. rated power 2.5W, supplied by external power source...
  • Page 4: Functions Specifications

    DVP06XA-E2 Operation: 0°C~55°C (temp.), 50~95% (humidity), Pollution degree2 Operation/storage Storage: -25°C~70°C (temp.), 5~95% (humidity) Vibration/shock International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ immunity IEC61131-2 & IEC 68-2-27 (TEST Ea) The modules are numbered from 0 to 7 automatically by their Series connection to distance from MPU.
  • Page 5: Control Register

    Attrib. Register name Explanation Set up by the system: Model name DVP06XA-E2 model code = H’00C4 Firmware version Display the current firmware version in hex. Input mode: Default = H’0000. Take CH1 for O R/W CH1 Input mode setting example: Mode 0 (H’0000):Voltage input (±10V)
  • Page 6 When DVP-ES2 MPU is connected with modules, registers D9900~D9999 will be reserved for storing values from modules. You can apply MOV instruction to operate values in D9900~D9999. When DVP-ES2 MPU is connected with DVP06XA-E2, the configuration of special registers is as below: Module...
  • Page 7 When the sampling range is set to K1, the values displayed in D9900 ~ D9999 are current values. You can use: 1. ES_AIO Configuration Function of WPLSoft or 2. FROM/TO instructions (CR#8~CR#11) to set the sampling range as K1. Adjust A/D Conversion Curve Users can adjust the conversion curves according to the actual needs by changing the Offset value (CR#28 ~ CR#31) and Gain value (CR#34 ~ CR#37).
  • Page 8 Mode 2 of CR#2 ~ CR#5 0 ~ +10V, Gain = 5V (16,000), Offset = 0V (0) Mode 3 of CR#2 ~ CR#5 0 ~ +5V, Gain = 2.5V (16,000), Offset = 0V (0) Range of digital conversion (Max./Min.) 0 ~ +32,000 (-384 ~ +32,384) Mode 4: +32384 +32000...
  • Page 9 × − ⎡ ⎤ ⎛ ⎞ 19200 6400 × 6400 ⎜ ⎟ ⎢ ⎣ ⎥ ⎦ 16000 ⎝ 32000 ⎠ Y=Current output, X=Digital input mode 0: Gain Voltage output -32000 +32767 +16000 +32000 -32768 Offset Digital input -10V Mode 0 (CR#2 ~ CR#5) ±10V, Gain = 5V (16,000), Offset = 0V (0) Range of digital conversion (Max./Min.) ±32,000 (-32,768 ~ +32,767) mode 1:...
  • Page 10 ……………………………………………………………… 繁體中文 ………………………………………………………………………… 感謝您採用台達 DVP 系列產品 。 DVP06XA-E2 類比輸入 / 輸出混合模組可接受外部 4 點類 比信號輸入 ( 電壓或電流皆可 ) ,將之轉換成 16 位元之數位信號。類比信號輸出部份接受 來自 PLC 主機的 2 組 16 位元數位資料,再將數位資料轉換為 2 點類比信號輸出 ( 電壓或 電流皆可 ) 。使用者可經由配線選擇電壓輸入或電流輸入,並可透過主機以 FROM / TO 指 令來讀寫模組內資料,或以 MOV 指令直接讀取對應通道的平均值,或直接寫入對應通道...
  • Page 11 註 4:類比輸出請與其他電源線隔離。 註 5:如果負載之輸出端漣波太大造成配線受雜訊干擾時,請連接 0.1~0.47μF 25V 之電容。 註 6:請將電源模組之 端及 DVP06XA 類比信號輸出模組之 端連接到系統接地點,再將 系統接點作第三種接地或接到配電箱之機殼上。 輸入∕輸出端子台配置 請參閱英文版頁碼 2 之端子配置圖,在此語言版本省略說明。 電氣規格 DVP06XA-E2 24VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%) 電源電壓 2.5W,由外部電源供應。 額定最大消耗功率 脫落式歐式端子座 (端點距離:5mm) 連接方式 操作:0°C ~ 55°C(溫度) ,50 ~ 95%(濕度)污染等級 2 操作⁄儲存環境...
  • Page 12 -6,400 ~ +32,767 14 bits 14 bits 14 bits 硬體解析度 最大輸出電流 - 1KΩ ~ 2MΩ 0 ~ 500Ω 容許負載阻抗 5Ω 或更低 輸出阻抗 電壓輸出有短路保護但須注意長時間短路仍有可能造成內部線路損壞, 保護 電流輸出可開路。 控制暫存器 CR 屬性 暫存器名稱 說明 系統內定,DVP06XA-E2 機種代碼 = H’00C4 機種型號 16 進制,顯示目前韌體版本 韌體版本 - 11 -...
  • Page 13 屬性 暫存器名稱 說明 輸出模式設定:出廠設定值 H’0000。以 CH1 說明 O R/W CH1 輸入模式設定 模式 0 (H’0000):電壓輸入 (±10V) 模式 1 (H’0001):電壓輸入 (±5V) O R/W CH2 輸入模式設定 模式 2 (H’0002):電壓輸入 (0 ~ +10V) 模式 3 (H’0003):電壓輸入 (0 ~ +5V) O R/W CH3 輸入模式設定 模式 4 (H’0004):電流輸入 (±20mA) 模式...
  • Page 14 DVP-ES2 主機連接特殊 I/O 模組時,暫存器 D9900 ~ D9999 將被佔用,使用者可利用 MOV 指令在程式中指定 D9900 ~ D9999 來運算。 DVP-ES2 主機連接 DVP06XA-E2 時,特殊暫存器的分配如下: 第 1 台 第 2 台 第 3 台 第 4 台 第 5 台 第 6 台 第 7 台 第 8 台...
  • Page 15 由上列模式 4 /模式 5 之公式推算,將 Gain = 12mA (19,200) , Offset = 4mA (6,400) 帶入公式。 模式 0 /模式 1 : 模式 0 (CR#2 ~ CR#5) ±10V,Gain = 5V (16,000),Offset = 0V (0) 模式 1 (CR#2 ~ CR#5) ±5V,Gain = 2.5V (16,000),Offset = 0V (0) 數位資料範圍...
  • Page 16 ………………………………………………………………… 简体中文 …………………………………………………………………… 感谢您采用台达 DVP 系列产品。 DVP06XA-E2 模拟量输入 / 输出混合模块可接受外部 4 点模拟量信号输入 ( 电压或电流皆可 ) ,将之转换成 16 位之数字量信号。模拟量信号输出 部份接受来自 PLC 主机的 2 组 16 位数字量数据, 再将数字量数据转换为 2 点模拟量信号 输出 ( 电压或电流皆可 ) 。使用者可经由配线选择电压输入或电流输入,并可透过主机以 FROM / TO 指令来读写模块内数据,或者以 MOV 指令直接读取对应通道平均值,或直接 写入对应通道的输出值 ( 请参阅 D9900 ~ D9999 特殊寄存器使用说明 ) 。...
  • Page 17 輸入∕輸出端子台配置 请参阅英文版页码 2 之端子配置图,在此语言版本省略说明。 電氣規格 DVP06XA-E2 24VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%) 电源电压 2.5W,由外部电源供应。 额定最大消耗功率 脱落式欧式端子座 (端点距离:5mm) 连接方式 操作:0°C ~ 55°C(温度) ,50 ~ 95%(湿度)污染等级 2 操作∕储存环境 储存:-25°C ~ 70°C(温度) ,5 ~ 95%(湿度) 国际标准规范 IEC61131-2,IEC 68-2-6 (TEST Fc) / IEC61131-2 &...
  • Page 18 5Ω 或更低 输出阻抗 电压输出有短路保护但须注意长时间短路仍有可能造成内部线路损 保护 坏,电流输出可开路。 控制寄存器 CR 属性 寄存器名称 说明 系统内定,DVP06XA-E2 机种代码 = H’00C4 机种型号 16 进制,显示目前韧体版本 韧体版本 输出模式设定:出厂设定值 H’0000。以 CH1 说明 O R/W CH1 输入模式设定 模式 0 (H’0000):电压输入 (±10V) 模式 1 (H’0001):电压输入 (±5V) O R/W CH2 输入模式设定 模式 2 (H’0002):电压输入 (0 ~ +10V) 模式...
  • Page 19 DVP-ES2 主机连接特殊 I/O 模块时,寄存器 D9900 ~ D9999 将被占用,使用者可利用 MOV 指令在程序中指定 D9900 ~ D9999 来运算。 DVP-ES2 主机连接 DVP06XA-E2 时,特殊寄存器的分配如下: 第 1 台 第 2 台 第 3 台 第 4 台 第 5 台 第 6 台 第 7 台 第 8 台...
  • Page 20 电压输入模式 0 /模式 2 公式: 0.3125mV = 20V/64,000 = 10V/32,000 电压输入模式 1 /模式 3 公式: 0.15625mV = 10V/64,000 = 5V/32,000 电流输入模式 4 /模式 5 公式: 0.625μA = 40mA/64,000 = 20mA/32,000 电流输入模式 6 公式: 0.5μA = 16mA/32,000 由上列电流输入模式 4 / 模式 5 之公式推算 , 将 Gain = 12mA (19,200), Offset = 4mA (6,400) 带入公式。...
