Quad AV Adapting Unit
Notes on the Assembly Instructions.
As well as this supplementary Assembly
Instructions, the Assembly Instructions for the
KAB 3000 apply.
DCT DELTA GmbH
Bodanrückstraße 1
D-78351 Bodman
KAB 3000 Basis Unit
Phone:
Fax:
Email:
Internet:
KAD 340
+49 (0) 7773 / 936331
+49 (0) 7773 / 929259
info@dct-delta.de
http://www.dct-delta.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KAD 340 and is the answer not in the manual?

Questions and answers

Summary of Contents for Delta Electronics KAD 340

  • Page 1 KAB 3000 Basis Unit Quad AV Adapting Unit KAD 340 Notes on the Assembly Instructions. As well as this supplementary Assembly Instructions, the Assembly Instructions for the KAB 3000 apply. DCT DELTA GmbH Phone: +49 (0) 7773 / 936331 Bodanrückstraße 1...
  • Page 2 Description ..................5 3 Installation ......................5 Installing the module ................5 Connecting the module ............... 6 4 Settings ......................6 Audio level regulator ................6 Programming the modulator module ............. 7 5 Final procedures ....................7 - 2 - KAD 340...
  • Page 3 I n f o r m a t I o n 2.1 s c o p e d e l I v e ry 1 Quad AV Adapting Unit KAD 340 1 AV cable 1 Brief Assembly Instructions 1 CD (assembly instructions)
  • Page 4 Impedance: .................. 47 kΩ Audio level: ................0.5 V Video Impedance: ..................75 Ω Video level:..................1 V Connections: Audio input: ..............8 cinch sockets Video input: ..............4 cinch sockets AV output: ................26-pin socket - 4 - KAD 340...

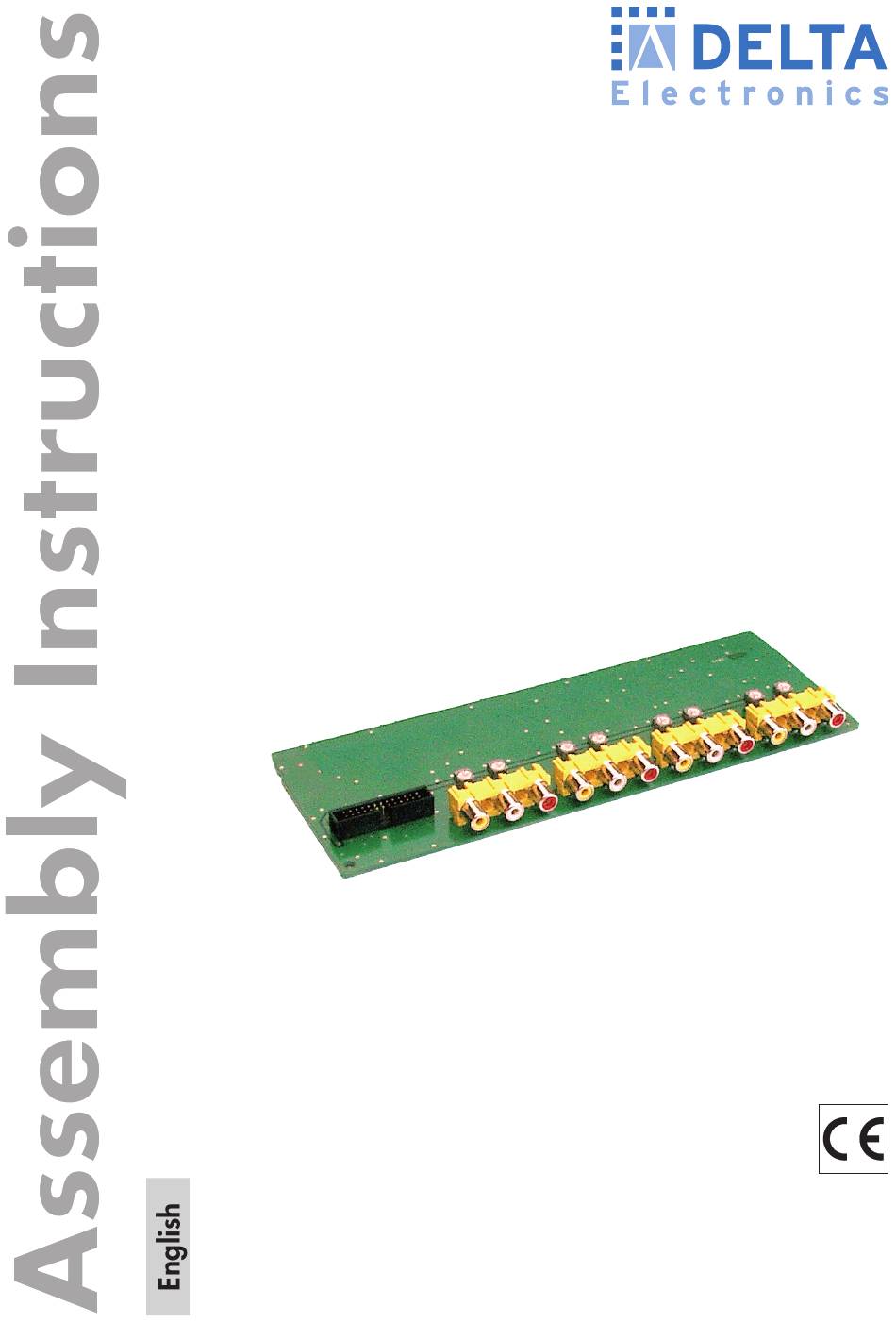

  • Page 5 2.4 d es c r I p t I o n The Quad AV Adapting Unit KAD 340 is designed for feeding audio and video signals into the modulator modules KMM 341 and KMS 342. The audio signals that have been fed in reach the AV interface via the audio sockets (red = right-hand channel, white = left-hand channel / mono) as well as the downstream level regulator.
  • Page 6 • If necessary, adjust the audio input level to the requirements using the level controllers (factory setting: centre position). Level control channel strip ”A“ Audio right Audio left (mono) Level control channel strip ”B“ Level control channel strip ”C“ Level control channel strip ”D“ - 6 - KAD 340...
  • Page 7 • Test the output level of the output collector according to the KAB 3000 as- sembly instructions and set the output level required for the cable system. • Mount the base plate and the front cover (see KAB 3000 assembly instruc- tions). - 7 - KAD 340...
