Connection of IFD9502 with Other Equipment

6.1 Communication Wirings When Connected to Equipment through PORT 1

1. When IFD9502 is connected to Delta VFD series AC motor drive: By RS-485 communication; using
standard cable with RJ-12 connectors is suggested.
2. When IFD9502 is connected to Delta DVP series PLC: By RS-485 communication.
3. When IFD9502 is connected to Delta DTA series temperature controller: By RS-485 communication.
4. When IFD9502 is connected to Delta ASD-A series servo drive: By RS-485 communication.

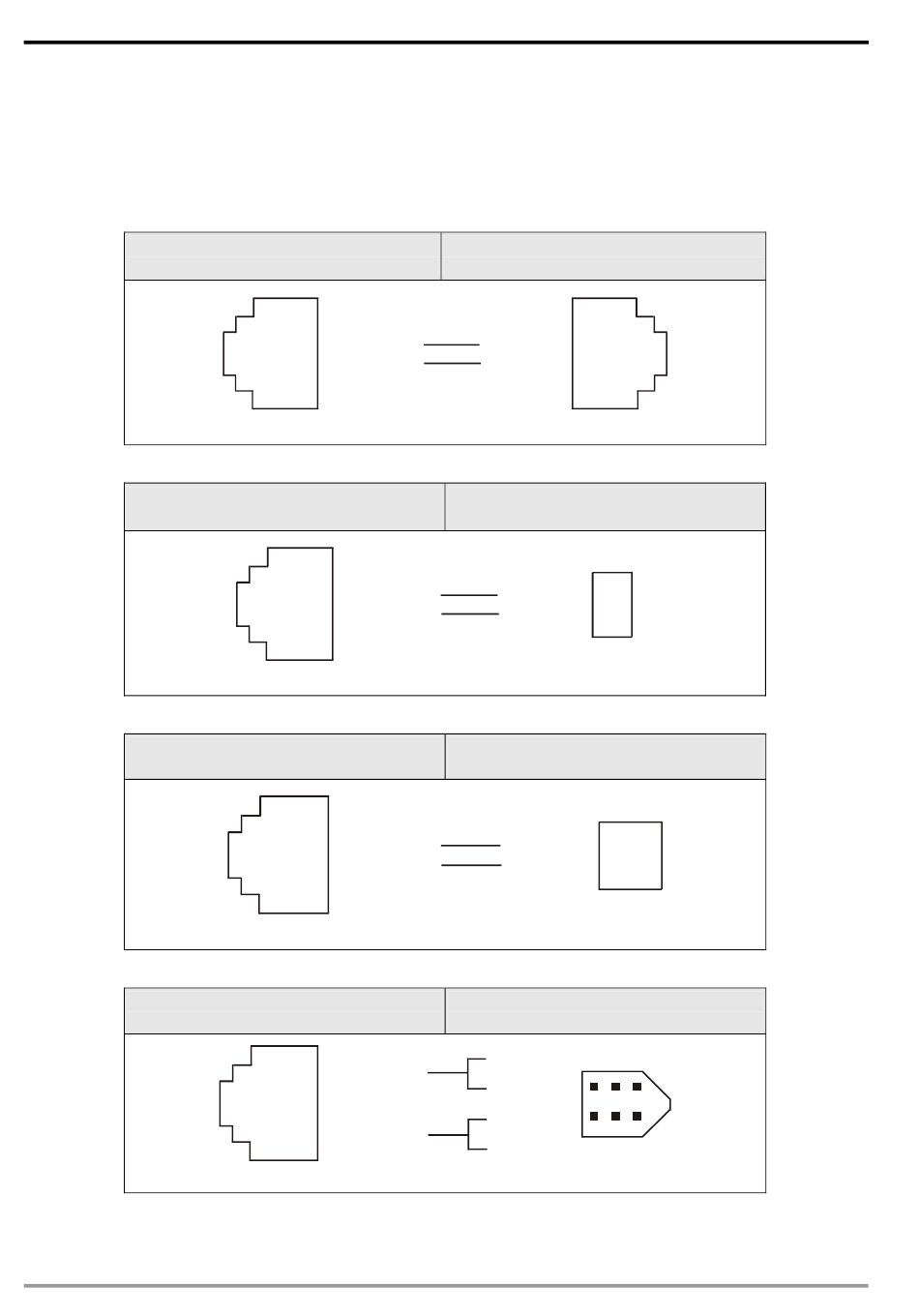

38
IFD9502
RJ-12 (RS-485)
6
5
DATA-
4
DATA+
3
2
1
RJ-12
IFD9502
RJ-12 (RS-485)
6
5
DATA-
4
DATA+
3
2
1
RJ-12
IFD9502
RJ-12 (RS-485)
6
5
DATA-
4
DATA+
3
2
1
RJ-12
IFD9502
RJ-12 (RS-485)
6
DATA+
5
4
3
2
DATA-
1
RJ-12
VFD series AC motor drive
RJ-12 (RS-485)
(3)
(3)
DATA-
(4) (4) DATA+
DVP-PLC
RS-485 wiring terminal
(3)
DATA-
(4) DATA+
PLC COM2
DTA RS-485
wiring terminal
(3)
DATA-
(4) DATA+
CN3 connector (RS-485)
(3) 485+
(4)
(5) 485+
(4) 485-
(3)
(6) 485-
CN3 connector
6
5
4
3
2
1
RJ-12
+
_
DATA+
DATA-
RS-485
ASDA
1 3 5
2 4 6
