Disconnect Front Panel Cables

1. Snap out the ejector arms on the ribbon cable header to release ribbon cable (Figure
9).
2. Squeeze the release latch on the AC power cable to release it from its header (Figure
9).

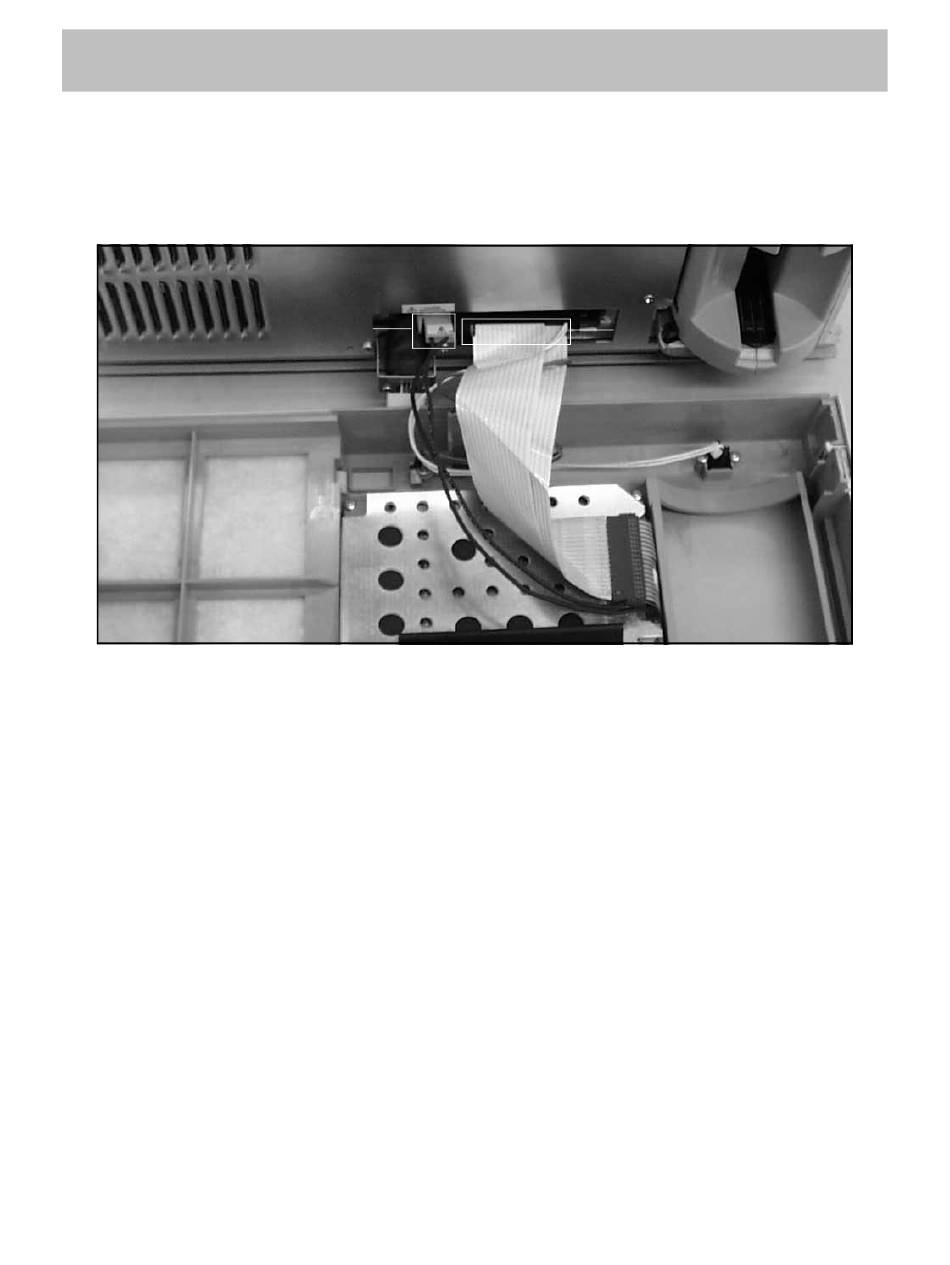

Figure 9 Detach front panel cabling.
AC Power Cable
Ribbon Cable
Spectra 10000 Front Panel Replacement Guide 11
