Receiving and Inspection

Your satisfaction and safety require a complete understanding of this unit,
including its proper function and operational characteristics. Be sure operators are
given adequate training before attempting to put the unit in service.
1. Inspection: The carrier, when accepting shipment, also accept responsibility for safe
delivery and is liable for loss or damage claims. On delivery, inspect for visible exterior
damage, note and describe on the freight bill any damage found and enter your claim on
the form supplied by the carrier.
2. Inspect for concealed loss or damage on the unit itself，If any, the carrier will arrange
for official inspection to substantiate your claim. Save the shipping crate until you are sure
the unit has been delivered in good condition.
3. Return Shipment: If for any reason you must return the unit, contact your customer
service representative for authorization and supply nameplate data.
4. Accessories: Make sure that all of the accessories indicated on the packing list is
included with the unit. Carefully check all packaging before discarding. If there are any
damaged or missing items, please contact your dealer.

Disposal and Recycling Information

The symbol showns to the left indicates that this product shall not be
treated as household waste. In line with EU Directive 2012/19/EU
for waste electrical and electronic equipment (WEEE), this electrical
product must not be disposed of as unsorted municipal waste.
Please dispose of this product by returning it to the point of
sale or to your local municipal collection point for recycling.
2

Installation

1. Control box installation (skip this step for ROL-02U series)
This unit is equipped with a separate control box (optional) Please fasten the nut
on the connection plug of control box to the unit.
NOTE: Keys on the panel of the unit will become invalid when control box is connected.
One control box controls one unit only.
2. Roller bars removal and installation
Roller bars can be removed and installed for different sized tubes.
2.1 Roller bars removal
Turn the knob counterclockwise to be loose on the unit end(see Fig-1) and then lift
the locking metal arm as shown in fig- 2.And remove it. Press the sheet metal to the
original position and clockwise twist the knob for fastening.
2.2 Roller bars installation
Turn the knob counterclockwise to be loose on the unit end (see Fig-1) and then
uplift the pressure sheet-metal. Aim Hexagon Hole of roller at Hexagon shaft of the
unit and press the other head into semicircle orifice. Press the sheet metal to the
knob position and clockwise twist the knob for fastening.

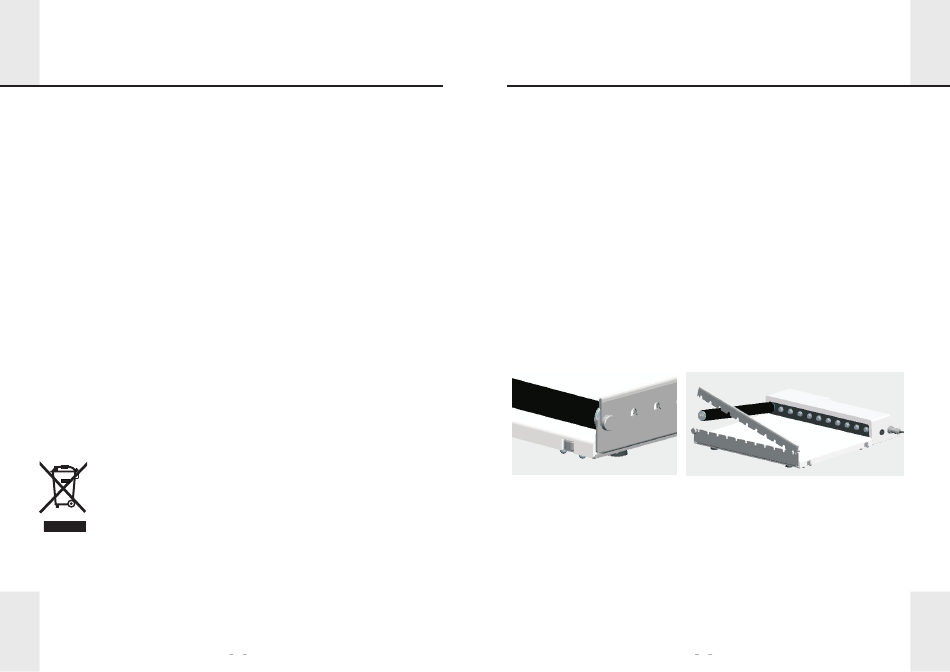

Fig-1
3. Rocking roller bars removing and installation
3.1 Rocking roller bars removing
The way of removing the rocking roller bars is the same as the way of removing the
roller bars.(see 2.1)
3.2 Rocking roller bars installation
Counterclockwise twist the knob to be loose on the unit end(see Fig-1)and then uplift
the pressure sheet-metal. Place the hexagon hole of the roller at the hexagon shaft of the
unit and press the other head into semicircle orifice.After installing the first rocking roller
Mini Roller Manual
.
Fig-2
3
