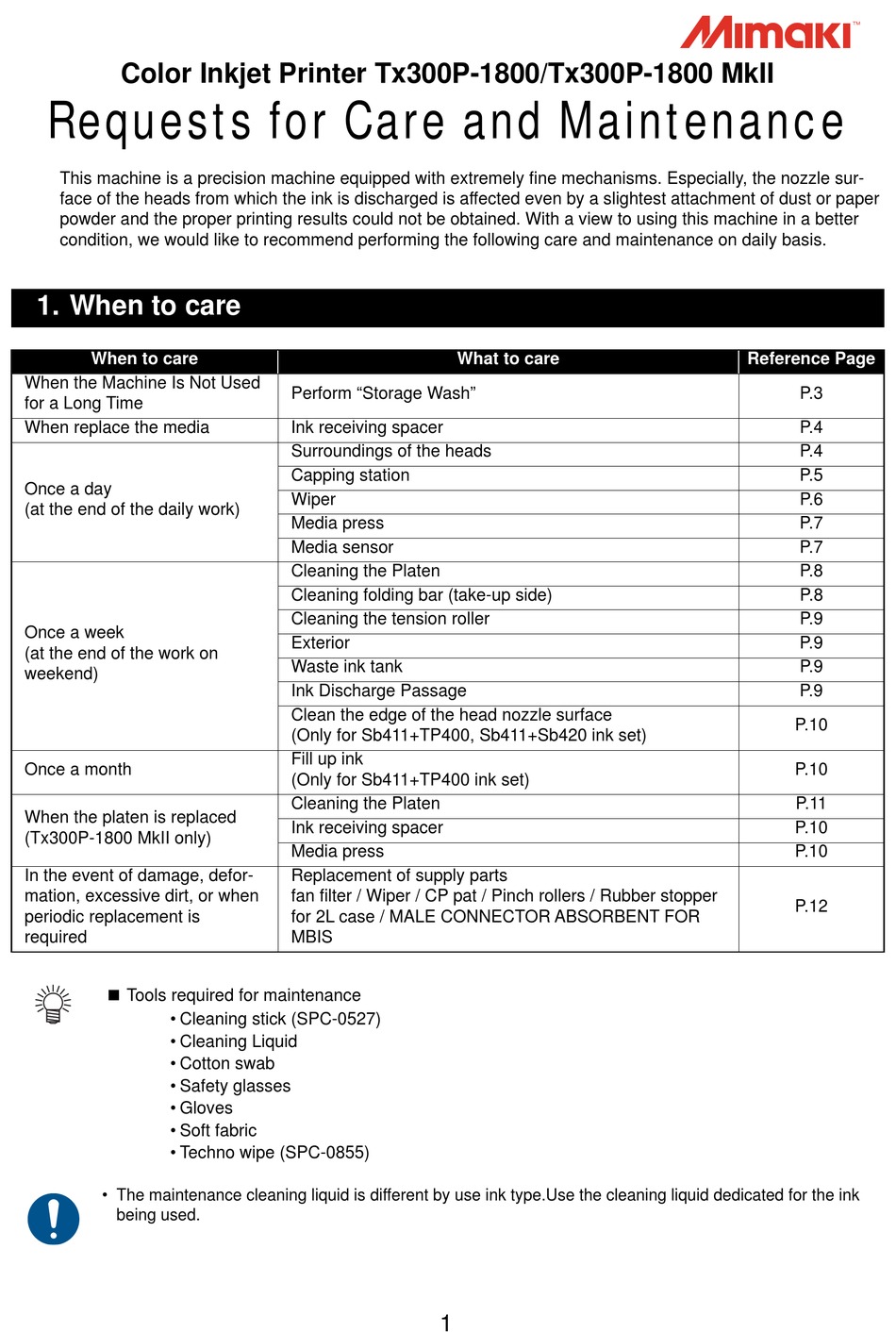

Color Inkjet Printer Tx300P-1800/Tx300P-1800 MkII
Requests for Care and Maintenance
This machine is a precision machine equipped with extremely fine mechanisms. Especially, the nozzle sur-
face of the heads from which the ink is discharged is affected even by a slightest attachment of dust or paper
powder and the proper printing results could not be obtained. With a view to using this machine in a better
condition, we would like to recommend performing the following care and maintenance on daily basis.
1. When to care
When to care
When the Machine Is Not Used
for a Long Time
When replace the media
Once a day
(at the end of the daily work)
Once a week
(at the end of the work on
weekend)
Once a month
When the platen is replaced
(Tx300P-1800 MkII only)
In the event of damage, defor-
mation, excessive dirt, or when
periodic replacement is
required
Tools required for maintenance
• Cleaning stick (SPC-0527)
• Cleaning Liquid
• Cotton swab
• Safety glasses
• Gloves
• Soft fabric
• Techno wipe (SPC-0855)
• The maintenance cleaning liquid is different by use ink type.Use the cleaning liquid dedicated for the ink
being used.
What to care
Perform "Storage Wash"
Ink receiving spacer
Surroundings of the heads
Capping station
Wiper
Media press
Media sensor
Cleaning the Platen
Cleaning folding bar (take-up side)
Cleaning the tension roller
Exterior
Waste ink tank
Ink Discharge Passage
Clean the edge of the head nozzle surface
(Only for Sb411+TP400, Sb411+Sb420 ink set)
Fill up ink
(Only for Sb411+TP400 ink set)
Cleaning the Platen
Ink receiving spacer
Media press
Replacement of supply parts
fan filter / Wiper / CP pat / Pinch rollers / Rubber stopper
for 2L case / MALE CONNECTOR ABSORBENT FOR
MBIS
1
Reference Page
P.3
P.4
P.4
P.5
P.6
P.7
P.7
P.8
P.8
P.9
P.9
P.9
P.9
P.10
P.10
P.11
P.10
P.10
P.12
