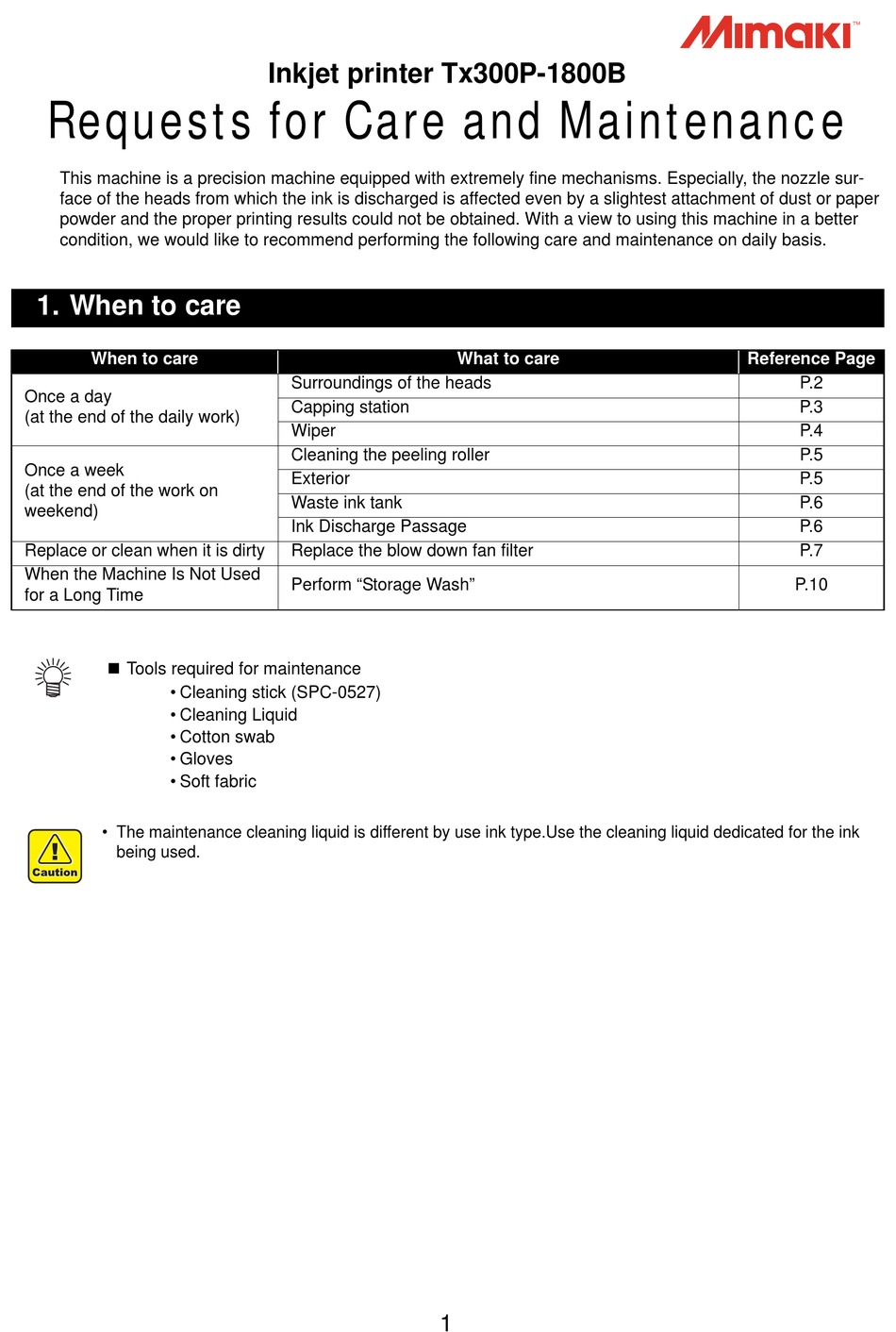

Requests for Care and Maintenance
This machine is a precision machine equipped with extremely fine mechanisms. Especially, the nozzle sur-
face of the heads from which the ink is discharged is affected even by a slightest attachment of dust or paper
powder and the proper printing results could not be obtained. With a view to using this machine in a better
condition, we would like to recommend performing the following care and maintenance on daily basis.
1. When to care
When to care
Once a day
(at the end of the daily work)
Once a week
(at the end of the work on
weekend)
Replace or clean when it is dirty
When the Machine Is Not Used
for a Long Time
Tools required for maintenance
• Cleaning stick (SPC-0527)
• Cleaning Liquid
• Cotton swab
• Gloves
• Soft fabric
• The maintenance cleaning liquid is different by use ink type.Use the cleaning liquid dedicated for the ink
being used.
Inkjet printer Tx300P-1800B
Surroundings of the heads
Capping station
Wiper
Cleaning the peeling roller
Exterior
Waste ink tank
Ink Discharge Passage
Replace the blow down fan filter
Perform "Storage Wash"
What to care
1
Reference Page
P.2
P.3
P.4
P.5
P.5
P.6
P.6
P.7
P.10
Advertisement
Table of Contents
Related Manuals for MIMAKI Tx300P-1800B
Summary of Contents for MIMAKI Tx300P-1800B
- Page 1 Inkjet printer Tx300P-1800B Requests for Care and Maintenance This machine is a precision machine equipped with extremely fine mechanisms. Especially, the nozzle sur- face of the heads from which the ink is discharged is affected even by a slightest attachment of dust or paper powder and the proper printing results could not be obtained.
-
Page 2: Daily Care
2. Daily care • When possible, use the cleaning stick (SPC-0527) for cleaning around the head/ capping station/ wiper. Using the other cotton bud may attach lint, then it may damage the machine. • Be sure to perform maintenance for the ink cap and the wiper of capping station every day. If you leave it dirty, dirt may adhere to the nozzle surface, or, dust and dry ink may be rubbed against the nozzle. - Page 3 Soak the clean stick or the waste cloth in the maintenance cleaning liquid and wipe off an accumulated ink on the side of the head and on the bottom surface of the slider. • Never rub the nozzles. Clean the side surface of the head (shown in deep red) with a clean stick.
- Page 4 (3) Wiper ("Cleaning the Wiper and Cap” Chapter 4 of the Operation Manual) On the wiper, the ink, dust and paper powder are liable to accumulate. Check the state of the wiper and if it is stained, clean it. • Use the cleaning liquid dedicated for the ink being used. Move the carriage and open the right maintenance cover.
-
Page 5: Periodically Care (Once A Week)
(4) Replacing the Water ("Replacing the Water” Chapter 4 of the Operation Manual) It is necessary to replace the water when the feeding belt becomes dirty. Refer to "Replacing the Water" found in Chapter 4 of the Operation Manual before replacing the cleaning unit water. - Page 6 (3) Waste ink tank (“If a Waste Ink Tank Confirmation Message Appears” Chapter 4 of the Operation Manual) Check whether the waste ink tank is full or not. Take care so that the waste ink never overflows the tank. • The waste ink tank on the left does not Waste ink cumulatively count the amount of discharge of such a substance as ink.
- Page 7 4. Replace or clean when it is dirty (1) Replace the blow down fan filter Replace the blow down fan filter (SPA-0774) when it is dirty. Remove the fan filter cover. Push the fan filter cover's tab outward, and pull the cover out toward you. •...
- Page 8 (2) Cleaning the Cleaning Unit Move the cleaning unit. • Refer to Steps 1 to 6 of "Absorb Roller Cleaning" found in Chapter 4 of the Operation Manual before moving the cleaning unit. Clean the wash tray. • Remove any lint or other debris from the wash brush. Return wash unit to standby position.
-
Page 9: Storage Of Media
5. Storage of media Media should be stored in the little dust area, and not in direct sunlight. Avoid storing the media in the area with high temperature and high humidity. 6. Storage of ink pack Be careful of the followings to store. •... -
Page 10: Recovery Method Of Defective Nozzle Discharge
8. Recovery method of defective nozzle discharge When this printer has not been used for an extended period of time, or depending on the environmental tem- perature, the discharge at the nozzles could become unstable. In such a case, the following methods may be taken to recover the status of the nozzles. -
Page 11: Safety Precautions
11. Safety Precautions CAUTION Make sure to wear the attached safety glasses and gloves. If ink should come into your eyes, immediately rinse with plenty of clean water for more than 15 min- utes and rinse thoroughly to the back of the eyelids. Also, please consult a doctor as soon as possible. If ink adheres to the skin, please rinse thoroughly with a large amount of water and soap or skin deter- gent. - Page 12 You can also download the latest manual from our website. 2016 MIMAKI ENGINEERING CO., LTD. D203125-11-28022018 FW :3.30...
