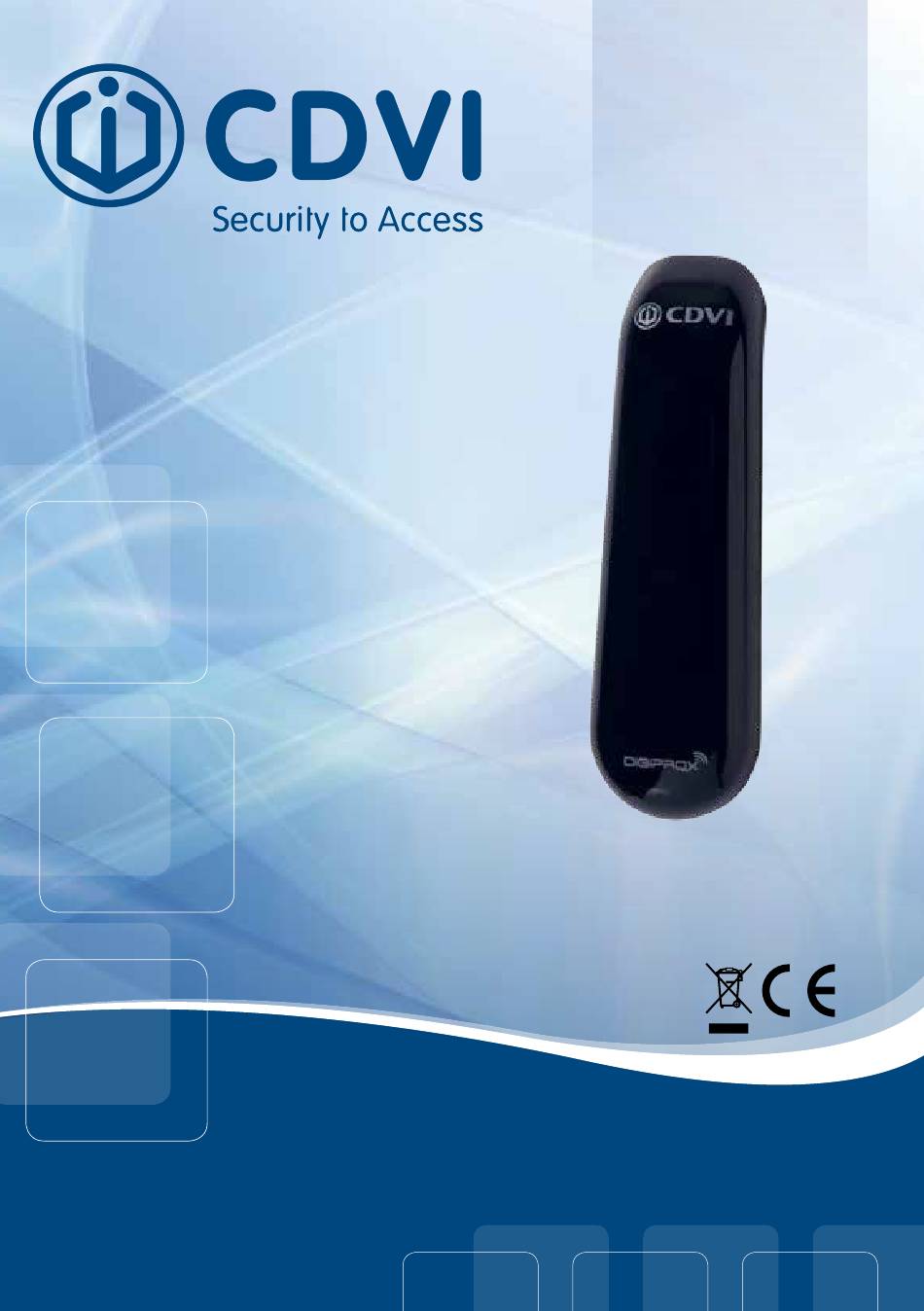

- Page 1 STAR1M Mullion 2 in 1 Mifare Card Reader, ® Stand-Alone or Wiegand output cdvigroup.com...
-
Page 2: Product Presentation
INSTALLATION MANUAL STAR1M - Mullion Mifare card reader ® Thank you for buying our products and for the confidence you placed in our company 1] PRODUCT PRESENTATION - 2-in-1 Mifare® Reader (13.56MHz): 1-Door Stand-Alone access control system or Wiegand output reader mode. - Stand-Alone options: Shadow option: Up to 150 cards or Standard option: Up to 300 cards - Read Mifare... - Page 3 INSTALLATION MANUAL STAR1M - Mullion Mifare card reader ® 4] MOUNTING Fig. a Fig. b Trace the markings to fix the product using Fit the seal on the back plate starting the back casing. Drill the fixing support using from the bottom. (fig. a). The seal must the markings (recommended diameters: Ø5 overlap the back part of the reader by about mm and Ø15 mm).
- Page 4 INSTALLATION MANUAL STAR1M - Mullion Mifare card reader ® 5] READER OPERATING MODE You have two operation modes with the STAR1M. In Stand-Alone mode the STAR1M acts as a 1 door access control system or in Wiegand output mode allows you to connect it to an access control system with a Wiegand input.
-
Page 5: Wire Color
INSTALLATION MANUAL STAR1M - Mullion Mifare card reader ® 6.2 Wiegand Output Wiring Diagram STAR1M wires to access control system reader port inputs Red: 12Vdc Black: 0V Green: Data 0 White: Data 1 Brown: Buzzer Yellow: Green LED Orange: Red LED STAR1M WIEgAND Wire Color... -
Page 6: Led Status
INSTALLATION MANUAL STAR1M - Mullion Mifare card reader ® 6.3 LEDs management on the ATRIUM system green ACCess GrAnted LED status ACCess denied BLUe stAndby RED LED CONFIGURATION GREEN LED CONFIGURATION 6.4 LEDs management on the CENTAUR system green ACCess GRANTeD LED status ACCess DeNieD BLUe... -
Page 7: Standalone Mode
INSTALLATION MANUAL STAR1M - Mullion Mifare card reader ® 7] STAND-ALONE MODE 7.1 Stand-Alone Option Settings You have two options in Stand-Alone mode, "Standard" or "Shadow". Standard option (Up to 300 cards): Only one user badge is programmed for each user. To delete a user from the STAR1M, enter the programming mode and present the user badge. - Page 8 INSTALLATION MANUAL STAR1M - Mullion Mifare card reader ® 7.2 Stand-Alone Wiring Diagram Red wire: 12Vdc 12Vdc Power Grey wire: Common (C) Black wire: 0V Supply Locking Device Options Blue wire: Normally Open (NO) (fail secure locking device) Purple wire: Normally Close (NC) (fail safe locking device) N.O.
- Page 9 INSTALLATION MANUAL STAR1M - Mullion Mifare card reader ® 7.3 Stand-Alone Mode: Standard Option Programming Program or replace the Master badge: 1: Set DIP2 to OFF 2: Present the 3: Set back DIP2 to ON provided red badge (STAR1M beep once & (STAR1M beep once &...
- Page 10 INSTALLATION MANUAL STAR1M - Mullion Mifare card reader ® 7.4 Stand-Alone Mode: Shadow Option Programming Program or replace the Master badge: 1: Set DIP2 to OFF 2: Present the 3: Set back DIP2 to ON provided red badge STAR1M beep once & STAR1M beep once &...
- Page 11 INSTALLATION MANUAL STAR1M - Mullion Mifare card reader ® 7.5 Common Stand-Alone Programming Program the unlock time (Stand-Alone mode): Programmable from 01 to 99 seconds (Default: 5 seconds) 1: Present the 2: Press the connected REX button master badge to start (Each press add 1 second).
- Page 12 Extranet : CDVI_IM STAR1M CMYK A5 FR-EN-04 *G0301FR1031V04* CDVI group FRANCE (Headquarter) Phone: +33 (0)1 48 91 01 02 CDVI FRANCE + EXPORT CDVI IBÉRICA 31, av. du Général Leclerc [SPAIN - PORTUGAL] 93500 PANTIN - France Phone: +34 (0)935 390 966 Phone: +33 (0)1 48 91 01 02 www.cdviberica.com...
