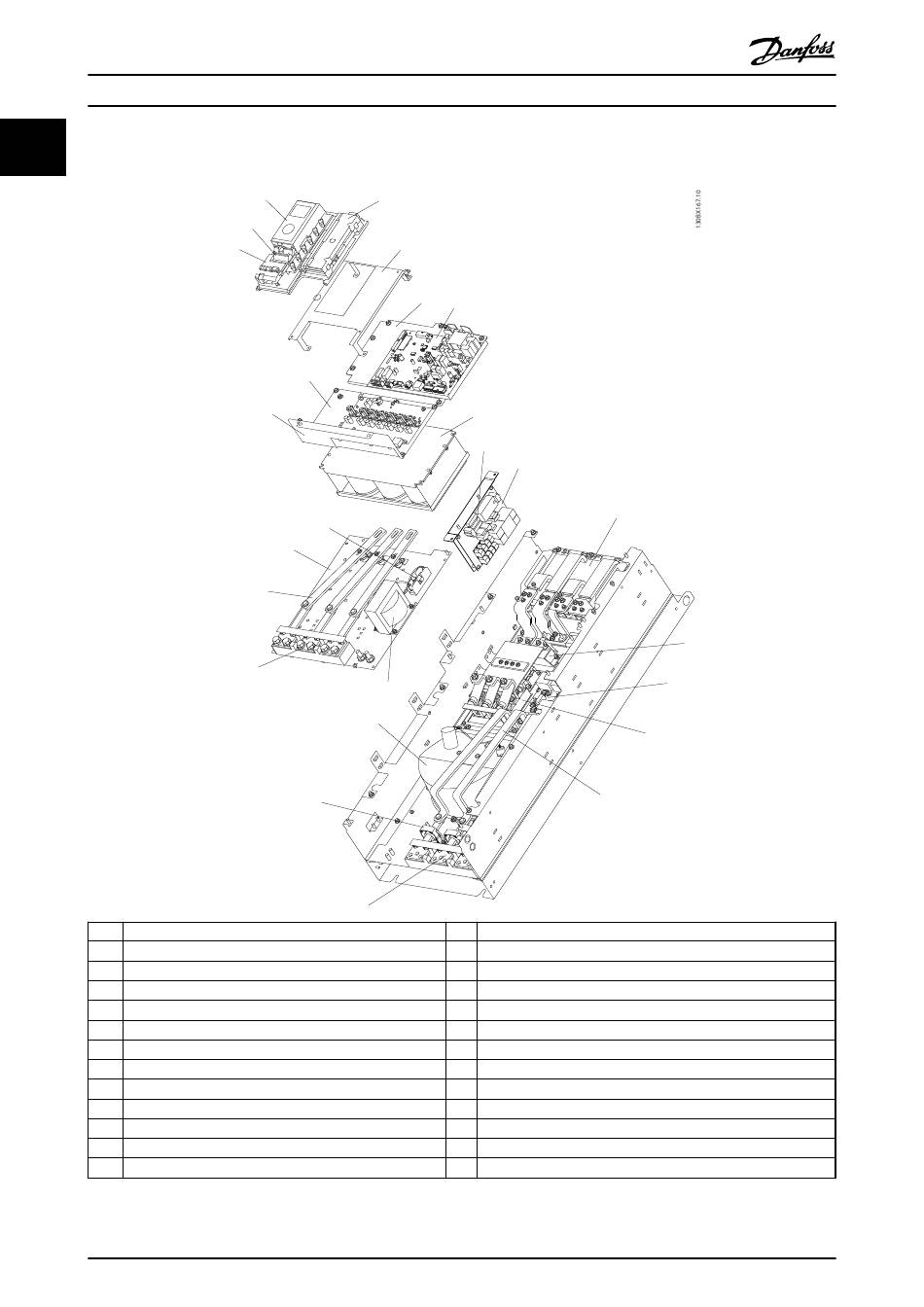

1.3.3 Exploded View Drawings
1
Control card
2
Control input terminals
3
Local control panel (LCP)
4
Control card C option
5
Mounting bracket
6
Power card mounting plate
7
Power card
8
Capacitor bank assembly
9
Soft charge fuses
10
Soft charge card
11
DC inductor
12
Soft charge module
13
IGBT module
Illustration 1.2 Frame Size D13 Drive Enclosure
6
Operating Instructions
3
4
2
1
5
25
24
23
22
21
20
19
18
17
16
Danfoss A/S © Rev. 2014-07-29 All rights reserved.
6
7
8
9
10
14
SCR/diode module
15
IGBT output bus bar
16
Output motor terminals
17
Current sensor
18
Fan assembly
19
Fan transformer
20
AC input terminals
21
AC input bus bar
22
Input terminal mounting plate assembly
23
Fan fuse
24
Capacitor bank cover plate
25
IGBT gate drive card
11
12
13
14
15
