M2 Antenna Systems SYSTEM SAMPLE 3 Assembly Manual page 8

2 axis with l-band feed
Hide thumbs

Advertisement

9
ASSEMBLY MANUAL

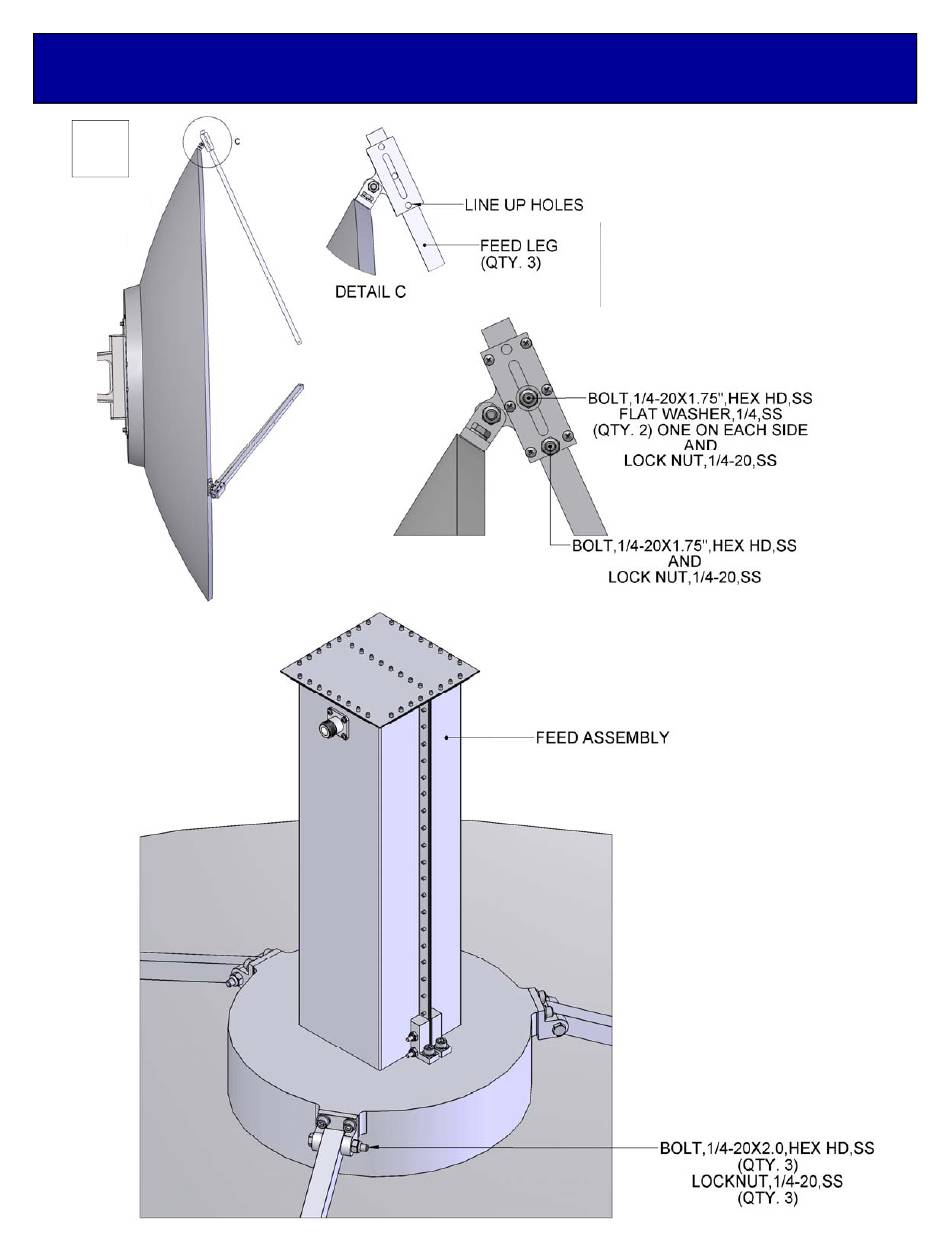

1. Install Dish Feed Legs. Line up
holes as shown in detail C.
2. Secure Dish Feed Legs. Repeat
this step for the other two
remaining legs.
3. Install feed assembly
as shown.
Check all hardware for
tightness and inspect your
work.
